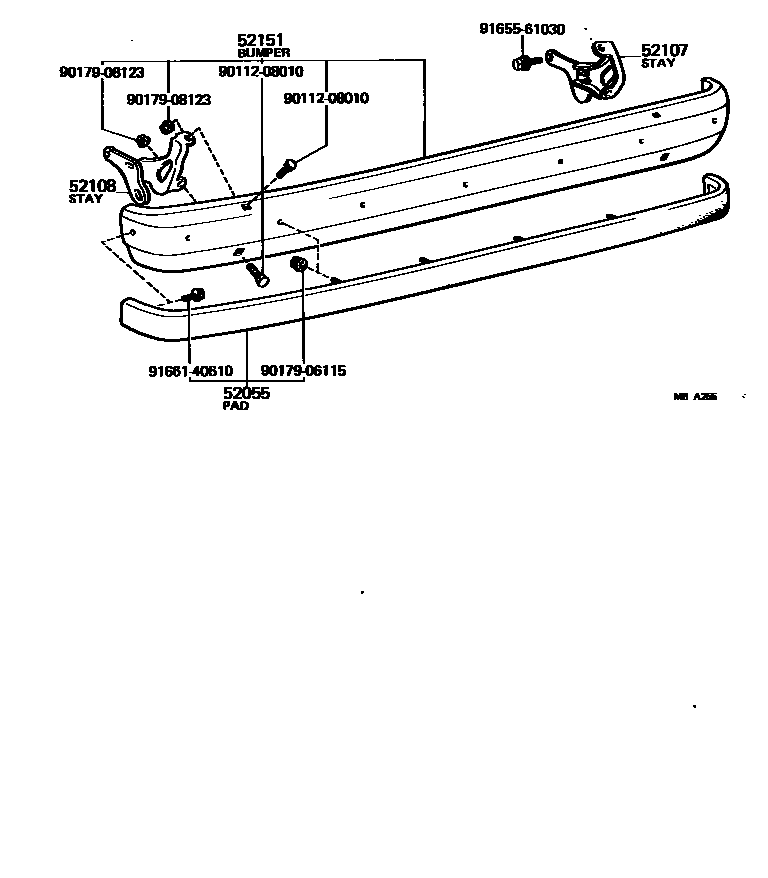

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52055PAD SUB-ASSY, REAR BUMPER

main52055-19045iRA40,TA40..CP197708-197908

main52055-19046iRA40,TA40..CP..(EUR,GEN)197908-198107

main52055-19055iRA40,TA40..LB197708-197908

main52055-19056iRA40,TA40..LB..(EUR,GEN)197908-198107

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-14040iRA40,TA40..CP197708-197908

main52015-14042iRA40,TA40..CP..(EUR,GEN)197908-198107

main52015-14050iRA40,TA40..LB197708-197908

main52015-14052iRA40,TA40..LB..(EUR,GEN)197908-198107

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-14040iRA40,TA40..CP197708-197908

main52016-14042iRA40,TA40..CP..(EUR,GEN)197908-198107

main52016-14050iRA40,TA40..LB197708-197908

main52016-14052iRA40,TA40..LB..(EUR,GEN)197908-198107

52151BUMPER ASSY, REAR

main52151-19405iRA40,TA40..CP197708-197908

sub52151-80002

main52151-19406iRA40,TA40..CP..(EUR,GEN)197908-198107

sub52151-80003

main52151-19425iRA40,TA40..LB197708-197908

sub52151-19875

main52151-19426iRA40,TA40..LB..(EUR,GEN)197908-198107

sub52151-80001

9011208010

main90112-08010

9017906115

main90179-06115

9017908123

main90179-08123

9165561030

main91655-61030

9166140610

main91661-40610

9 parts on this diagram · 4 diagrams in section
