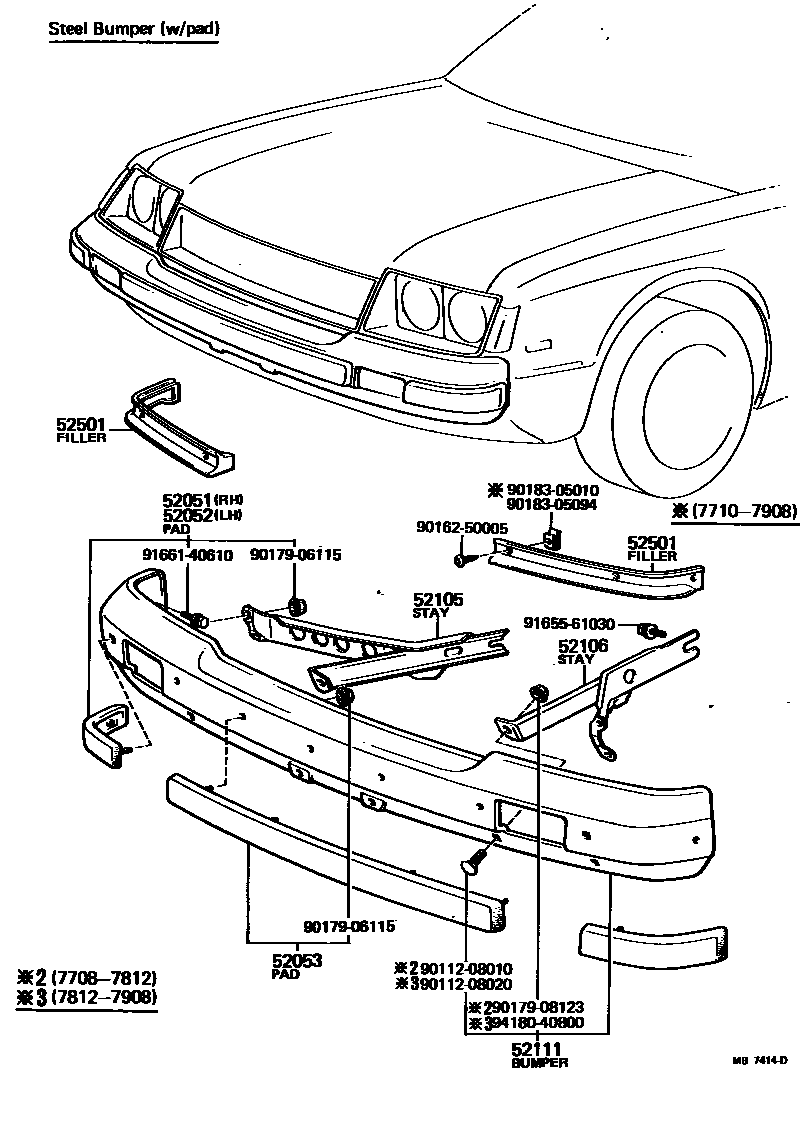

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52051PAD SUB-ASSY, FRONT BUMPER, RH

main52051-19045iRA40,TA40197708-197908

52052PAD SUB-ASSY, FRONT BUMPER, LH

main52052-19045iRA40,TA40197708-197908

52053PAD SUB-ASSY, FRONT BUMPER

main52053-19025iRA40,TA40197708-197908

main52053-19026iRA40,TA40..EUR,GEN197908-198107

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-14100iRA40,TA40197708-197908

main52011-14101iRA40,TA40..EUR,GEN197908-198107

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-14100iRA40,TA40197708-197908

main52012-14101iRA40,TA40..EUR,GEN197908-198107

52111BUMPER ASSY, FRONT

main52111-19325iRA40,TA40..EUG197708-197908

sub52111-19805

main52111-19326iRA40,TA40..EUR,GEN197908-198107

sub52111-19835

main52111-19335iRA40..SDN197708-197908

W/HEADLAMP CLEANER

sub52111-14170

52501FILLER SUB-ASSY, FRONT BUMPER

main52502-14010iRA40,TA40197708-197908

RH

main52502-14020iRA40,TA40..EUR,GEN197711-197901

RH

main52502-14030iRA40,TA40..EUR,GEN197901-197908

RH

main52503-14010iRA40..ARL197708-197908

LH

main52503-14020iRA40,TA40..EUR,GEN197711-197901

LH

main52503-14030iRA40,TA40..EUR,GEN197901-197908

LH

9011208010

main90112-08010

9011208020

main90112-08020

9016250005

main90162-50005

9017906115

main90179-06115

9017908123

main90179-08123

9018305010

main90183-05010

9018305094

main90183-05094

9165561030

main91655-61030

9166140610

main91661-40610

9418040800

main94180-40800

17 parts on this diagram · 3 diagrams in section
