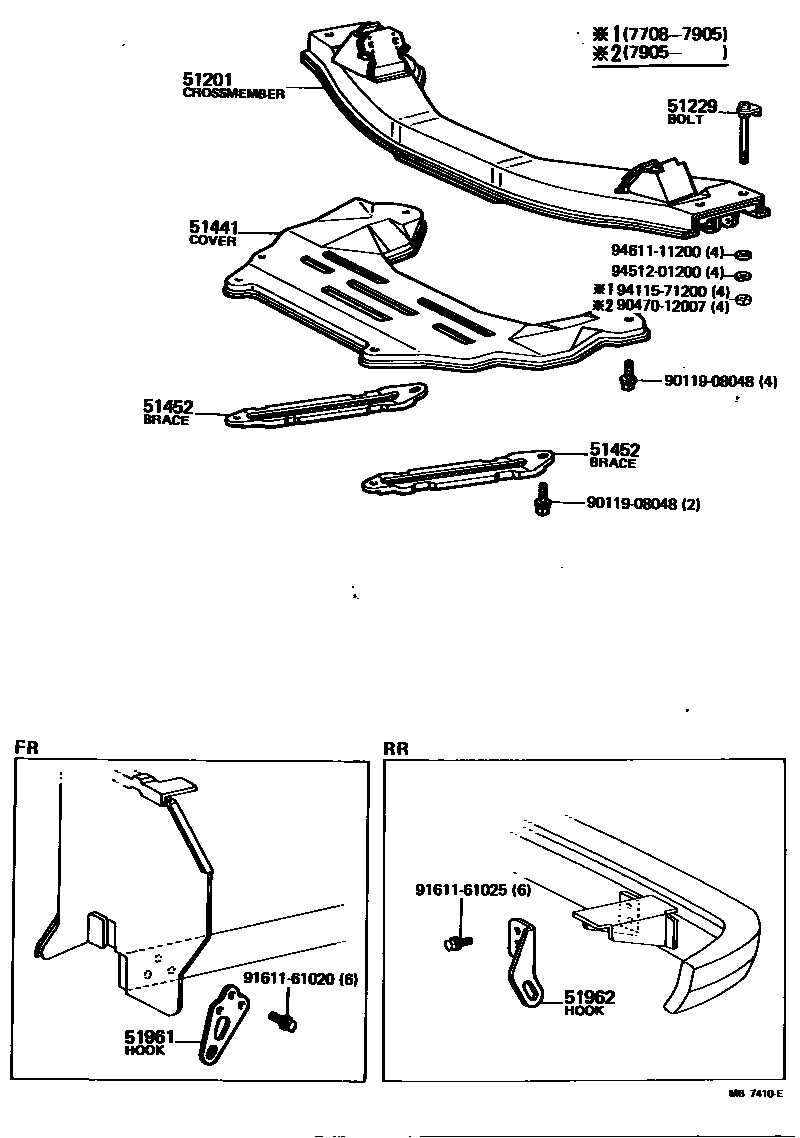

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-14070iRA40197708-197808

sub51201-14100

main51201-14080iTA40197708-198107

sub51201-14081

main51201-14100iRA40197808-198107

51229BOLT, SUSPENSION MEMBER SET

main51296-14010iRA40,TA40197708-197905

7T

main51296-14011iRA40,TA40197905-198107

11T

51441COVER, ENGINE UNDER, NO.1

main51441-14011iTA40197708-197809

sub51441-20060

main51441-14021iRA40197708-198107

main51441-20060iTA40197809-198107

51452BRACE, FRONT CROSSMEMBER TO FRONT SUSPENSION MEMBER

main51452-14011iRA40197708-198107

51961HOOK, NO.1

main51963-14030iRA40,TA40197708-197908

main51963-14050iRA40,TA40197908-198107

51962HOOK, NO.2

main51967-14060iRA40..ARL197908-198107

RH,W/URETHANE BUMPER

main51968-14070iRA40..ARL197908-198107

LH,W/URETHANE BUMPER

9011908048

main90119-08048

9047012007

main90470-12007

9161161020

main91611-61020

9161161025

main91611-61025

9411571200

main94115-71200

9451201200

main94512-01200

9461111200

main94611-11200

13 parts on this diagram · 1 diagram in section
