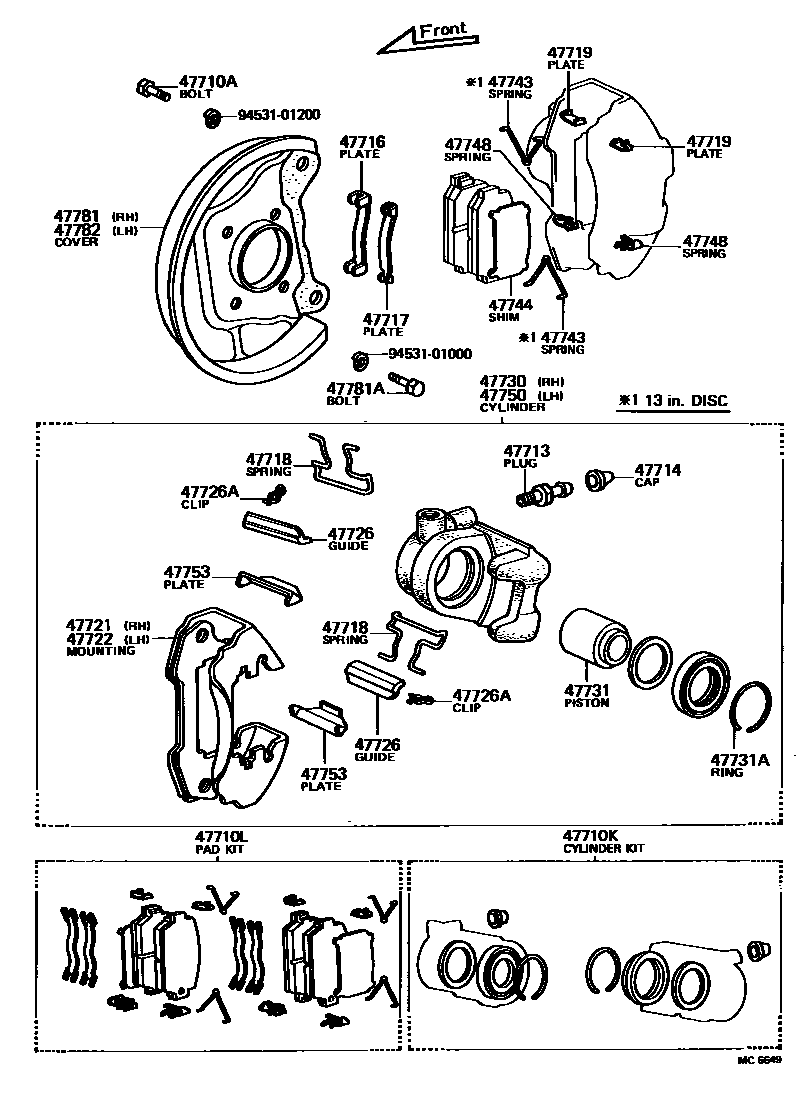

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12002iTA40..EUG¥320197708-197903

14IN,AUSTRIA SPEC

main90101-12002iRA40¥320197708-198107

14IN

main90101-12332iTA40..LT,ST¥370197708-198107

*12-1.25PX15.7-10,13IN

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-14010iTA40..LT,ST¥1,310197708-198107

13IN

main04479-14020iTA40..EUG¥1,330197708-197903

14IN,AUSTRIA SPEC

main04479-14020iRA40¥1,330197708-198107

14IN

47710LPAD KIT, DISC BRAKE, FRONT

main04491-12092iTA40..LT,ST¥7,700197708-197803

13IN

sub04491-12093¥7,700

main04491-12093iTA40..LT,ST¥7,700197803-198107

13IN

sub04465-12430¥9,500

main04491-14042iRA40¥8,900197708-198107

14IN

sub04465-14290¥12,300

main04491-14042iTA40..EUG¥8,900197708-197903

14IN,AUSTRIA SPEC

sub04465-14290¥12,300

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12020iRA40,TA40¥410197708-198107

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iRA40,TA40¥160197708-198107

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14020iTA40..LT,ST¥410197708-198107

13IN

main47716-14030iRA40¥510197708-198107

14IN

main47716-14030iTA40..EUG¥510197708-197903

14IN,AUSTRIA SPEC

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-14020iTA40..LT,ST¥410197708-198107

13IN

main47717-14030iTA40..GT¥410197708-198107

14IN

main47717-14030iTA40..EUG¥410197708-197903

14IN,AUSTRIA SPEC

47718SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-12030iTA40..LT,ST¥390197708-198107

13IN

main47718-14030iRA40¥730197708-198107

14IN

sub47718-14070¥550

main47718-14030iTA40..EUG¥730197708-197903

14IN,AUSTRIA SPEC

sub47718-14070¥550

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47719-12010iTA40..LT,ST¥240197708-198107

13IN

main47719-14010iTA40..EUG¥200197708-197903

14IN,AUSTRIA SPEC

main47719-14010iRA40¥200197708-198107

14IN

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12030iTA40..LT,ST¥6,300197708-198107

13IN

main47721-14050iRA40¥11,200197708-198107

14IN

main47721-14050iTA40..EUG¥11,200197708-197903

14IN,AUSTRIA SPEC

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12030iTA40..LT,ST¥6,300197708-198107

13IN

main47721-14050iRA40¥11,200197708-198107

14IN

main47721-14050iTA40..EUG¥11,200197708-197903

14IN,AUSTRIA SPEC

47726GUIDE, FRONT DISC BRAKE CYLINDER

main47726-14020iTA40..LT,ST¥840197708-198107

13IN

main47726-14030iTA40..EUG¥650197708-197903

14IN,AUSTRIA SPEC

main47726-14030iRA40¥650197708-198107

14IN

47726ACLIP(FOR FRONT DISC BRAKE CYLINDER)

main90468-12134iRA40,TA40¥170197708-198107

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14041iTA40..EUG¥37,700197708-197903

14IN,AUSTRIA SPEC

main47730-14041iRA40¥37,700197708-198107

14IN

main47750-12060iTA40..LT,ST¥42,100197708-198107

13IN

47731PISTON, FRONT DISC BRAKE

main47731-14020iTA40..EUG¥2,920197708-197903

14IN,AUSTRIA SPEC

main47731-14020iRA40¥2,920197708-198107

14IN

main47731-20030iTA40..LT,ST¥1,550197708-198107

13IN

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-54038iTA40..LT,ST¥320197708-198107

13IN

sub90522-58001¥330

main90522-62001iTA40..EUG¥230197708-197903

14IN,AUSTRIA SPEC

main90522-62001iRA40¥230197708-198107

14IN

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14010iTA40..LT,ST¥200197803-198107

13IN

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14010iTA40..LT,ST¥810197708-197803

13IN

sub47744-14011¥250

main47744-14011iTA40..LT,ST¥250197803-198107

13IN

main47744-20020iTA40..EUG¥250197708-197903

14IN,AUSTRIA SPEC

main47744-20020iRA40¥250197708-198107

14IN

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14010iTA40..LT,ST197708-198107

13IN

main47748-14020iRA40¥300197708-198107

14IN

main47748-14020iTA40..EUG¥300197708-197903

14IN,AUSTRIA SPEC

47750CYLINDER ASSY, DISC BRAKE, LH

main47730-12060iTA40..LT,ST¥42,100197708-198107

13IN

main47750-14041iTA40..EUG¥37,700197708-197903

14IN,AUSTRIA SPEC

main47750-14041iRA40¥37,700197708-198107

14IN

47753PLATE, CYLINDER GUIDE

main47753-14010iTA40..LT,ST197708-198107

13IN

main47753-14020iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X¥350197708-198107

14IN

main47753-14020iTA40..EUG¥350197708-197903

14IN,AUSTRIA SPEC

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-14040iTA40..EUG¥4,180197708-197903

14IN,AUSTRIA SPEC

sub47703-14060¥4,750

main47703-14040iRA40¥4,180197708-198107

14IN

sub47703-14060¥4,750

main47704-12050iTA40..LT,ST¥2,560197708-198107

13IN

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10020iRA40,TA40¥120197708-198107

47782COVER, DISC BRAKE DUST, FRONT LH

main47703-12050iTA40..LT,ST¥2,560197708-198107

13IN

main47704-14040iRA40¥4,140197708-198107

14IN

sub47704-14060¥4,670

main47704-14040iTA40..EUG¥4,140197708-197903

14IN,AUSTRIA SPEC

sub47704-14060¥4,670

9453101000

main94531-01000¥90

9453101200

main94531-01200¥80

26 parts on this diagram · 2 diagrams in section
