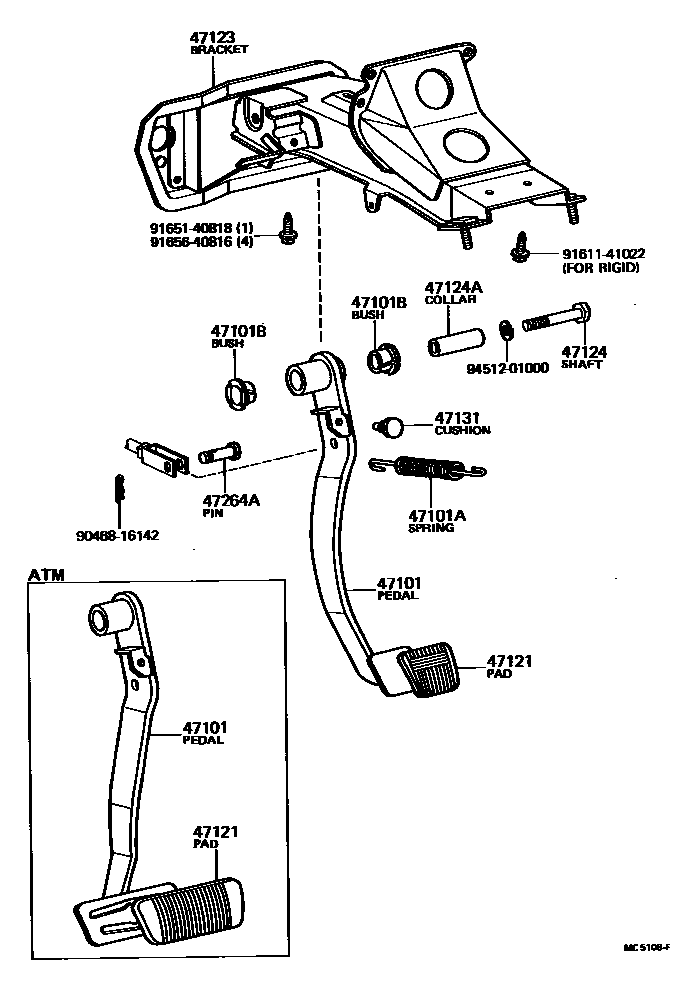

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-14060iRA40,TA40..RHD..MTM197708-197908

main47101-14061iRA40,TA40..RHD..MTM197908-198107

main47101-14070iRA40,TA40..RHD..3FC197708-198107

main47101-14080iRA40,TA40..LHD..MTM197708-198107

main47101-14090iRA40,TA40..LHD..3FC197708-198107

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14004iRA40,TA40197708-198107

sub90507-14002

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iRA40,TA40197708-197804

main90386-13192iRA40,TA40197804-198107

47121PAD, BRAKE PEDAL

main31321-14010iRA40,TA40..MTM197708-198107

main47121-30050iRA40,TA40..3FC197708-198107

47123BRACKET, BRAKE PEDAL

main55106-14140iRA40,TA40..LHD197708-198107

main55106-14150iRA40,TA40..RHD197708-198107

47124SHAFT, BRAKE PEDAL

main90101-10039iRA40,TA40..RHD197708-198107

main90101-10043iRA40,TA40..LHD197708-198107

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10002iRA40,TA40..LHD197708-198107

main90387-10003iRA40,TA40..RHD197708-198107

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iRA40,TA40197708-198107

47264APIN(FOR PUSH ROD)

main90249-10064iRA40,TA40197708-198107

9046816142

main90468-16142

9161141022

main91611-41022

9165140818

main91651-40818

9165640816

main91656-40816

9451201000

main94512-01000

14 parts on this diagram · 2 diagrams in section
