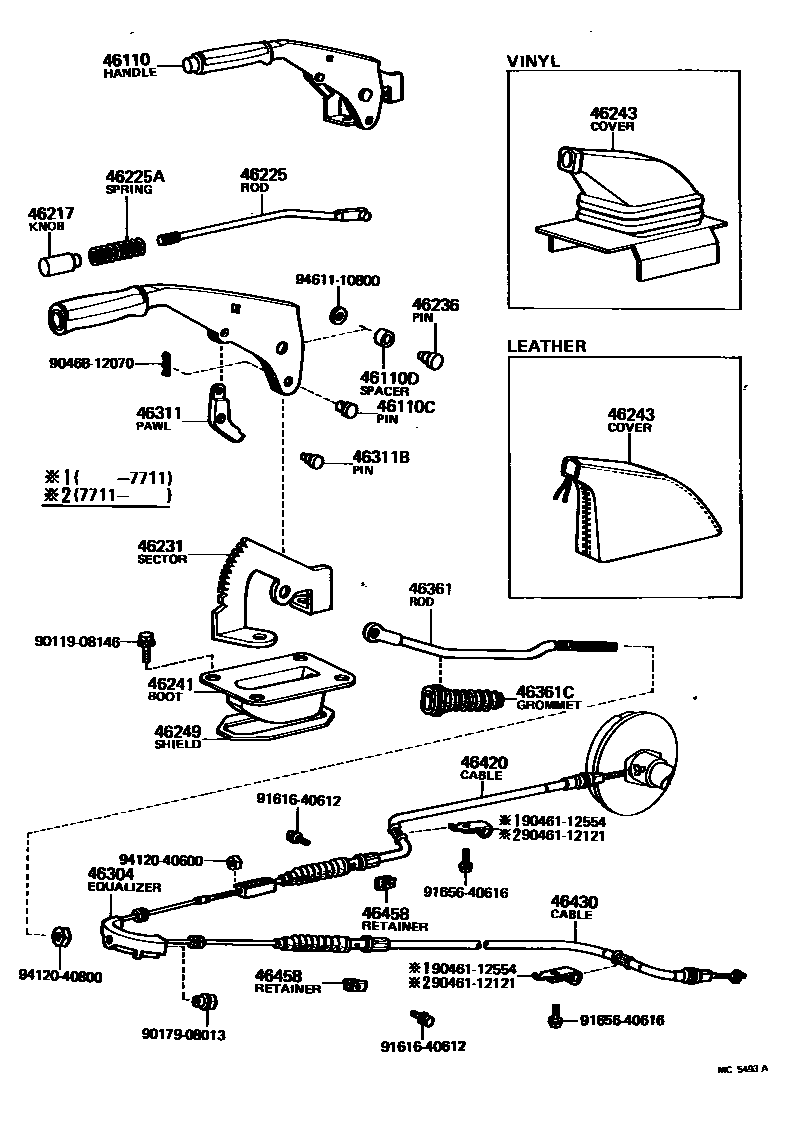

PARKING BRAKE & CABLE

0001 1 0002 1

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46201-14040-01iRA40,TA40..GT,LT,XT197708-197908

BLACK,BLACK,TRIM2#

sub46201-14040

main46201-14040-04iRA40,TA40..GT,LT,XT197708-197908

BLUE,BLUE,TRIM8#

sub46201-14040

main46201-14040-16iRA40,TA40..GT,LT,XT197708-197908

BROWN,BROWN,TRIM4#

sub46201-14040

main46201-14050iRA40,TA40..ST197708-197908

sub46201-14040

main46201-14060-01iRA40,TA40197908-198107

BLACK,BLACK,TRIM2#

sub46201-14090

main46201-14060-04iRA40,TA40197908-198107

BLUE,BLUE,TRIM8#

sub46201-14090

main46201-14060-06iRA40,TA40197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub46201-14090

46110CPIN(FOR PARKING BRAKE HANDLE SET)

main90240-08037iRA40,TA40197708-197908

46110DSPACER(FOR PARKING BRAKE HANDLE)

main90560-10200iRA40,TA40197708-197908

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10013-01iRA40,TA40..GT,LT,XT197708-197712

OD=13.8-14.4,BLACK,BLACK,TRIM2#

sub46217-10013

sub46217-10020

main46217-10013-04iRA40,TA40..GT,LT,XT197708-197712

OD=13.8-14.4,BLUE,BLUE,TRIM8#

sub46217-10013

sub46217-10020

main46217-10013-05iRA40,TA40..GT,LT,XT197708-197712

OD=13.8-14.4,BROWN,BEIGE,TRIM4#

sub46217-10013

sub46217-10020

main46217-10013-16iRA40,TA40..ST197708-197712

OD=13.8-14.4,BROWN,BROWN,TRIM4#

sub46217-10013

sub46217-10020

main46217-10020-01iRA40,TA40..GT,LT,XT197712-197908

OD=13.6-13.9,BLACK,BLACK,TRIM2#

sub46217-10020

sub46217-20020

main46217-10020-01iRA40,TA40197908-198107

BLACK,BLACK,TRIM2#

sub46217-10020

sub46217-20020

main46217-10020-04iRA40,TA40..GT,LT,XT197712-197908

OD=13.6-13.9,BLUE,BLUE,TRIM8#

sub46217-10020

sub46217-20020

main46217-10020-04iRA40,TA40197908-198107

BLUE,BLUE,TRIM8#

sub46217-10020

sub46217-20020

main46217-10020-06iRA40,TA40197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub46217-10020

sub46217-20020

main46217-10020-16iRA40,TA40..ST197712-197908

OD=13.6-13.9,BROWN,BROWN,TRIM4#

sub46217-10020

sub46217-20020

46225ROD, PARKING BRAKE PAWL RELEASE

main46225-14010iRA40,TA40197708-197908

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iRA40,TA40197708-198107

46231SECTOR, PARKING BRAKE LEVER

main46231-14020iRA40,TA40197708-197908

46236PIN, LEVER PIVOT

main46236-12010iRA40,TA40197708-197908

46241BOOT, PARKING BRAKE LEVER

main46241-14020iRA40,TA40197708-197908

sub46241-14021

main46241-14030iRA40,TA40197908-198107

46243COVER, PARKING BRAKE LEVER

main46243-14030-01iRA40,TA40..LT197708-198107

VINYL,BLACK,BLACK,TRIM2#

sub46243-14030

sub46243-14031

main46243-14030-04iRA40,TA40..LT197708-198107

VINYL,BLUE,BLUE,TRIM8#

sub46243-14030

sub46243-14031

main46243-14030-06iRA40,TA40..LT197708-198107

VINYL,BROWN,BROWN,TRIM4#

sub46243-14030

sub46243-14031

main46243-14040-01iRA40,TA40..GT,ST,XT197708-198107

LEATHER,BLACK,BLACK,TRIM2#

main46243-14040-04iRA40,TA40..GT,ST,XT197708-198107

LEATHER,BLUE,BLUE,TRIM8#

main46243-14040-16iRA40,TA40..GT,ST,XT197708-198107

LEATHER,BROWN,BROWN,TRIM4#

46249SHIELD, PARKING BRAKE HOLE

main46249-22020iRA40,TA40197807-198107

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-12010iRA40,TA40197908-198107

main46341-14010iRA40,TA40197708-197908

sub46341-22040

46311PAWL, PARKING BRAKE

main46311-22020iRA40,TA40197708-197908

46311BPIN, PARKING BRAKE PAWL PIVOT

main90249-08019iRA40,TA40197708-197908

46361ROD, PARKING BRAKE PULL

main46361-14020iRA40,TA40197708-197908

46361CGROMMET(FOR PARKING BRAKE PULL ROD)

main90480-01057iRA40,TA40197708-197908

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-14070iRA40,TA40197708-197908

main46420-14100iRA40,TA40197908-197909

main46420-14101iRA40,TA40197909-198008

main46420-14102iRA40,TA40198008-198107

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-14070iRA40,TA40197708-197908

main46430-14120iRA40,TA40197908-197909

sub46430-14122

main46430-14121iRA40,TA40197909-198008

main46430-14122iRA40,TA40198008-198107

46458RETAINER, CABLE

main46458-20020iRA40,TA40197708-198107

sub46458-50010

9011908146

main90119-08146

9017908013

main90179-08013

9046112121

main90461-12121

9046112554

main90461-12554

9046812070

main90468-12070

9161640612

main91616-40612

9165640616

main91656-40616

9412040600

main94120-40600

9412040800

main94120-40800

9461110800

main94611-10800

29 parts on this diagram · 2 diagrams in section
