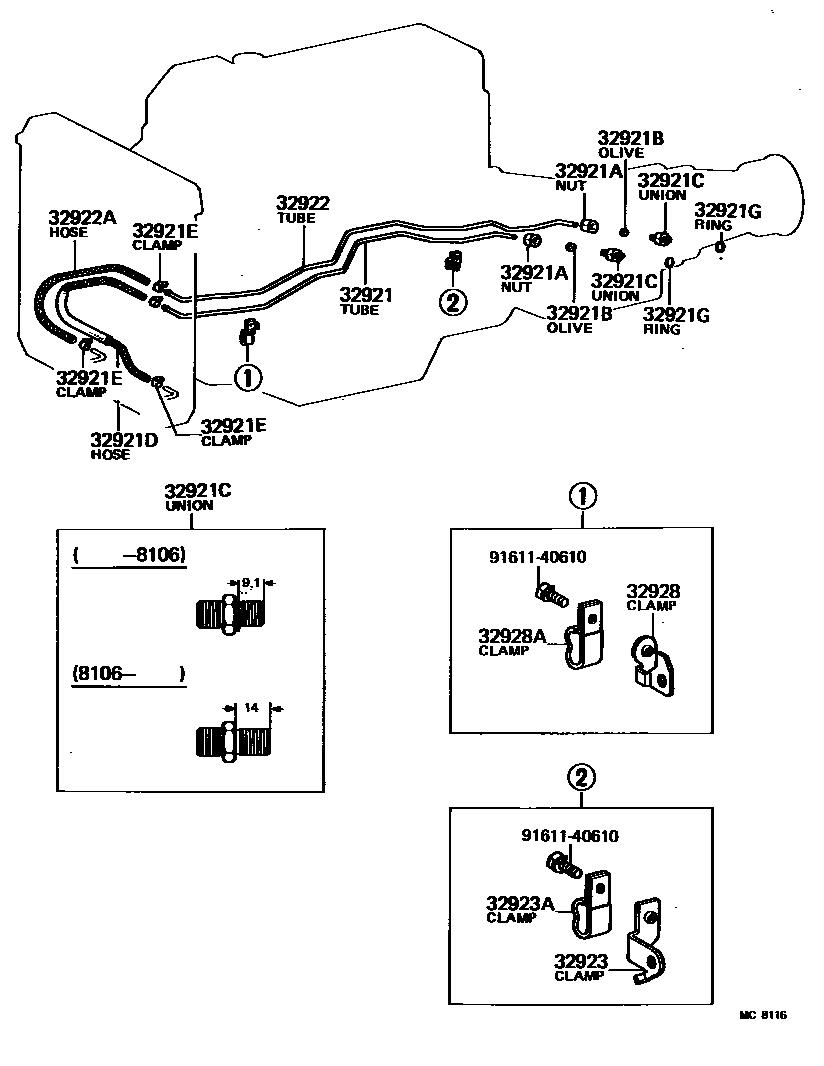

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-12030iTA40..3FC197708-198011

main32921-14050iRA40..3FC197708-198107

main32921-20140iTA40..3FC198011-198107

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041iRA40,TA40..3FC197708-198107

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400iRA40,TA40..3FC197708-198107

32921CUNION(FOR OIL COOLER TUBE)

main90404-13003iRA40,TA40..3FC198106-198107

main90404-13265iRA40,TA40..3FC197708-198106

32921DHOSE(FOR OIL COOLER INLET)

main32941-14012iTA40..3FC197708-197809

L=790

sub32941-14013

main32941-14013iTA40..3FC197809-198107

L=790

main32942-14020iRA40..3FC197708-198107

L=520

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-01075iRA40,TA40..3FC197708-197803

sub90460-14085

main90460-14085iRA40,TA40..3FC197803-198107

sub90460-20004

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iRA40,TA40..3FC197708-198107

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12030iTA40..3FC197708-198011

main32922-14040iRA40..3FC197708-198107

main32922-20140iTA40..3FC198011-198107

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-14012iTA40..3FC197708-198107

L=590

sub32942-14013

main90445-14236iRA40..3FC197708-198107

L=260

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20022iRA40..3FC197708-198107

main90461-08039iTA40..3FC197708-198107

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90461-08070iRA40..3FC197708-198107

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-20031iRA40..3FC197708-198107

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-08070iRA40..3FC197708-198107

9161140610

main91611-40610

14 parts on this diagram · 2 diagrams in section
