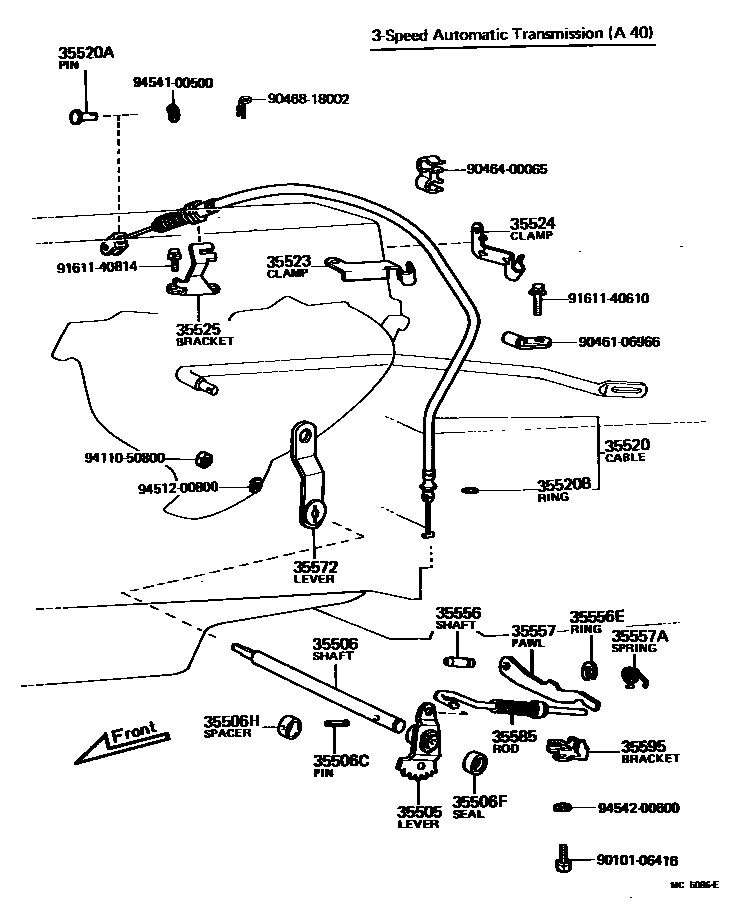

THROTTLE LINK & VALVE LEVER (ATM)
35505LEVER SUB-ASSY, MANUAL VALVE
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
sub90311-11001
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
sub90560-20025
35520APIN, THROTTLE CABLE
35520BRING, O(FOR THROTTLE CABLE)
sub90301-09004
35524CLAMP, THROTTLE CABLE, NO.2
35525BRACKET, THROTTLE CABLE
35556SHAFT, PARKING LOCK PAWL
sub35556-26010
35556ERING, E (FOR PARKING LOCK PAWL SHAFT)
35557PAWL, PARKING LOCK
sub35557-35010
35572LEVER, TRANSMISSION CONTROL SHAFT, RH
35585ROD, PARKING LOCK
9010106416
main90101-06416
9046106966
main90461-06966
9046400065
main90464-00065
9046818002
main90468-18002
9161140610
main91611-40610
9161140814
main91611-40814
9411050800
main94110-50800
9451200800
main94512-00800
9454100500
main94541-00500
9454200600
main94542-00600
28 parts on this diagram · 2 diagrams in section
