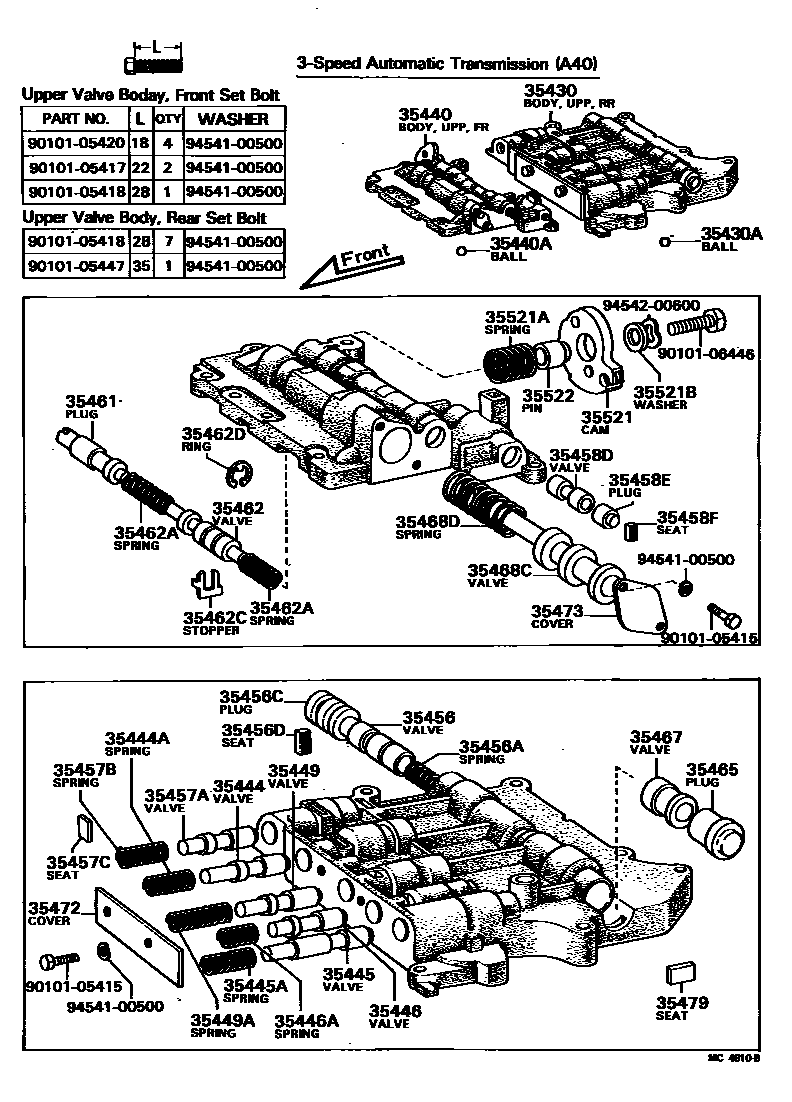

VALVE BODY & OIL STRAINER (ATM)
35430BODY ASSY, REAR UPPER VALVE
35430ABALL (FOR REAR UPPER VALVE BODY)
0D=5.56,OD=5.56,STEEL
35440ABALL (FOR FRONT UPPER VALVE BODY)
35444VALVE, INTERMEDIATE MODULATOR
35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)
sub90501-11009
35445VALVE, LOW MODULATOR
35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
35446VALVE, GOVERNOR MODULATOR
35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)
35449VALVE, SEQUENCE
UPR VALVE
LWR VALVE
35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)
35456VALVE, 2-3 SHIFT
35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456CPLUG (FOR 2-3 SHIFT VALVE)
35456DSEAT (FOR 2-3 SHIFT VALVE)
35457AVALVE, DETENT REGULATOR
35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)
35457CSEAT (FOR DETENT REGULATOR VALVE)
35458DVALVE, CUT BACK
35458EPLUG (FOR CUT BACK VALVE)
35458FSEAT (FOR CUT BACK VALVE)
35461PLUG, DOWN SHIFT
35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)
L=19.24,WD=0.71,CW=8,SECONDARY
WD=1.19,CW=15.5,PRIMARY
L=39.71,WD=1.19,CW=11.5,PRIMARY
35462CSTOPPER, VALVE VIBRATING
35462DRING, E (FOR THROTTLE VALVE)
35465PLUG, INTERMEDIATE SHIFT VALVE
35467VALVE, INTERMEDIATE SHIFT
35468CVALVE, SECONDARY REGULATOR
35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35472COVER, VALVE BODY, NO.2
35473COVER, TRANSMISSION VALVE BODY
35479SEAT, INTERMEDIATE SHIFT VALVE
35521CAM, THROTTLE VALVE
35521ASPRING (FOR THROTTLE VALVE CAM RETURN)
35521BWASHER (FOR THROTTLE VALVE CAM SET)
35522PIN, THROTTLE VALVE CAM
9010105415
main90101-05415
9010105417
main90101-05417
9010105418
main90101-05418
9010105420
main90101-05420
9010105447
main90101-05447
9010106446
main90101-06446
9454100500
main94541-00500
9454200600
main94542-00600
46 parts on this diagram · 2 diagrams in section
