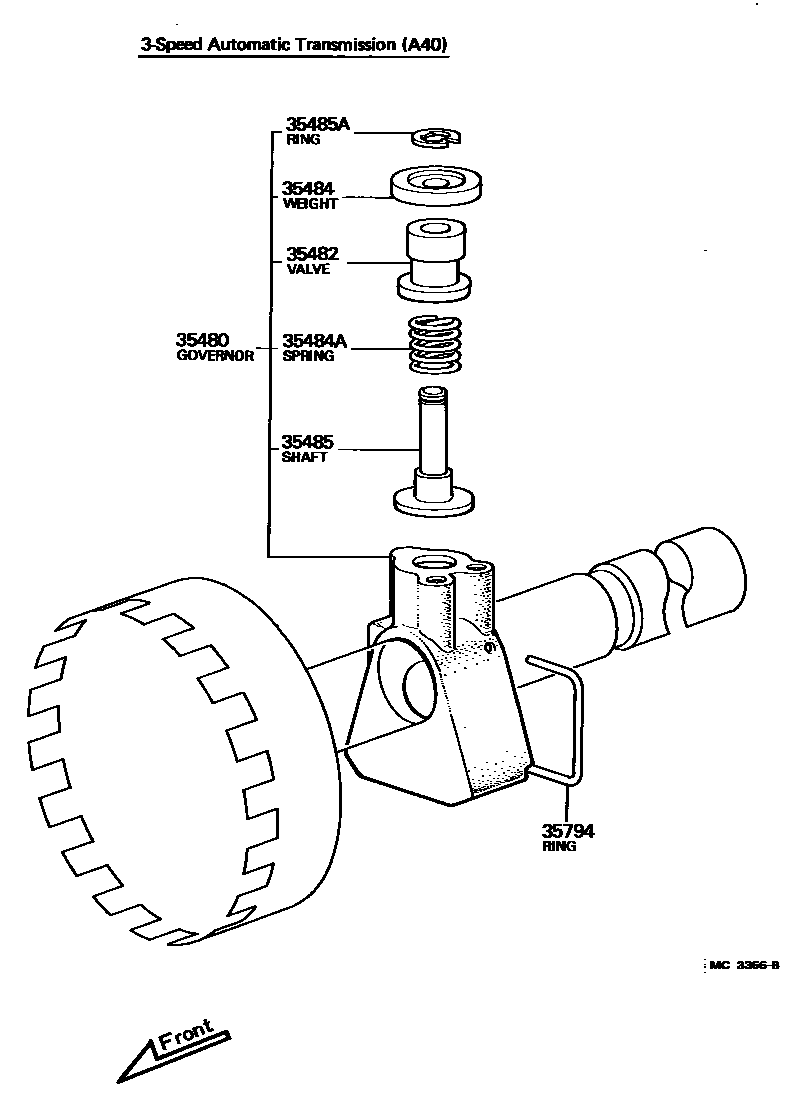

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-22020iRA40,TA40..3FC¥12,600197708-198107

sub35480-30040¥12,600

35482VALVE, GOVERNOR

main35482-22010iRA40,TA40..3FC¥1,950197708-198107

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iRA40,TA40..3FC¥750197708-198107

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09673iRA40,TA40..3FC¥200197708-198107

35485SHAFT, GOVERNOR VALVE

main35485-22010iRA40,TA40..3FC¥1,220197708-198107

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iRA40,TA40..3FC¥190197708-198107

35794RING, GOVERNOR RETAINING

main35794-22010iRA40,TA40..3FC¥550197708-198107

7 parts on this diagram · 1 diagram in section
