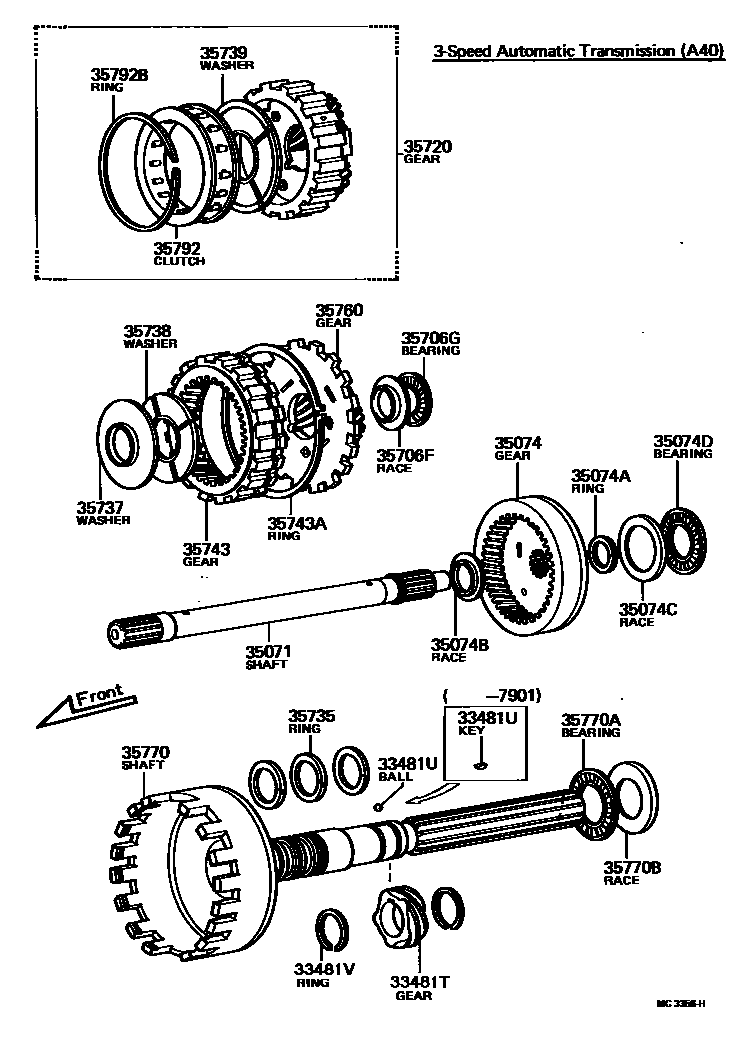

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

33481TGEAR, SPEEDOMETER DRIVE (MTM)

main33481-20030iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-197901

N=6

main33481-25030iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197901-198107

N=6

main33481-26010iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5198003-198107

N=6,SMG R=20:6

main33481-26010iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197901-198107

N=6

main33481-30050iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-197901

N=6

33481UBALL (FOR SPEEDOMETER DRIVE GEAR)

main90280-03005iRA40,TA40..3FC197708-197901

main90360-06004iRA40,TA40..3FC197901-198107

33481VGEAR, SPEEDOMETER DRIVE (MTM)

main90520-28009iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-198107

35071SHAFT SUB-ASSY, PLANETARY INTERMEDIATE

main35708-22011iRA40,TA40..3FC197708-198107

35074GEAR SUB-ASSY, REAR PLANETARY RING

main35074-22010iRA40,TA40..3FC197708-198107

sub35074-30010

35074ARING, SET (FOR REAR PLANETARY RING GEAR)

main90522-20037iRA40,TA40..3FC197708-198107

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-22050iRA40,TA40..3FC197708-198107

35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)

main35789-22020iRA40,TA40..3FC197708-198107

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-28014iRA40,TA40..3FC197708-198107

35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)

main35789-22010iRA40,TA40..3FC197708-198107

35706GBEARING, THRUST (FOR SUN GEAR REAR)

main90374-23012iRA40,TA40..3FC197708-198107

35720GEAR ASSY, FRONT PLANETARY

main35720-22011iRA40,TA40..3FC197708-198011

sub35720-22012

main35720-22012iRA40,TA40..3FC198011-198107

35735RING, PLANETARY OUTPUT SNAP

main35735-22010iRA40,TA40..3FC197708-198107

35737WASHER, PLANETARY CARRIER THRUST

main35737-22010iRA40,TA40..3FC197708-198107

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-22010iRA40,TA40..3FC197708-198107

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-22011iRA40,TA40..3FC197708-198107

35743GEAR, FRONT PLANETARY RING

main35743-22010iRA40,TA40..3FC197708-198107

35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)

main90520-99121iRA40,TA40..3FC197708-198107

35760GEAR ASSY, REAR PLANETARY

main35760-22011iRA40,TA40..3FC197708-198011

sub35760-22020

main35760-22020iRA40,TA40..3FC198011-198107

sub35760-30010

35770SHAFT ASSY, OUTPUT

main35770-22010iRA40,TA40..3FC197708-197901

sub35770-22011

sub33481-25020

sub33481-25030

sub33481-26010

sub90360-06004

main35770-22011iRA40,TA40..3FC197901-197910

sub35770-22012

main35770-22012iRA40,TA40..3FC197910-198107

sub35770-14010

35770ABEARING, THRUST (FOR OUTPUT SHAFT)

main90374-38013iRA40,TA40..3FC197708-198107

35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)

main35789-22040iRA40,TA40..3FC197708-198107

35792CLUTCH, 1 WAY, NO.2

main35792-22020iRA40,TA40..3FC197708-198107

sub35792-20010

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-79148iRA40,TA40..3FC197708-198107

24 parts on this diagram · 1 diagram in section
