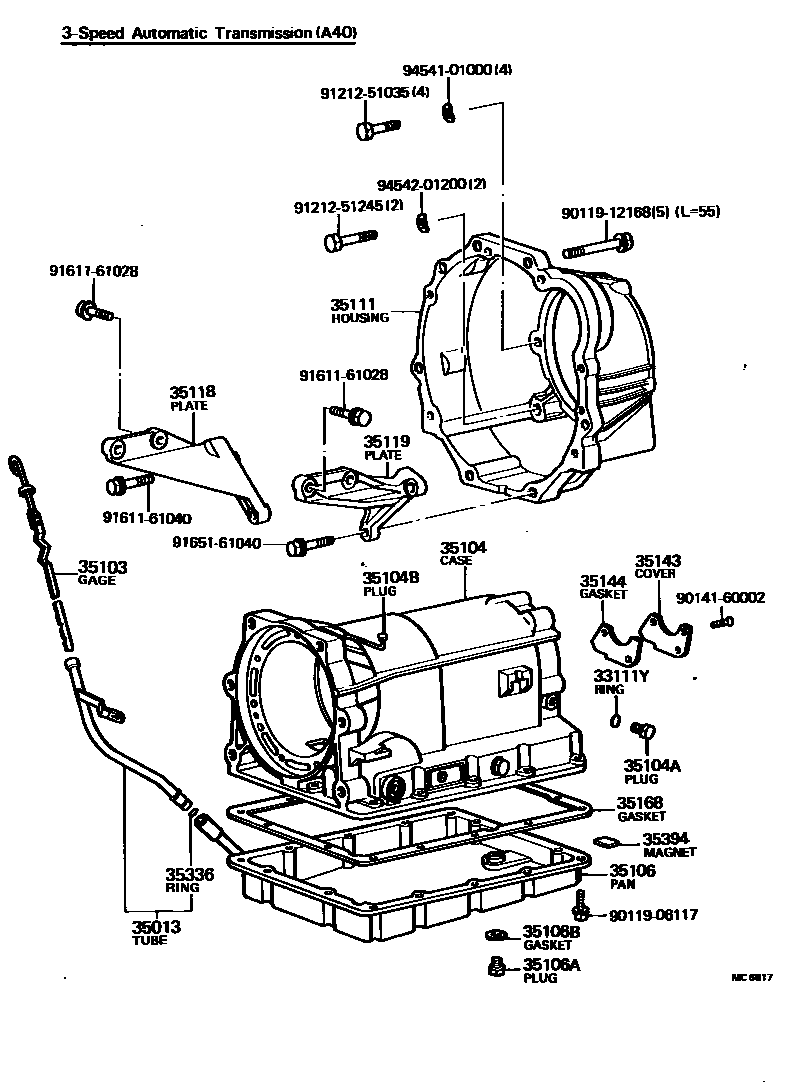

TRANSMISSION CASE & OIL PAN (ATM)
33111YSEAL, OIL(FOR TRANSMISSION CASE)
main90301-06196iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-198107
35104APLUG, AUTOMATIC TRANSMISSION CASE
35104BPLUG, BREATHER, NO.1 (ATM)
sub90930-03069
35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
sub35106-22021
35106APLUG SUB-ASSY, DRAIN (ATM)
sub90341-10011
35106BGASKET, DRAIN PLUG (ATM)
35118PLATE, STIFENER, RH (ATM)
35143COVER, TRANSMISSION CASE, REAR
35144GASKET, TRANSMISSION CASE REAR COVER
sub35144-28010
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
9011906117
main90119-06117
9011912168
main90119-12168
9014160002
main90141-60002
9121251035
main91212-51035
9121251245
main91212-51245
9161161028
main91611-61028
9161161040
main91611-61040
9165161040
main91651-61040
9454101000
main94541-01000
9454201200
main94542-01200
27 parts on this diagram · 2 diagrams in section
