TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

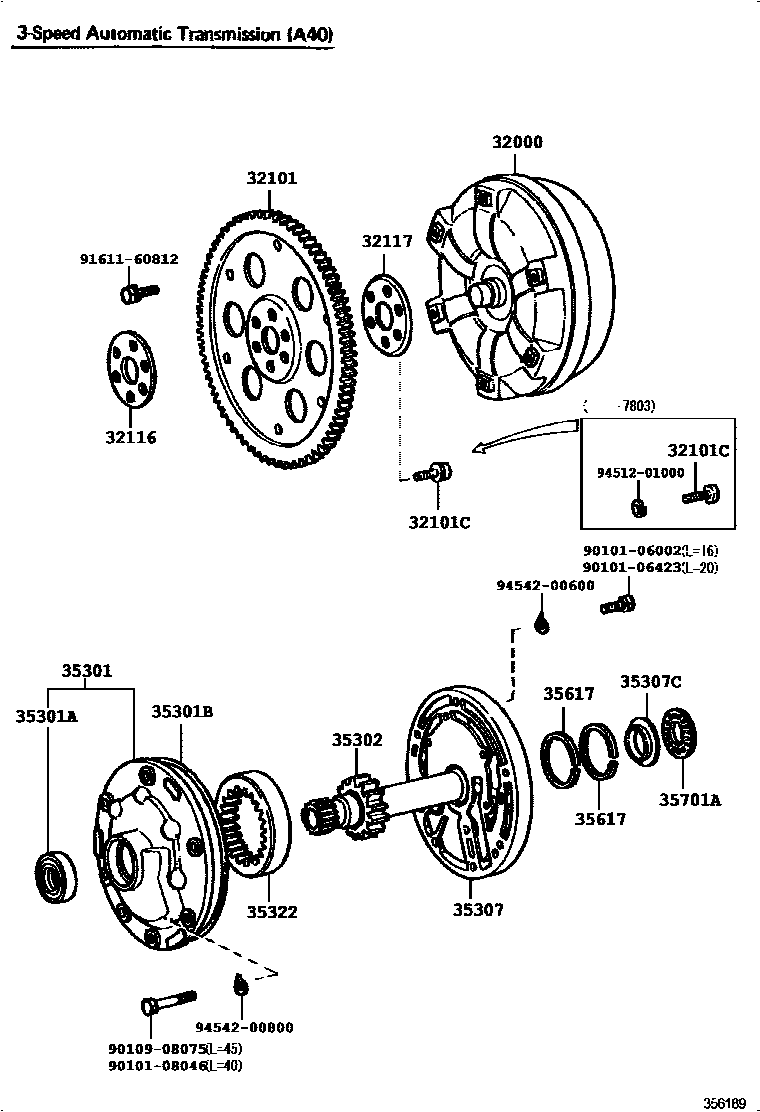

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-12030i197708-198107
main32000-22020i197708-198107
sub32000-22021
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-14030i197708-198107
sub32101-22030
main32101-22020i197708-198107
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90101-10035i197708-197803
sub90105-10006
main90105-10006i197803-198107
*10-1.25X23-14.5
32116SPACER, DRIVE PLATE, FRONT
main32116-14010i197708-197908
sub32116-14011
main32116-14011i197908-198107
main32116-22011i197708-198107
32117SPACER, DRIVE PLATE, REAR
main32117-14010i197708-197908
sub32117-14011
main32117-14011i197908-198107
main32117-22011i197708-198107
35301BODY SUB-ASSY, FRONT OIL PUMP
main35301-22011i197708-197909
sub35301-30030
sub90101-06002
sub90101-08046
sub90301-99010
main35301-22012i197909-198011
sub35301-30030
sub90101-06002
sub90101-08046
main35301-30030i198011-198107
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38129i197708-198107
sub90311-38020
35301BRING, O (FOR FRONT OIL PUMP BODY)
main35147-22010i197708-197909
main90301-99010i197909-198107
35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
main35321-22010i197708-198107
sub35321-22090
35307SHAFT SUB-ASSY, STATOR
main35307-22011i197708-197909
sub35370-22010
main35370-22010i197909-198107
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
main35789-22010i197708-198107
T=4.3
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-22010i197708-198107
T=15.286-15.235
sub35322-22090
35617RING, CLUTCH DRUM OIL SEAL
main35617-22010i197708-198107
35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)
main90374-23012i197708-198107
9010106002
main90101-06002
9010106423
main90101-06423
9010108046
main90101-08046
9010908075
main90109-08075
9161160812
main91611-60812
9451201000
main94512-01000
9454200600
main94542-00600
9454200800
main94542-00800

22 parts on this diagram · 1 diagram in section
