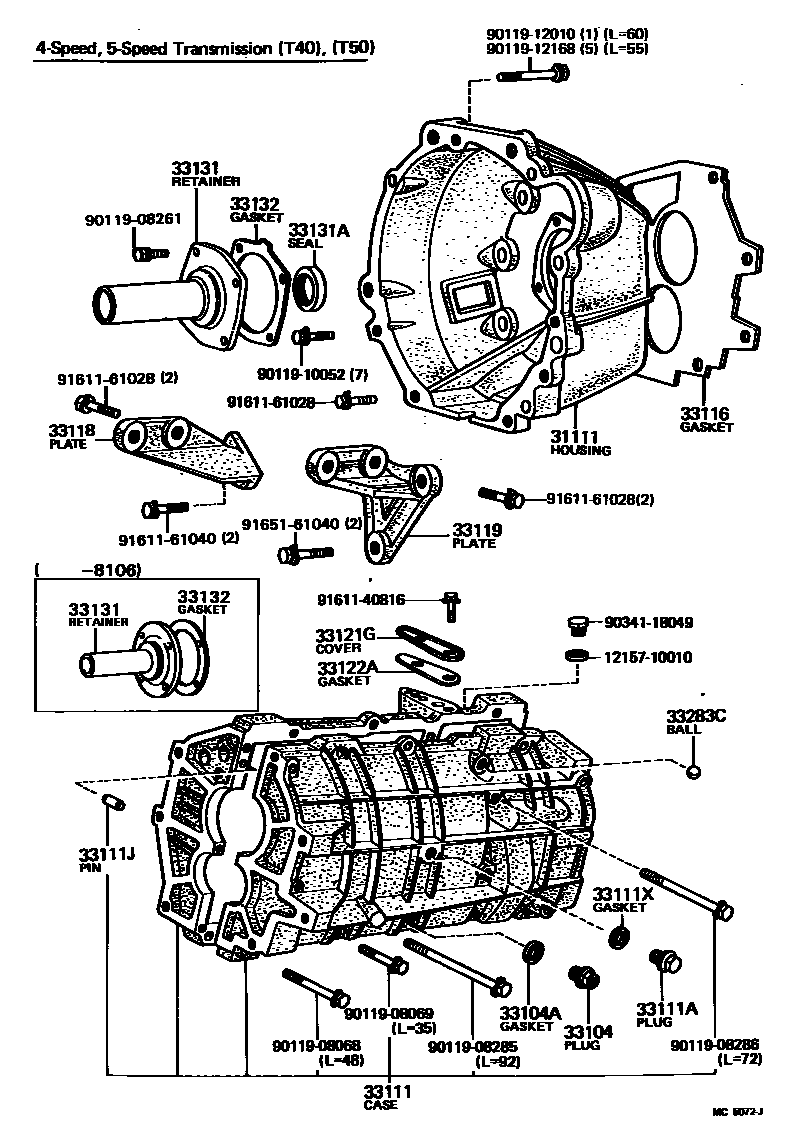

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31111HOUSING, CLUTCH

main31111-14040iTA40..MTM197708-198008

main31111-14070iTA40..MTM¥25,500198106-198107

main31111-20050iRA40..MTM¥21,000197708-197808

sub31111-20090¥22,700

main31111-20120iRA40..MTM¥24,600197808-198107

sub31111-20110¥22,300

main31111-20180iTA40..MTM198008-198106

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iRA40..MTM¥350197708-198107

main90341-18081iTA40..MTM¥870197708-198107

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iRA40,TA40..MTM¥100197708-198107

33111CASE, MANUAL TRANSMISSION

main33101-14030iTA40..MTM¥44,500197708-198106

sub33101-14020

sub90341-18006¥180

sub90430-18008¥110

main33101-14040iTA40..MTM¥44,900198106-198107

main33101-20010iRA40..MTM¥37,200197708-197901

sub33101-20011¥37,100

main33101-20011iRA40..MTM¥37,100197901-198107

sub33101-30021¥37,100

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iRA40,TA40..MTM¥580197708-198107

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08030iTA40..MTM¥200197708-198107

L=16,OD=8

sub90250-08046¥100

main90250-12195iRA40..MTM¥190197708-198107

OD=12,L=39

main90334-06017iRA40..MTM¥170197708-198107

OD=6,L=11

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iRA40,TA40..MTM¥100197708-198107

33116GASKET, MANUAL TRANSMISSION CASE

main33116-14010iTA40..MTM¥300197708-198106

main33116-14020iTA40..MTM¥440198106-198107

main33132-20040iRA40..MTM¥220197708-198107

33118PLATE, STIFFENER, RH(MTM)

main33118-12020iTA40..MTM¥2,390197708-197908

main33118-14010iTA40..MTM¥3,640197908-198107

main33118-22030iRA40..MTM¥2,650197708-198107

33119PLATE, STIFFENER, LH(MTM)

main33119-14020iRA40..MTM¥2,790197708-197808

sub33119-22021¥2,550

main33119-14040iTA40..MTM¥3,640197708-198107

main33119-22021iRA40..MTM¥2,550197808-198107

sub33119-22022¥2,520

33121GCOVER, MANUAL TRANSMISSION CASE

main33121-14010iTA40..MTM¥820197708-198107

33122AGASKET, MANUAL TRANSMISSION CASE COVER

main33122-14010iTA40..MTM¥250197708-198107

33131RETAINER, BEARING, FRONT(MTM)

main33131-14010iTA40..MTM¥4,240197708-198106

main33131-14020iTA40..MTM¥4,180198106-198107

main33131-22010iRA40..GT197708-197908

main33131-31010iRA40..MTM¥2,790197708-198107

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-25003iTA40..MTM¥210197803-198107

main90311-25141iTA40..MTM¥210197708-197803

sub90311-25003¥210

main90311-30115iRA40..MTM¥220197708-198107

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-14010iTA40..MTM¥230197708-198106

main33132-14020iTA40..MTM¥250198106-198107

33283CBALL, REVERSE RESTRICT

main90360-10003iTA40..MTM¥100197708-198107

1215710010GASKET, DRAIN PLUG(FOR OIL STRAINER COVER)

main12157-10010¥100

9011908068

main90119-08068¥260

9011908069

main90119-08069¥260

9011908261

main90119-08261¥140

9011908285

main90119-08285¥370

9011908286

main90119-08286¥340

9011910052

main90119-10052¥310

9011912010

main90119-12010¥300

9011912168

main90119-12168¥170

9034118049

main90341-18049¥260

9161140816

main91611-40816¥140

9161161028

main91611-61028¥140

9161161040

main91611-61040¥130

9165161040

main91651-61040¥120

30 parts on this diagram · 2 diagrams in section
