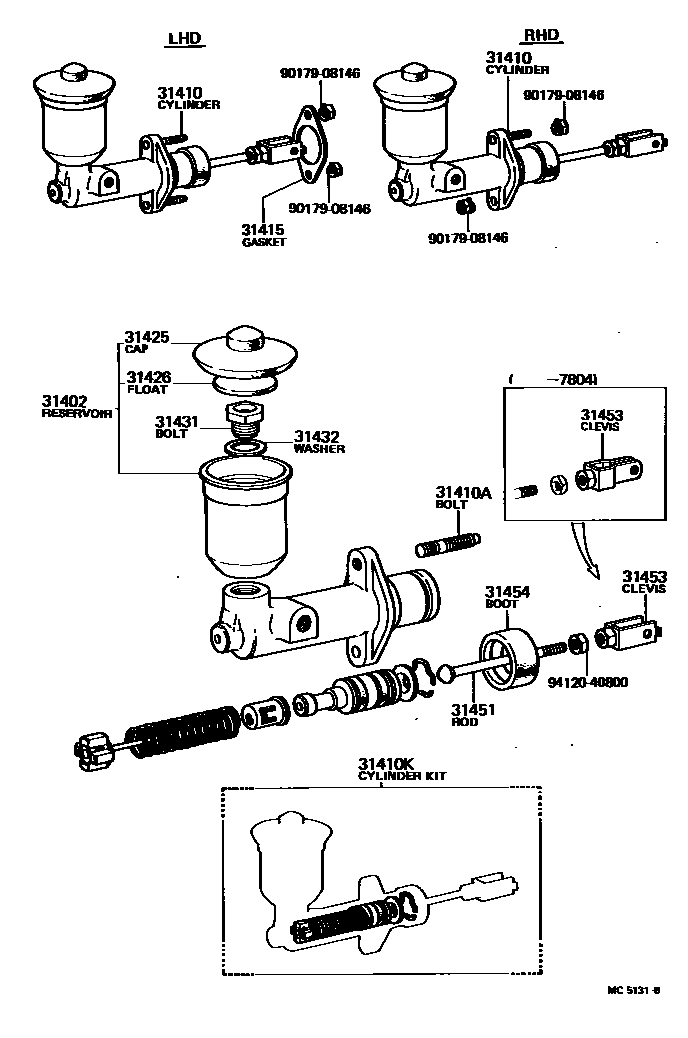

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20020iRA40,TA40..MTM197902-198107

sub31402-30030

main47202-12050iRA40,TA40..MTM197708-197902

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14010iRA40,TA40..RHD..MTM197708-197804

sub31410-14260

main31410-14070iRA40,TA40..RHD..MTM197804-197902

sub31410-14071

main31410-14080iRA40,TA40..LHD..MTM197804-197902

sub31410-14230

main31410-14081iRA40,TA40..LHD..MTM197902-198107

sub31410-14082

main31410-14100iRA40,TA40..RHD..MTM197902-198107

sub31410-14101

main31410-20100iRA40,TA40..LHD..MTM197708-197804

sub31410-20101

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08097iRA40,TA40..RHD..MTM197708-198107

S=9 & S=19

main90116-08302iRA40,TA40..LHD..MTM197708-198107

S=9 & S=24.5

31410KCYLINDER KIT, CLUTCH MASTER

main04311-12020iRA40,TA40..MTM197902-198107

sub04311-12021

main04311-14010iRA40,TA40..MTM197708-197902

sub04311-14011

31415GASKET, CLUTCH MASTER CYLINDER

main31415-14010iRA40,TA40..LHD..MTM197708-198107

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-12030iRA40,TA40..MTM197708-198107

sub47230-20040

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iRA40,TA40..MTM197708-198107

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iRA40,TA40..MTM197708-198107

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iRA40,TA40..MTM197708-198107

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-14010iRA40,TA40..MTM197708-198107

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iRA40,TA40..MTM197804-198107

sub31453-35010

main47264-10011iRA40,TA40..MTM197708-197804

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iRA40,TA40..MTM197708-198107

9017908146

main90179-08146

9412040800

main94120-40800

14 parts on this diagram · 1 diagram in section
