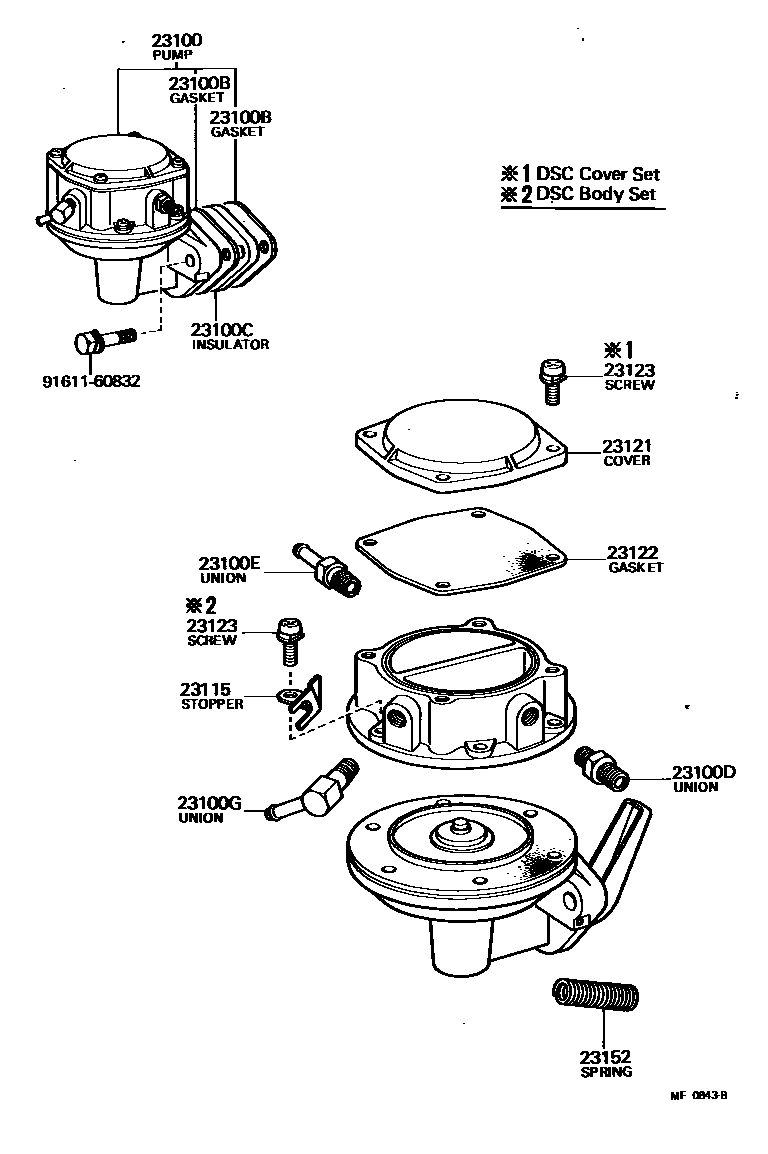

FUEL PUMP & PIPE

0001 1 0002 1 0003 1 0004 1 0006 1

23100PUMP ASSY, FUEL

main23100-29096i2TG..TA40197708-198107

sub23100-29097

main23100-29108i2T,2TB..TA40197708-197908

main23100-29305i2T,2TB..TA40197908-198107

sub23100-29306

main23100-39106i18RG..RA40197708-198107

sub23100-39107

main23100-39125i18R,18RC..RA40197708-197908

sub23100-39126

main23100-39305i18R,18RC..RA40197908-198107

sub23100-39306

23100BGASKET, FUEL PUMP

main90923-05005i18R#..RA40197708-198107

sub90923-05019

23100CINSULATOR, FUEL PUMP

main90923-06001i18R#..RA40197708-198107

sub90923-06009

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main23116-34030i2T,2TB..TA40197708-198107

main23116-41020i18RG..RA40197708-198107

main90404-13105i18R,18RC..RA40197708-198107

23100EUNION, NIPPLE(FOR FUEL INLET)

main90404-51244i18R#..RA40197708-198107

23100GUNION, NIPPLE(FOR FUEL RETURN HOSE)

main23116-34030i18R,18RC..RA40197708-197908

23115STOPPER, UNION NIPPLE

main23115-34032i18R,18RC..RA40197708-197908

main23115-88230i18RG..RA40197708-198107

23121COVER, FUEL PUMP

main23121-34020i2TG..TA40197708-198107

main23121-41030i18R#..RA40197708-198107

23122GASKET, FUEL PUMP COVER

main23122-34020i2T#..TA40197708-198107

main23122-41030i18R#..RA40197708-198107

23123SCREW, COVER SET, NO.1

main93319-15014i2T#..TA40197708-198107

COVER SET

main93319-15016i18RG..RA40197708-198107

BODY SET

23152SPRING, ROCKER ARM

main23152-30020i2T#..TA40197708-198107

main23152-34040i18RG..RA40197708-198107

9161160832

main91611-60832

12 parts on this diagram · 5 diagrams in section
