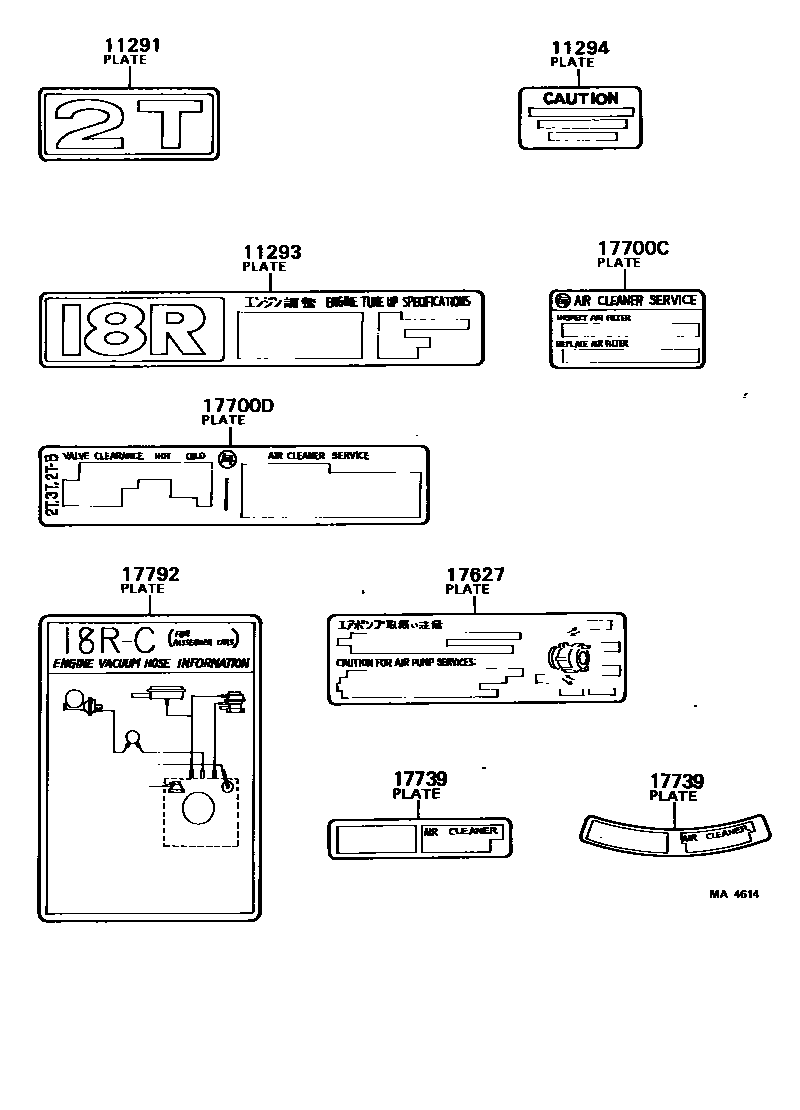

CAUTION PLATE & NAME PLATE (ENGINE)

11291PLATE, ENGINE NAME

main11291-26020i2T..TA40197708-198107

2T

main11291-26030i2TB..TA40197708-198107

2T-B

main11291-88222i2TG..TA40197708-198107

2T-G

main11291-88230i18RG..RA40197708-198107

18R-G

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-34036i18RC..RA40197708-198107

18R-C

main11293-34071i18R..RA40197708-198107

18R

11294PLATE, ENGINE CAUTION, NO.2

main11294-34020i18RC..RA40197708-198107

17627PLATE, AIR PUMP CAUTION, NO.1

main90917-07066i18RC..RA40197708-198107

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main90917-07070i18R,18RC..RA40197708-198008

sub90917-07084

main90917-07084i18R,18RC..RA40198008-198107

17700DPLATE, ENGINE CAUTION

main11293-25025i2T,2TB..TA40197708-197808

sub11293-25026

main11293-25026i2T,2TB..TA40197808-198010

sub11293-25027

main11293-25027i2T,2TB..TA40198010-198107

main11293-26150i18RG,2TG..RA40,TA40197908-198010

main11293-26151i18RG,2TG..RA40,TA40198010-198107

main11293-88223i2TG..TA40197708-197908

main11293-88250i18RG..RA40197708-197908

17739PLATE, AIR CLEANER PART NUMBER

main17739-26030i2TB..TA40..RHD..EUG197801-198010

ENGLAND,W/O HOT AIR INTAKE

main17739-26040i2TB..TA40..RHD..EUG197801-198010

ENGLAND SPEC,W/HOT AIR INTAKE

main17739-34010i18RG,2TG..RA40,TA40..RHD..EUG197801-197809

ENGLAND SPEC

main17739-34011i18RG,2TG..RA40,TA40..RHD..EUG197809-198011

ENGLAND SPEC

main17739-34040i18R..RA40..RHD..EUG197908-198011

ENGLAND SPEC,W/HOT AIR INTAKE

main17739-34050i18R..RA40..RHD..EUG197908-198011

ENGLAND,W/O HOT AIR INTAKE

main17739-36010i18R..RA40..RHD..EUG197801-197908

ENGLAND,W/O HOT AIR INTAKE

main17739-36020i18R..RA40..RHD..EUG197801-197908

ENGLAND SPEC,W/HOT AIR INTAKE

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-34060i18RC..RA40197708-197908

main17792-34061i18RC..RA40197908-198107

main17792-34140i18R..RA40..EUG197908-198107

HONG KONG SPEC

8 parts on this diagram · 1 diagram in section
