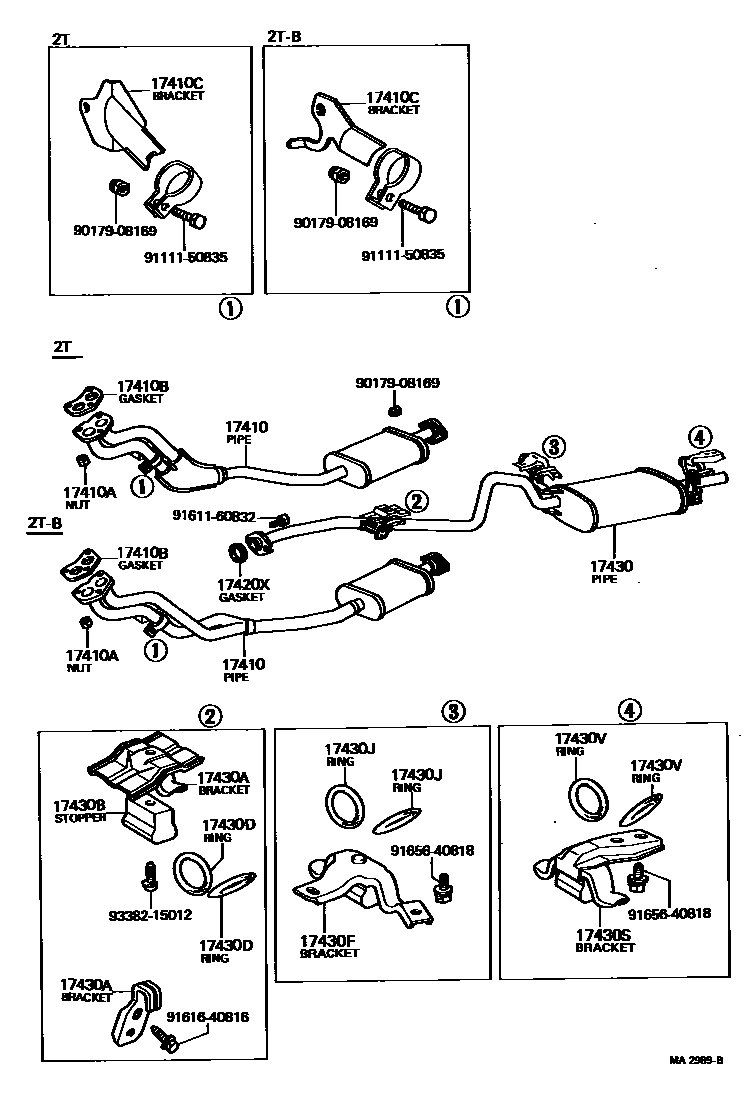

EXHAUST PIPE

0001 1 0002 1 0003 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-26100i2TB,2TG..TA40197708-197908

main17410-26190i2T..TA40197708-197908

main17410-26230i2T,2TB..TA40197908-198107

main17410-26300i2TG..TA40197908-198107

main17410-34300i18R,18RC..RA40197708-197908

main17410-34310i18RG..RA40197708-197908

main17410-34370i18R,18RC..RA40..EUR,GEN197908-198107

main17410-34380i18RG..RA40197908-198107

main17410-34440i18RC..RA40..ARL198008-198107

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010i18R#,2T#..RA40,TA40197808-197811

main90179-10028i18R#,2T#..RA40,TA40197811-198107

main90179-10118i18R#,2T#..RA40,TA40197708-197808

17410BGASKET, EXHAUST PIPE

main17451-41020i18R#,2T#..RA40,TA40197708-198107

sub17451-28010

main90917-06005i18RC..RA40..ARL198008-198107

sub90917-06042

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-25030i2T..TA40197708-197908

main17571-26010i2TB,2TG..TA40197708-198107

main17571-26110i2T,2TB..TA40197908-198107

main17571-34031i18RC..RA40..ARL198008-198107

main17571-34060i18R#..RA40197708-198107

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06001i18R,18RC,2T..RA40,TA40197708-197908

sub90917-06038

main90917-06004i18RG,2TB,2TG..RA40,TA40197708-198107

sub90917-06039

17430PIPE ASSY, EXHAUST, TAIL

main17430-26310i18RG,2TB,2TG..RA40,TA40..EUG197708-197908

main17430-26320i18R,18RC,2T..RA40,TA40..EUR197708-197908

main17430-26340i18RC..RA40..ARL197708-197908

sub17430-26320

main17430-26360i18RG,2TB,2TG..RA40,TA40..GEN197708-197908

main17430-26530i18RG,2TG..RA40,TA40197908-198107

main17430-26550i18R,18RC,2T,2TB..RA40,TA40..ARL,EUR197908-198107

main17430-26560i18R,2T,2TB..RA40,TA40..GEN197908-198107

sub17430-26550

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17506-26050i18R#,2T#..RA40,TA40197708-198107

FRAME SIDE

main17561-26080i18R#,2T#..RA40,TA40197708-198107

MAFFLER SIDE

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main17591-36010i18R#,2T#..RA40,TA40197708-198107

sub17591-36011

sub90159-50207

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90301-34172i18R#,2T#..RA40,TA40197708-197908

sub90301-34207

main90301-34207i18R#,2T#..RA40,TA40197908-198107

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17507-26050i18R#,2T#..RA40,TA40197708-198107

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-34172i18R#,2T#..RA40,TA40197708-197908

sub90301-34207

main90301-34207i18R#,2T#..RA40,TA40197908-198107

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-26080i18R#,2T#..RA40,TA40197708-197908

main17508-26100i18R#,2T#..RA40,TA40197908-198107

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-34172i18R#,2T#..RA40,TA40197708-197908

sub90301-34207

main90301-34207i18R#,2T#..RA40,TA40197908-198107

9017908169

main90179-08169

9111150835

main91111-50835

9161160832

main91611-60832

9161640816

main91616-40816

9165640818

main91656-40818

9338215012

main93382-15012

19 parts on this diagram · 4 diagrams in section
