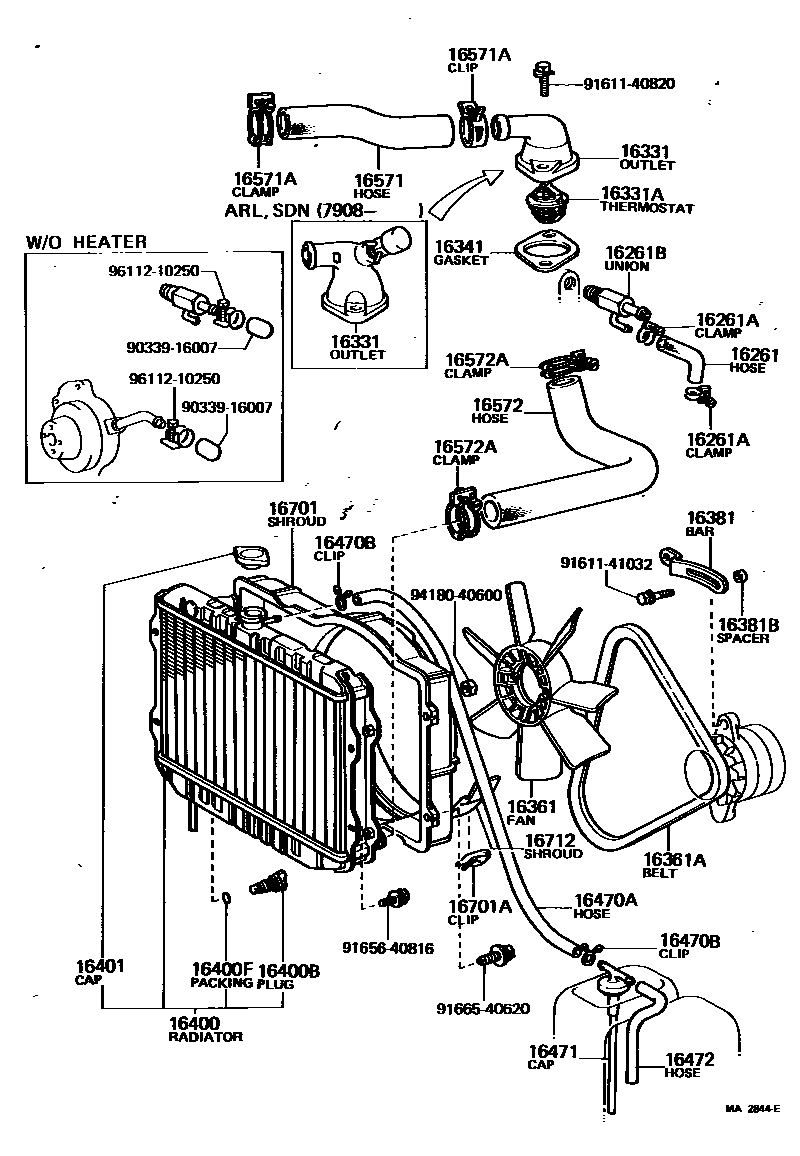

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub90467-20005
sub96134-41900
sub96134-52100
sub96112-10220
16261BUNION(FOR WATER BY-PASS HOSE)
16331ATHERMOSTAT
*WAX 82-95,FUJI-THOMSON
16341GASKET, WATER OUTLET
sub16341-13011
sub16341-13040
sub16341-13010
sub16341-38012
sub16341-38010
sub16341-88280
16361FAN
4 BLADES
16361ABELT, V(FOR FAN & ALTERNATOR)
L=840
L=850
L=860
L=885
L=840
16381BAR, FAN BELT ADJUSTING
16381BSPACER, FAN BELT ADJUSTING BAR
16400RADIATOR ASSY
sub16400-26310
MIDDLE EAST SPEC
FIN PITCH=4.5
MIDDLE EAST SPEC,FIN PITCH=4.0
MIDDLE EAST SPEC,FIN PITCH=3.5
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
sub96711-19007
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=900
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
RADIATOR SIDE
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
RADIATOR OUTLET SIDE
RADIATOR SIDE,ID=45
RADIATOR SIDE,ID=46
RADIATOR OUTLET SIDE
ENGINE SIDE,ID=48
ENGINE SIDE,ID=49
16701ACLIP(FOR FAN SHROUD)
W/COOLER
W/COOLER
16712SHROUD, FAN, NO.2
W/COOLER
W/COOLER
W/COOLER
9033916007
main90339-16007
9161140820
main91611-40820
9161141032
main91611-41032
9165640816
main91656-40816
9166540620
main91665-40620
9418040600
main94180-40600
9611210250
main96112-10250
33 parts on this diagram · 6 diagrams in section
