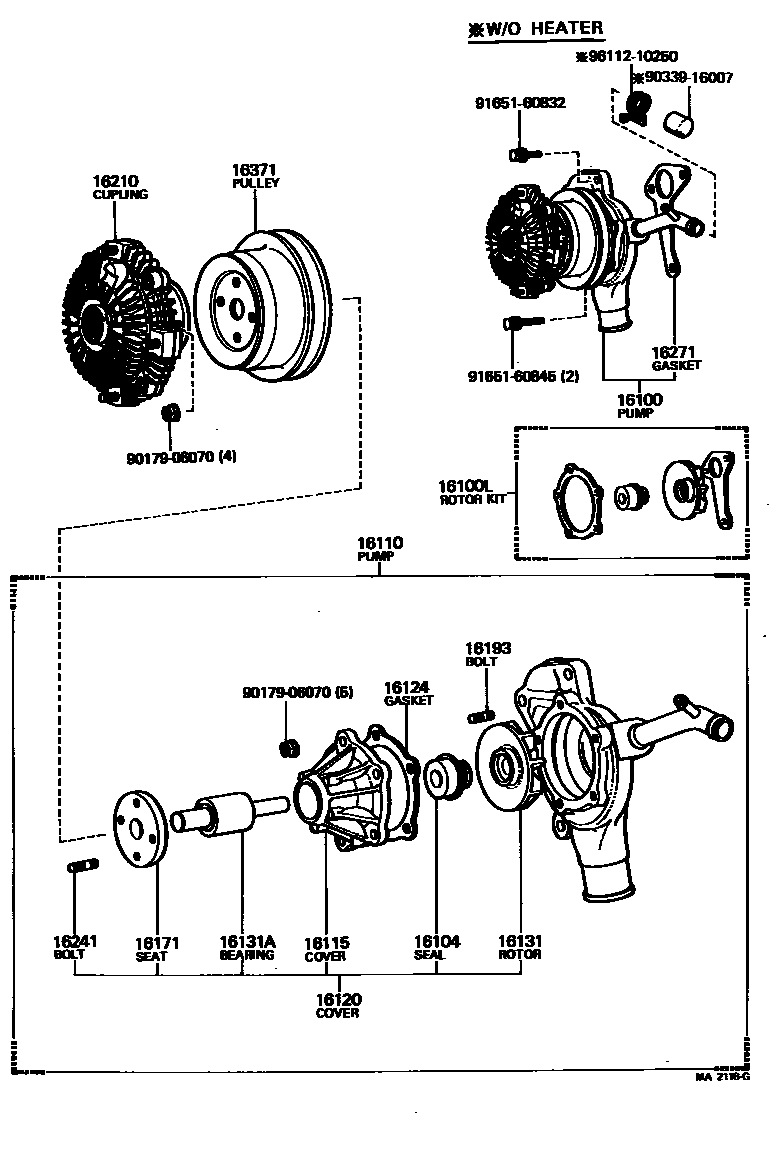

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-28010i2T,2TB..TA40197708-197801

sub16100-28020

main16100-28020i2T,2TB..TA40197801-198107

main16100-39226i18RG..RA40197708-197808

sub16100-39227

main16100-39227i18RG..RA40197808-198107

sub16100-39228

main16100-39236i18R,18RC..RA40..MTM197708-198107

sub16100-39237

main16100-39236i18R..RA40..RHD..3FC..GEN197912-198107

HONG KONG SPEC

sub16100-39237

main16100-39295i18R..RA40..3FC..GEN197905-198107

sub16100-39296

main16100-88221i2TG..TA40197708-197908

main16100-88260i2TG..TA40197908-198107

16100LROTOR KIT, WATER PUMP

main04162-28010i2T#..TA40197708-198107

sub04162-28011

main04162-34010i18R#..RA40197708-198107

sub04162-34011

16104SEAL SET, WATER PUMP

main16104-22010i2TG..TA40197708-197908

main16104-41110i18R#..RA40197708-198107

sub16104-41111

main16104-41111i2TG..TA40197911-198107

sub16104-15020

16110PUMP ASSY, WATER, W/O COUPLING

main16110-28010i2T,2TB..TA40197708-198107

main16110-34100i18R,18RC..RA40197708-198107

sub16110-34140

main16110-88251i18RG..RA40197708-197808

main16110-88252i18RG..RA40197808-198107

sub16110-88251

main16110-88260i2TG..TA40197908-198107

16115COVER, WATER PUMP

main16115-41110i18R#..RA40197708-198107

16120COVER ASSY, WATER PUMP

main16120-34100i18R#..RA40..ARL,EUR197708-198107

sub16120-34140

main16120-34100i18R..RA40..RHD..3FC..GEN197912-198107

HONG KONG SPEC

sub16120-34140

main16120-34101i18R..RA40..3FC..GEN197905-198107

sub16120-34100

16124GASKET, WATER PUMP COVER

main16129-33030i18R#..RA40197708-198107

sub16129-33031

16131ROTOR, WATER PUMP

main16131-26010i2T#..TA40197708-198107

main16131-41110i18R#..RA40197708-198107

sub16131-41130

16131ABEARING, WATER PUMP

main16140-38011i2T#..TA40197708-198107

sub90369-30066

main90369-30005i18R#..RA40197708-198107

WPB 16112R-4RS

sub90029-36837

16171SEAT, WATER PUMP PULLEY

main16171-24030i18R#..RA40197708-198107

main16171-26021i2T,2TB..TA40197708-198107

main16171-31030i2TG..TA40197708-197908

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-33030i18R#..RA40197708-198107

L=20.5,S=5.5&9

16210COUPLING ASSY, FLUID

main16210-28010i2T,2TB..TA40197708-197801

sub16210-28020

main16210-28020i2T,2TB..TA40197801-198107

main16210-34101i18R,18RC..RA40..ARL,EUR197708-198107

sub16210-34102

main16210-34102i18R..RA40..RHD..3FC..GEN197912-198107

HONG KONG SPEC

main16210-34102i18RG..RA40197808-198107

main16210-34130i18R..RA40..3FC..GEN197905-198107

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-33030i18R#..RA40197708-198107

main16241-28020i2TG..TA40197911-198107

main90116-06008i2T#..TA40197708-198107

sub16241-28020

16271GASKET, WATER PUMP

main16129-25010i2T#..TA40197708-197911

sub16129-25011

main16129-25011i2T,2TB..TA40197904-198107

sub16129-25012

main16271-33010i18R#..RA40197708-198107

sub16271-33011

16371PULLEY, FAN

main16173-26021i2TG..TA40197908-198107

main16173-28010i2T,2TB..TA40197708-198107

main16173-34100i18R,18RC..RA40197708-198107

main16173-88251i18RG..RA40197708-198107

main16371-25010i2TG..TA40197708-197908

9017906070

main90179-06070

9033916007

main90339-16007

9165160832

main91651-60832

9165160845

main91651-60845

9611210250

main96112-10250

20 parts on this diagram · 4 diagrams in section
