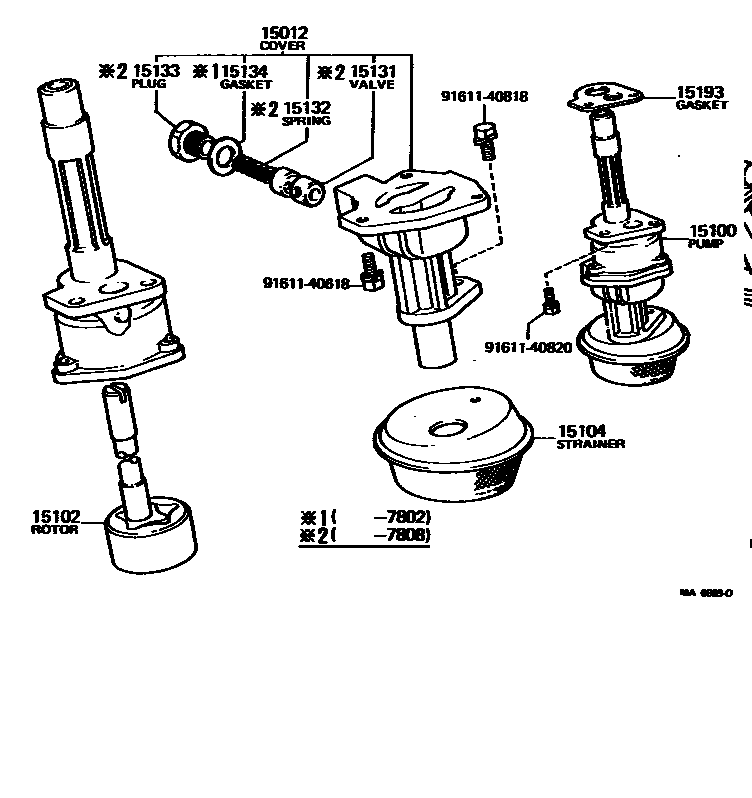

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15012COVER SUB-ASSY, OIL PUMP

main15012-33010i18RG..RA40197708-198107

main15012-33011i18R,18RC..RA40197802-198107

15100PUMP ASSY, OIL

main15100-25020i2T#..TA40197708-198107

main15100-33011i18R,18RC..RA40197708-198105

sub15100-33012

main15100-33012i18R,18RC..RA40198105-198107

main15100-88211i18RG..RA40197708-197902

sub15100-88212

sub15193-33011

main15100-88212i18RG..RA40197902-198107

15102ROTOR SET, OIL PUMP

main15102-25010i2T#..TA40197708-198107

main15102-33011i18R,18RC..RA40197708-197808

sub15102-36010

main15102-36010i18R,18RC..RA40197808-198105

main15102-36011i18R,18RC..RA40198105-198107

main15102-88211i18RG..RA40197708-197902

sub15102-88212

main15102-88212i18RG..RA40197902-198107

15104STRAINER SUB-ASSY, OIL

main15104-33010i18R#..RA40197708-198107

15115COVER, OIL PUMP

main15012-25020i2T#..TA40197708-198107

15131VALVE, OIL PUMP RELIEF

main15131-22010i2T#..TA40197708-198107

main15131-41010i18R#..RA40197708-197808

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i18R#..RA40197708-198107

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i18R#..RA40197708-197901

main15133-41030i2T#..TA40197901-198107

sub15133-20010

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i18R#..RA40197708-197808

15135RETAINER, OIL PUMP RELIEF VALVE

15193GASKET, OIL PUMP

main15193-33010i18R#..RA40197708-197902

main15193-33011i18R,18RC..RA40197802-198107

15413PIPE, OIL PUMP OUTLET

15413AUNION(FOR OIL PUMP OUTLET PIPE)

15413BSLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)

15413CNUT, UNION(FOR OIL PUMP OUTLET PIPE)

9161140618

main91611-40618

9161140620

main91611-40620

9161140818

main91611-40818

9161140820

main91611-40820

9538104040

main95381-04040

20 parts on this diagram · 3 diagrams in section
