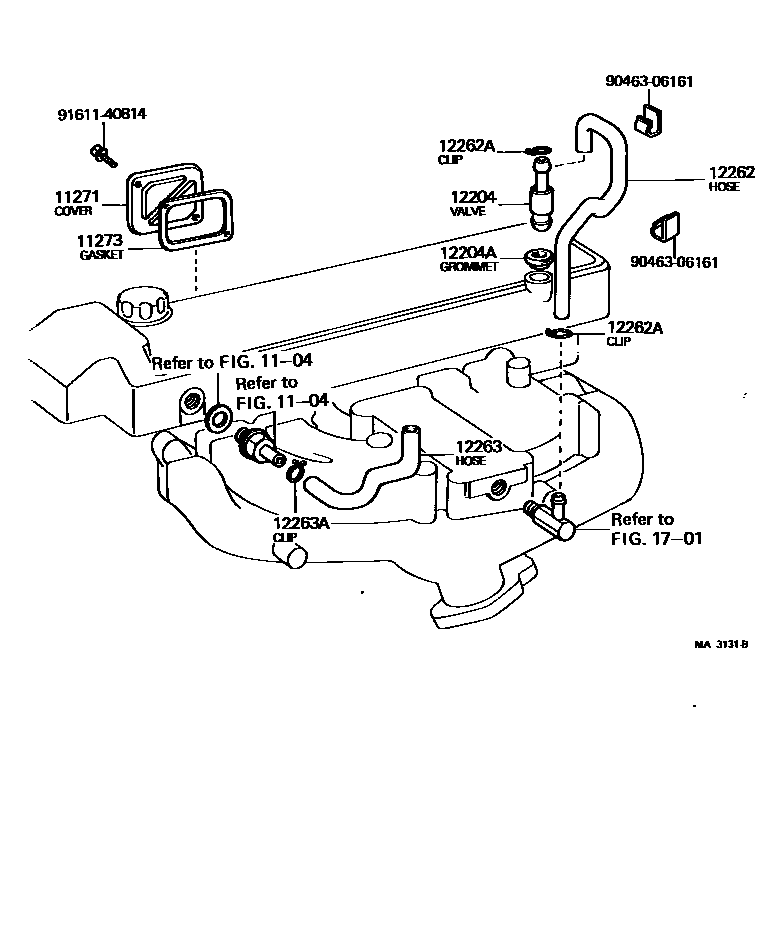

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

1104

11271COVER, CYLINDER BLOCK SIDE

main11271-33010i18R,18RC..RA40¥540197708-198107

11273GASKET, CYLINDER BLOCK SIDE COVER

main11273-33010i18R,18RC..RA40¥510197708-198107

12204VALVE SUB-ASSY, VENTILATION

main12204-15020i2T,2TB..TA40¥3,870197908-198107

sub12204-28010¥4,280

main12204-28010i2T,2TB..TA40¥4,280198008-198107

main12204-34010i18R,18RC..RA40197708-197908

sub12204-28010¥4,280

sub12204-35010¥4,270

main12204-88250i18RG..RA40197708-197908

main12204-88251i18RG..RA40¥3,710197908-198107

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18180i18R,18RC..RA40¥240197708-198107

12262HOSE, VENTILATION, NO.2

main12261-25011i2T..TA40¥2,030197708-197908

sub12261-25012¥2,080

main12261-25012i2T..TA40¥2,080197908-198107

main12261-25020i2TB..TA40¥2,060197708-197908

sub12261-25021¥1,870

main12261-25021i2TB..TA40¥1,870197908-198107

main12261-34070i18R,18RC..RA40¥2,250197708-197908

sub12261-34080¥2,280

main12261-34080i18R,18RC..RA40¥2,280197908-198107

main12263-88231i18RG..RA40197708-197908

main12263-88233i18RG..RA40¥1,200197908-198107

main90072-44552i2TG..TA40¥220197708-197908

main90445-15004i2TG..TA40197908-198107

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16010i18R,18RC..RA40¥250197708-198107

12263HOSE, VENTILATION, NO.3

main12261-88210i2TG..TA40¥2,250197708-197805

sub12261-88220¥2,030

main12261-88220i2TG..TA40¥2,030197805-198107

main12261-88231i18RG..RA40¥1,150197708-198107

main12262-25010i2T..TA40197708-198107

main12262-25020i2TB..TA40¥890197708-198107

main12262-34020i18R,18RC..RA40¥780197708-198107

12263ACLIP(FOR VENTILATION HOSE)

main90467-20020i18R,18RC..RA40¥190197708-198107

1701

9046306161

main90463-06161¥260

9161140814

main91611-40814¥130

12 parts on this diagram · 4 diagrams in section
