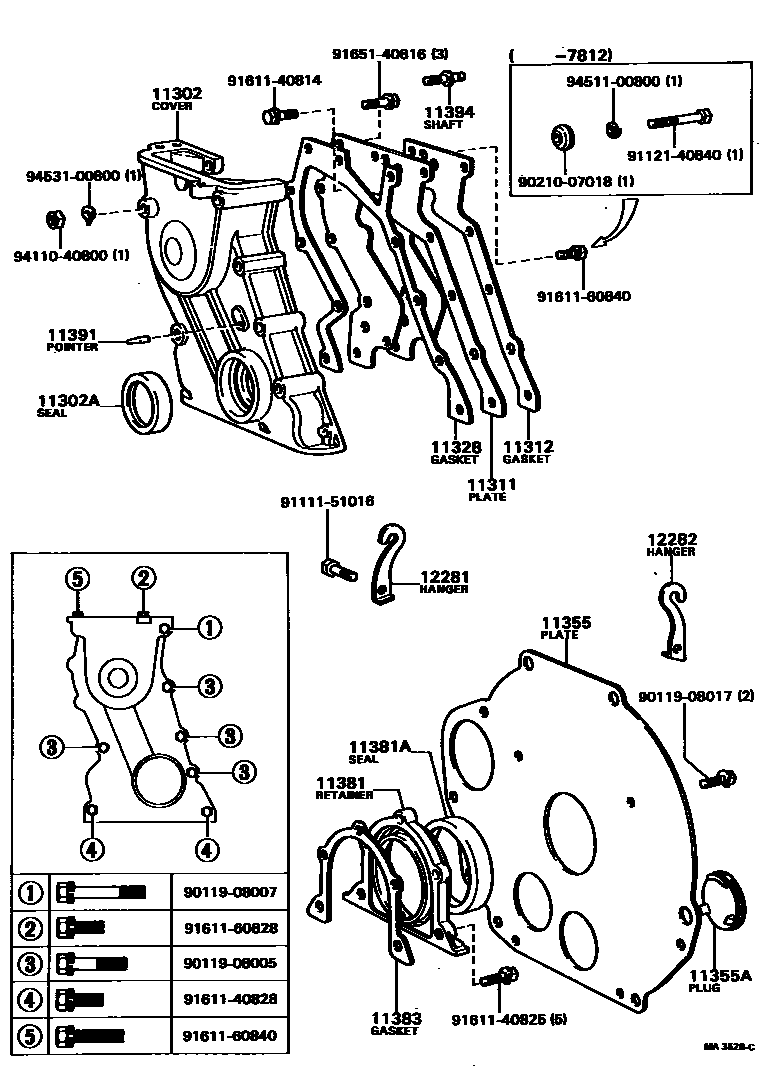

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-28010i2T,2TB..TA40197708-198107

main11321-34010i18R,18RC..RA40197708-198107

main11321-88220i2TG..TA40197708-198004

sub11321-88221

sub91611-40835

main11321-88221i2TG..TA40198004-198107

main11321-88252i18RG..RA40197708-198107

sub11321-88270

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38002i2T,2TB..TA40197708-197710

HTC3 38.5 58 11

sub90311-38013

main90311-38013i2T,2TB..TA40197710-198107

HTC 38.5 58 11

main90311-38111i2TG..TA40197708-197908

HTC3 38.5 58 11

sub90311-38013

main90311-45069i18R#..RA40197708-198107

TC3 45 68 12

sub90311-45002

11311PLATE, FRONT END

main11311-33011i18R#..RA40197708-198107

11312GASKET, FRONT END PLATE

main11312-33012i18R#..RA40197708-197912

sub11312-33014

main11312-33014i18R,18RC..RA40197912-198107

sub11312-33015

main11312-88270i18RG..RA40197908-198107

sub11312-88271

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-25010i2T,2TB..TA40197708-197904

sub11328-25011

main11328-25011i2T,2TB..TA40197904-198107

sub11328-25012

main11328-33014i18R,18RC..RA40197708-197912

sub11328-33016

main11328-33016i18R,18RC..RA40197912-198107

sub11328-33017

main11328-88220i2TG..TA40197708-198107

sub11328-88221

main11328-88270i18RG..RA40197908-198107

sub11328-88271

11355PLATE, REAR END

main11355-25011i2T#..TA40..MTM197708-198008

sub11355-25012

main11355-25012i2T#..TA40..MTM198008-198107

main11355-25022i2T..TA40..3FC197708-198008

sub11355-25023

main11355-25023i2T..TA40..3FC198008-198107

main11355-33012i18R#..RA40..MTM197708-198107

main11355-36010i18R,18RC..RA40..3FC197708-198107

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01128i18R,18RC..RA40..3FC197708-198107

main90950-01160i2T..TA40..3FC197708-198107

11381RETAINER, ENGINE REAR OIL SEAL

main11381-25010i2T#..TA40197708-198107

main11381-33010i18R#..RA40197708-197712

main11381-38010i18R#..RA40197712-198107

11381ASEAL, ENGINE REAR OIL

main90311-75113i2T#..TA40197708-198107

HTC75 100 13

sub90311-75004

main90311-80001i18R#..RA40197712-198107

TC80 100 12

main90311-80068i18R#..RA40197708-197712

TC80 100 12

sub90311-80001

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i2T#..TA40197708-198107

main11383-33010i18R#..RA40197708-198107

sub11383-35010

11391POINTER, TIMING

main11391-40010i18R#..RA40197708-198107

11394SHAFT, CHAIN TENSHIONER

main11394-34010i18R#..RA40197708-198107

12281HANGER, ENGINE, NO.1

main12281-26010i2T,2TB..TA40197708-198107

main12281-88220i18RG..RA40197708-198107

main12282-36010i18R,18RC..RA40197708-198107

12282HANGER, ENGINE, NO.2

main12281-26010i2T..TA40197708-198107

main12281-26020i2TB..TA40..LHD197708-198107

main12281-88220i18RG..RA40197708-198107

main12282-36010i18R,18RC..RA40197708-198107

9011908005

main90119-08005

9011908007

main90119-08007

9011908017

main90119-08017

9021007018

main90210-07018

9111151016

main91111-51016

9112140840

main91121-40840

9161140814

main91611-40814

9161140825

main91611-40825

9161140828

main91611-40828

9161160828

main91611-60828

9161160840

main91611-60840

9165140816

main91651-40816

9411040800

main94110-40800

9451100800

main94511-00800

9453100800

main94531-00800

29 parts on this diagram · 5 diagrams in section
