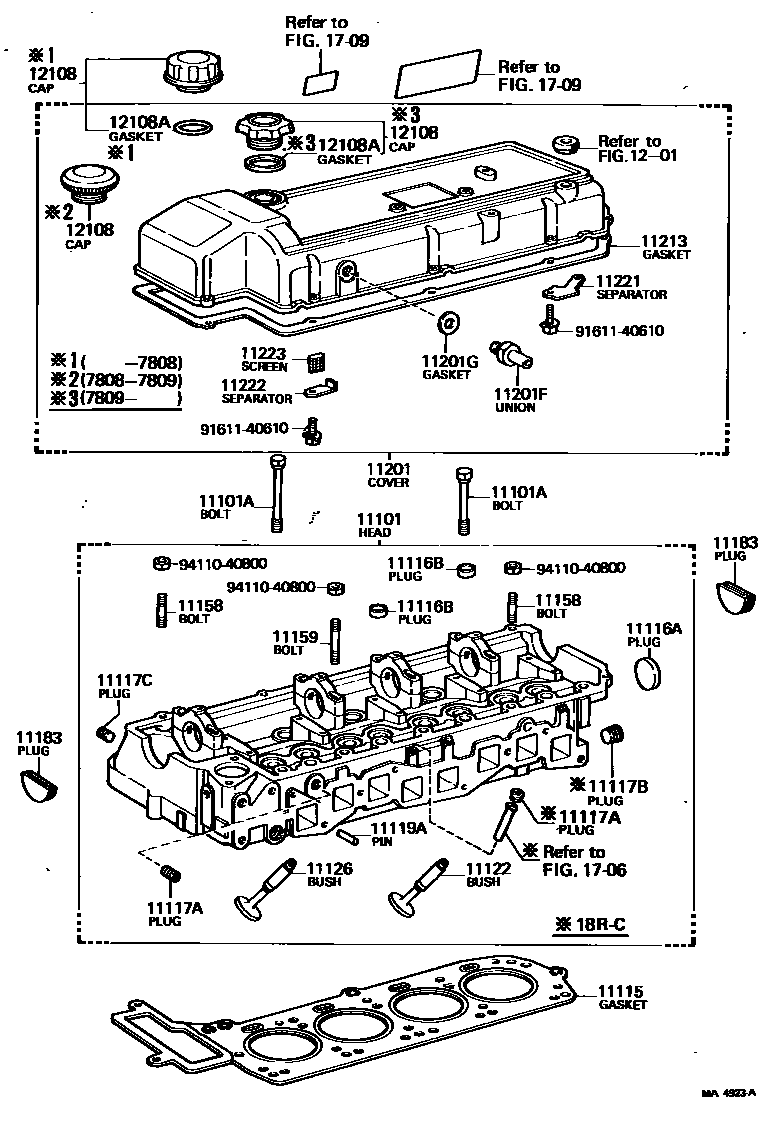

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-29229
sub11101-29296
sub11101-29375
sub11101-29356
sub11101-39267
sub11101-34113
11101ABOLT(FOR CYLINDER HEAD SET)
*12-1.25PX146-22
*12-1.25PX80-24
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11117BPLUG, W/HEAD TAPER SCREW, NO.2
W/O HEATER
11117CPLUG, W/HEAD TAPER SCREW, NO.3
11119APIN, STRAIGHT, NO.1
L=23,OD=8
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD
STD
STD
O/S 0.05,O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
STD,STD
STD
O/S 0.05,O/S 0.05
O/S 0.05
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
L=32,S=7&14
L=28,S=8&15
L=27,S=9&9
L=29,S=9&9
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
L=58.5,S=18&17.5
L=34.7,S=13&13.7
L=51,S=16&16
11183PLUG, SEMICIRCULAR
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-29068
sub11201-29126
sub11201-39067
sub11201-39176
sub11201-39177
sub11201-39178
sub11201-39216
11201FUNION(FOR POSITIVE CRANKCASE VENTILATION)
11201GGASKET(FOR POSITIVE CRANKCASE VENTILATION)
11221SEPARATOR, CYLINDER HEAD COVER, NO.1
11222SEPARATOR, CYLINDER HEAD COVER, NO.2
11223SCREEN,CYLINDER HEAD COVER
1201
12108AGASKET(FOR OIL FILLER CAP)
1706
1709
9161140610
main91611-40610
9411040800
main94110-40800
28 parts on this diagram · 5 diagrams in section
