ENGINE OVERHAUL GASKET KIT

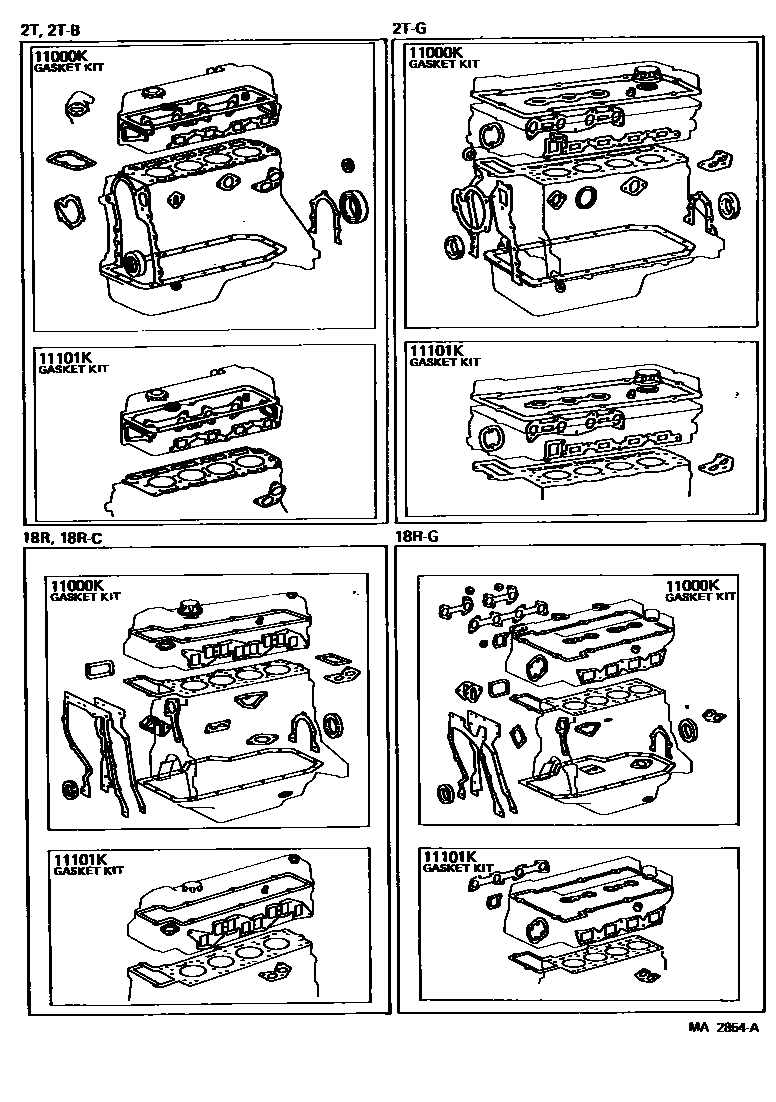

Parts diagram
11000KGASKET KIT, ENGINE OVERHAUL
main04111-26027i197708-197808
sub04111-28011
main04111-27031i197708-197903
sub04111-27032
main04111-27032i197903-197908
sub04111-27033
main04111-27050i197908-197910
sub04111-27051
main04111-27051i197910-198107
sub04111-27034
main04111-28011i197808-197810
sub04111-28012
main04111-28012i197810-197908
sub04111-28013
main04111-28013i197908-198008
sub04111-28018
main04111-28014i198008-198101
sub04111-28015
main04111-28015i198101-198107
sub04111-28016
main04111-34044i197708-197712
sub04111-34045
main04111-34045i197712-197809
sub04111-34113
main04111-34046i197809-198107
sub04111-34114
main04111-34062i197712-197808
sub04111-34063
main04111-34080i197708-197712
sub04111-34062
main04111-34090i197808-198107
sub04111-34091
11101KGASKET KIT, ENGINE VALVE GRIND
main04112-26026i197708-197808
sub04112-28011
main04112-27031i197708-197903
sub04112-27032
main04112-27032i197903-197910
sub04112-27033
main04112-27033i197910-198107
sub04112-27034
main04112-28011i197808-197810
sub04112-28012
main04112-28012i197810-197908
sub04112-28013
main04112-28013i197908-198008
sub04112-28017
main04112-28014i198008-198101
sub04112-28015
main04112-28015i198101-198107
sub04112-28016
main04112-34034i197708-197809
sub04112-34092
main04112-34060i197708-198107
sub04112-34061
main04112-34070i197809-198107
sub04112-34071

2 parts on this diagram · 1 diagram in section
