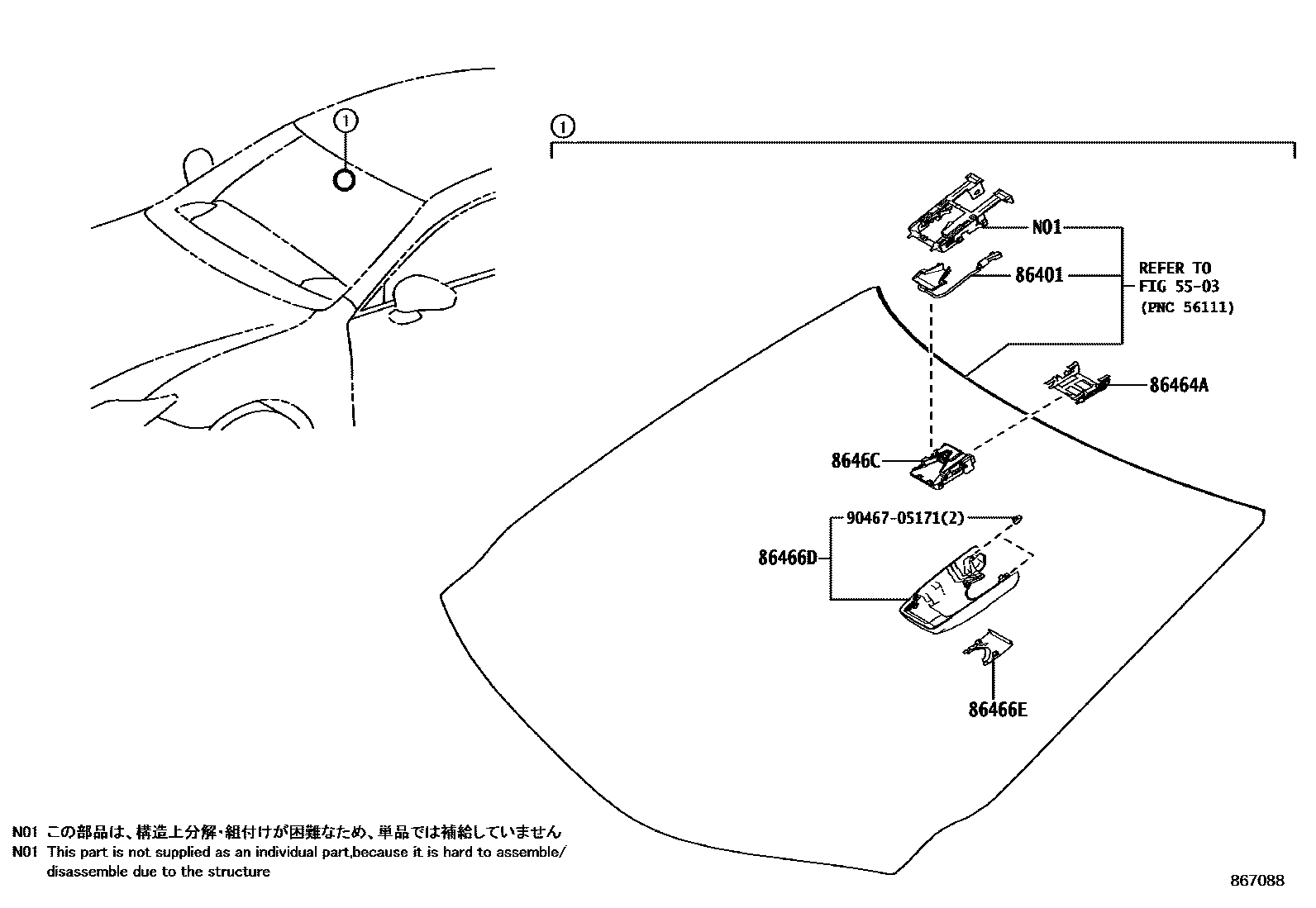

PRE-COLLISION SYSTEM

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-24010iUSC10..RHD202111-202301

main86401-24020iUSC10202301-202403

86464ALATCH, FORWARD RECOGNITION

main86464-26010iUSC10202301-202403

main86464-48011iUSC10..RHD202111-202301

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-24050iUSC10..LHD202111-202403

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-24060iUSC10..RHD202111-202403

8646CCAMERA, FORWARD RECOGNITION

main8646C-24022iUSC10..RHD202111-202301

main8646C-24040iUSC10202301-202403

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
