NAVIGATION & FRONT MONITOR DISPLAY

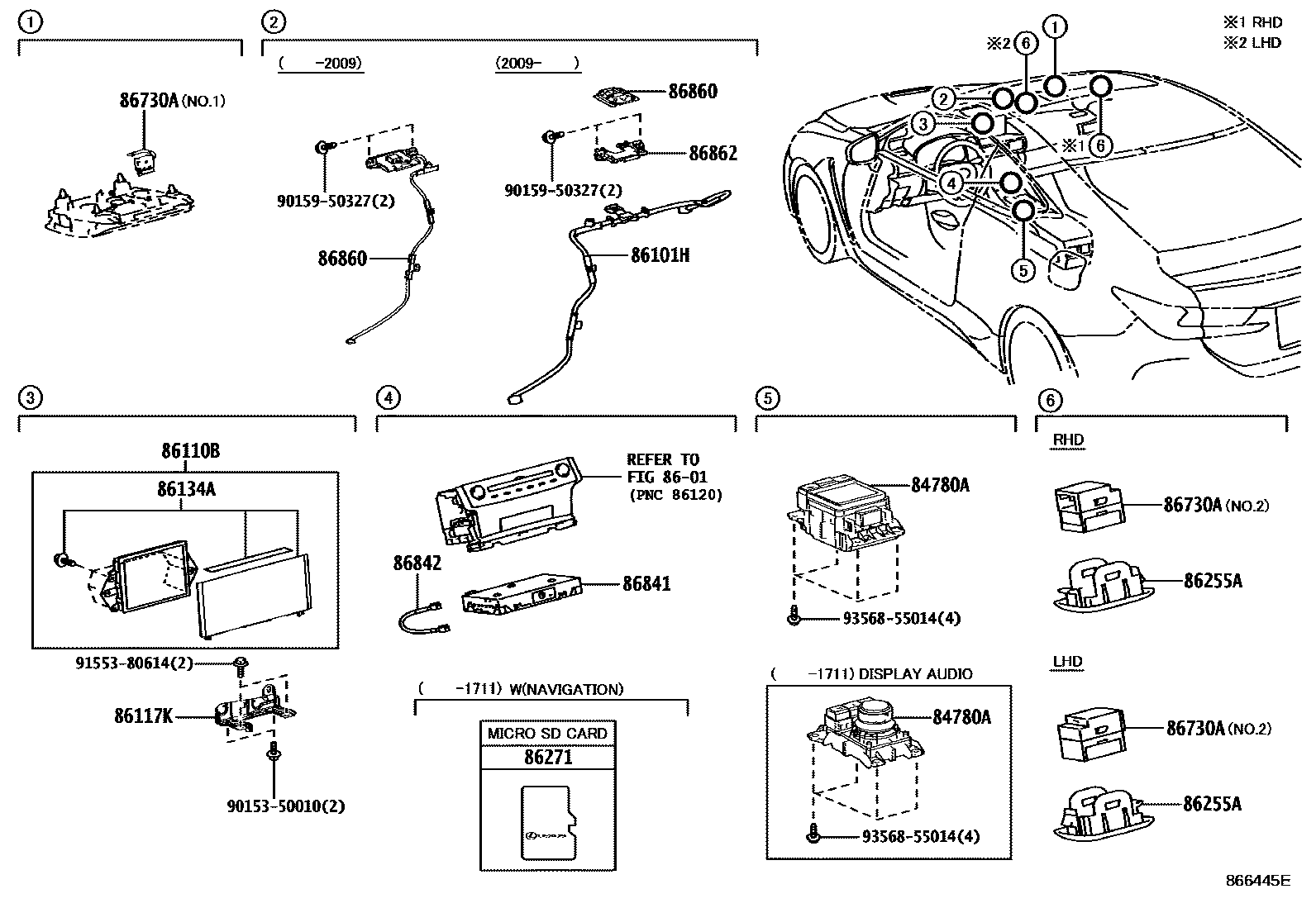

Parts diagram
84780ACONTROLLER ASSY, REMOTE OPERATION
main84780-24010i201409-201711
main84780-24090i201409-201711
main84780-24120i201711-201902
ISRAEL SPEC&ELECTRO MULTI VISION-WITH & WITHOUT(NAVIGATION)
main84780-24120i201711-201902
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main84780-24120i201903-202008
ISRAEL SPEC&ELECTRO MULTI-VISION-WITH(MEMORY CARD NAVIGATION)
main84780-24120i201903-202008
REUNION SPEC&ELECTRO MULTI-VISION-WITH(MEMORY CARD NAVIGATION)
main84780-24120i201903-202008
ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)
main84780-24130i201711-202008
main84780-53090i202009-202403
8601
86101HCORD SUB-ASSY, ANTENNA
main86101-24720i202009-202301
main86101-24850i202009-202301
main86101-53G50i202301-202403
main86101-53G60i202301-202403
86110BMULTI-DISPLAY ASSY
main86110-24140i201711-202009
PANASONIC
main86110-24221i202009-202301
DENSO
main86110-24230i201711-202301
DENSO
main86110-53010i201409-201507
DENSO
sub86110-53011
main86110-53011i201508-201706
DENSO
sub86110-53012
main86110-53012i201706-201711
DENSO
main86110-53391i202301-202403
DENSO
86117KBRACKET, MULTI-DISPLAY, NO.1
main86117-53030i201409-201711
main86117-53071i201711-202301
main86117-53091i201711-202301
main86117-53120i202301-202403
86134APARTS, MULTI-DISPLAY
main86134-53030i201409-201711
main86134-53050i202009-202301
main86134-53060i201711-202301
86255ACASE, MICROPHONE, NO.1
main86255-78010-C1i201711-201902
BLACK,TRIM0#,1#,2#,3#
main86255-78010-C1i201903-202009
BLACK,TRIM0#,2#,3#
main86255-78010-C1i201903-202403
BLACK,TRIM0#,2#,3#,8#
86271DISC, DISC PLAYER
main86271-30A92i201501-201506
CYPRUS SPEC
sub86271-30A93
main86271-30A93i201507-201512
CYPRUS SPEC
sub86271-48349
main86271-30A94i201601-201606
UKRAINE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-48349
main86271-30A94i201601-201606
AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-48349
main86271-30A94i201601-201606
CYPRUS SPEC
sub86271-48349
main86271-30A94i201601-201606
RUSSIA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-48349
main86271-30A94i201601-201606
RUSSIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-48349
main86271-30A94i201601-201606
UKRAINE SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-48349
main86271-30A94i201601-201606
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-48349
main86271-30A95i201607-201702
AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A96
main86271-30A95i201607-201702
RUSSIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A96
main86271-30A95i201607-201702
UKRAINE SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A96
main86271-30A95i201607-201702
UKRAINE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A96
main86271-30A95i201607-201702
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A96
main86271-30A95i201607-201702
CYPRUS SPEC
sub86271-30A96
main86271-30A96i201702-201708
UKRAINE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A97
main86271-30A96i201702-201708
CYPRUS SPEC
sub86271-30A97
main86271-30A96i201702-201708
RUSSIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A97
main86271-30A96i201702-201708
UKRAINE SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A97
main86271-30A96i201702-201708
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A97
main86271-30A96i201702-201708
AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A97
main86271-30A96i201702-201708
KAZAKHSTAN SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARDNAVIGATION)
sub86271-30A97
main86271-30A97i201708-201711
KAZAKHSTAN SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARDNAVIGATION)
sub86271-30A98
main86271-30A97i201708-201711
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A98
main86271-30A97i201708-201711
AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A98
main86271-30A97i201708-201711
CYPRUS SPEC
sub86271-30A98
main86271-30A97i201708-201711
RUSSIA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A98
main86271-30A97i201708-201711
UKRAINE SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A98
main86271-30A97i201708-201711
UKRAINE SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A98
main86271-78031i201409-201412
CYPRUS SPEC
sub86271-30A92
86730AMICROPHONE ASSY, TELEPHONE
main86730-11010i201711-201902
RUSSIA SPEC,NO.2
sub86730-48110
main86730-11010i201711-202102
NO.2
sub86730-48110
main86730-11010i201711-201902
KAZAKHSTAN SPEC,NO.2
sub86730-48110
main86730-48110i202103-202403
NO.2
main86730-53070i201409-201711
NO.1
main86730-53080i201409-201711
NO.1
86841COMPUTER, NAVIGATION
main86840-0W031i201711-201712
REUNION SPEC&ELECTRO MULTI VISION-WITH & WITHOUT(NAVIGATION)
sub86840-0W032
main86840-0W031i201711-201712
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86840-0W032
main86840-0W031i201711-201712
ISRAEL SPEC&ELECTRO MULTI VISION-WITH & WITHOUT(NAVIGATION)
sub86840-0W032
main86840-0W032i201903-202009
ELECTRO MULTI-VISION-WITH(DISPLAY AUDIO)
main86840-0W032i201903-202009
ISRAEL SPEC&ELECTRO MULTI-VISION-WITH(MEMORY CARD NAVIGATION)
main86840-0W032i201903-202009
REUNION SPEC&ELECTRO MULTI-VISION-WITH(MEMORY CARD NAVIGATION)
main86840-0W032i201712-201902
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86840-0W032i201712-201902
ISRAEL SPEC&ELECTRO MULTI VISION-WITH & WITHOUT(NAVIGATION)
main86840-0W032i201712-201902
REUNION SPEC&ELECTRO MULTI VISION-WITH & WITHOUT(NAVIGATION)
main86840-0W230i202009-202206
sub86840-0W231
main86840-0W231i202207-202403
86842WIRE, NAVIGATION, NO.1
main86842-24210i201711-201902
ELECTRO MULTI VISION-WITH & WITHOUT(NAVIGATION)
main86842-24210i201711-201902
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main86842-24210i201903-202403
86860ANTENNA ASSY, NAVIGATION
main86860-53070i201409-202009
main86860-53080i201409-202009
main86860-78010i202009-202403
86862BRACKET, NAVIGATION ANTENNA
main86862-24040i202009-202403
9015350010
main90153-50010
9015950327
main90159-50327
9155380614
main91553-80614
9356855014
main93568-55014

17 parts on this diagram · 1 diagram in section
