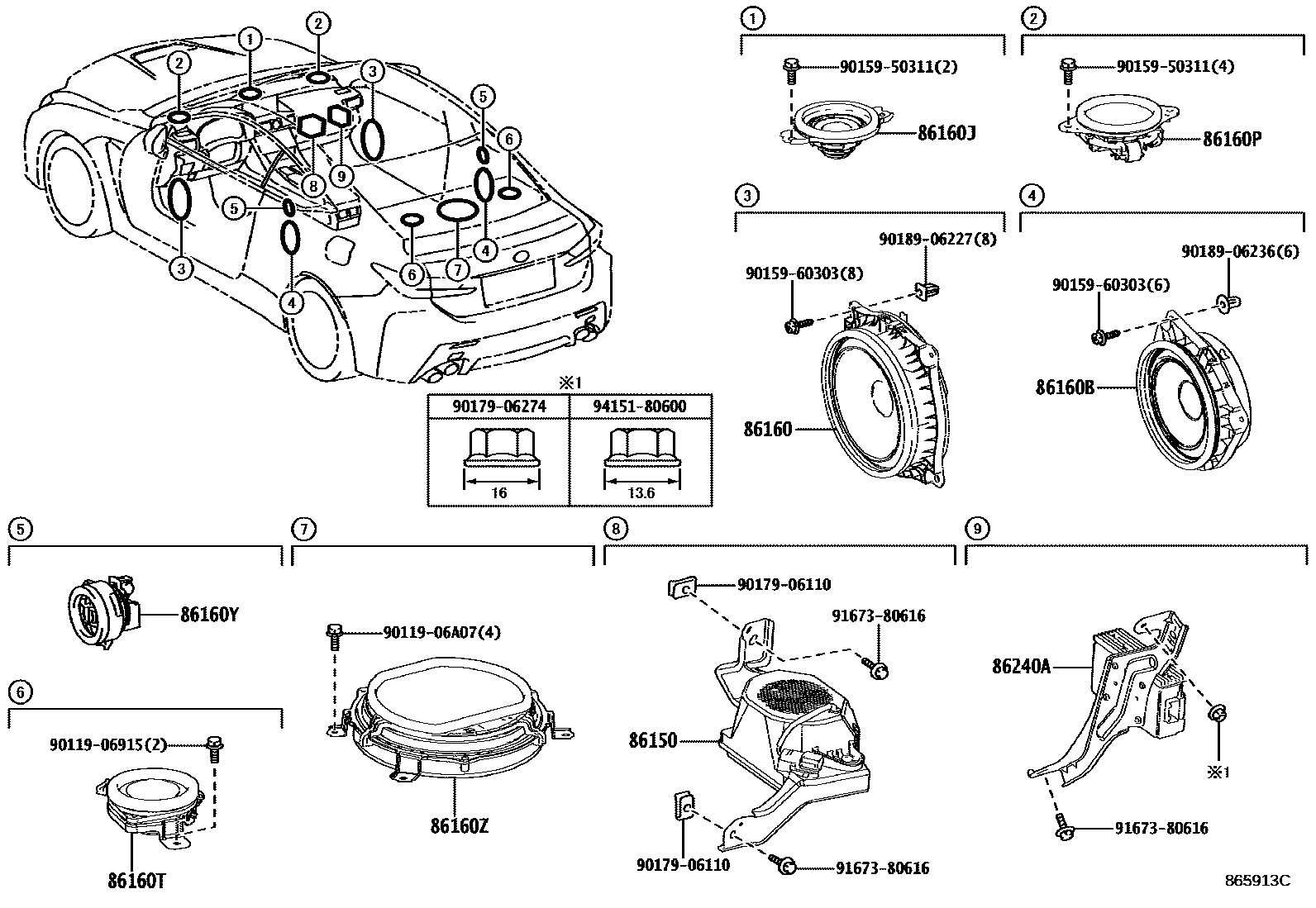

SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-24250

main86150-24260

86160SPEAKER ASSY, FRONT NO.1

main86160-0WX70×2supersedes 86160-53370iUSC10202111-202403

86160BSPEAKER ASSY, REAR

main86160-0WW30×2supersedes 86160-33820iUSC10202111-202403

86160JSPEAKER ASSY, FRONT NO.3

main86160-0WV80iUSC10202111-202301

main86160-33790iUSC10..RHD201409-201902

AUDIO-EMV & DVD & 10SPEAKER

main86160-78090iUSC10202301-202403

86160PSPEAKER ASSY, FRONT NO.2

main86150-53050×2iUSC10..LHD202009-202110

sub86160-33A40

main86160-0WV80×2iUSC10202111-202301

main86160-30D90×2iUSC10..RHD201409-201609

AUDIO-EMV & DVD & 10SPEAKER

main86160-48380×2supersedes 86160-33800iUSC10..RHD201609-201902

AUDIO-EMV & DVD & 10SPEAKER

main86160-78090×2iUSC10202301-202403

86160TSPEAKER ASSY, REAR HEADER

main86150-0W190×2iUSC10202111-202301

main86150-24230×2iUSC10202301-202403

86160YSPEAKER ASSY, REAR NO.2

main86160-0WX20×2iUSC10202111-202403

86160ZSPEAKER ASSY, REAR NO.3

main86160-0WW40supersedes 86160-30E50iUSC10202111-202403

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-24030iUSC10..LHD201409-201711

sub86240-24031

main86240-24140supersedes 86240-24140iUSC10..LHD201711-201902

9011906915

main90119-06915

9011906A07

main90119-06A07

9015950311

main90159-50311

9015960303

main90159-60303

9017906110

main90179-06110

9017906274

main90179-06274

9018906227

main90189-06227

9018906236

main90189-06236

9167380616

main91673-80616

9415180600

main94151-80600

19 parts on this diagram · 2 diagrams in section
