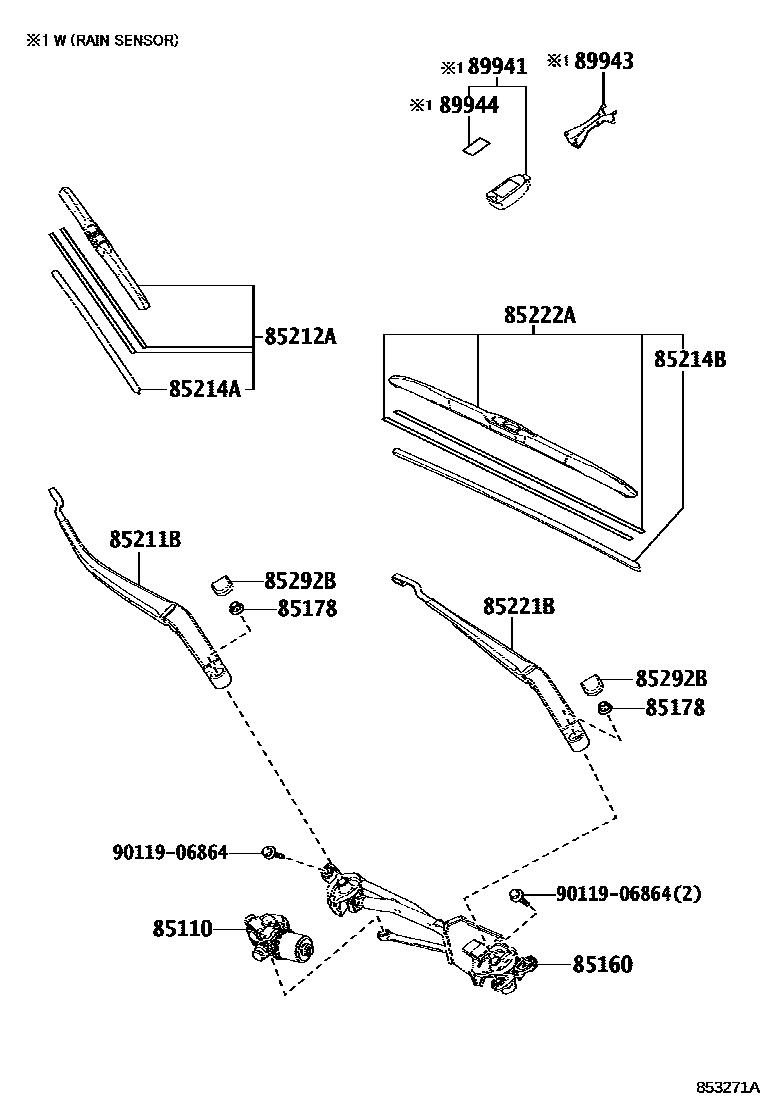

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-53050iUSC10..LHD201409-201902

main85110-53070iUSC10..RHD201409-201902

85160LINK ASSY, WINDSHIELD WIPER

main85150-24130iUSC10..RHD201903-202403

main85150-24140iUSC10..LHD201903-202403

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iUSC10201409-201902

85211BARM, FRONT WIPER, RH

main85211-24140iUSC10..RHD201903-202403

main85211-24150iUSC10..LHD201903-202403

85212ABLADE, FR WIPER, RH

main85212-24150iUSC10..RHD201409-201902

main85212-53100iUSC10..LHD201409-201902

85214ARUBBER, WIPER, RH

main85214-30380iUSC10..RHD201903-202403

main85214-33180iUSC10..LHD201409-201902

85214BRUBBER, WIPER, LH

main85214-30380iUSC10..LHD201409-201902

main85214-33180iUSC10..RHD201409-201902

85221BARM, FRONT WIPER, LH

main85221-24140iUSC10..RHD201409-201902

main85221-24150iUSC10..LHD201903-202403

85222ABLADE, FR WIPER, LH

main85222-24150iUSC10..LHD201903-202403

main85222-53080iUSC10..RHD201409-201902

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iUSC10201903-202403

89941SENSOR, RAIN

main89941-52010iUSC10..LHD201903-202403

89943COVER, RAIN SENSOR

main89943-24010iUSC10..LHD201409-201902

89944TAPE, RAIN SENSOR

main89944-42010iUSC10..LHD201409-201902

9011906864

main90119-06864

14 parts on this diagram · 1 diagram in section
