ABS & VSC

89183ASENSOR, YAWRATE

main89183-48020iUSC10201409-202403

main89183-50030iUSC10..RHD201903-202009

ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR)

89183BSENSOR, YAWRATE

main89183-24020iUSC10201409-201902

89189BBRACKET, YAWRATE SENSOR

main89189-53010iUSC10201409-202403

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-24050iUSC10201409-202403

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-24060iUSC10201409-202403

89545SENSOR, SPEED, REAR RH

main89545-24050iUSC10201409-202403

89546SENSOR, SPEED, REAR LH

main89546-24040iUSC10201409-202403

5532124040BRACKET, CHOKE WIRE

main55321-24040

9015950327

main90159-50327

9017906274

main90179-06274

9155180610

main91551-80610

91553A0612

main91553-A0612

9167180616

main91671-80616

9167380616

main91673-80616

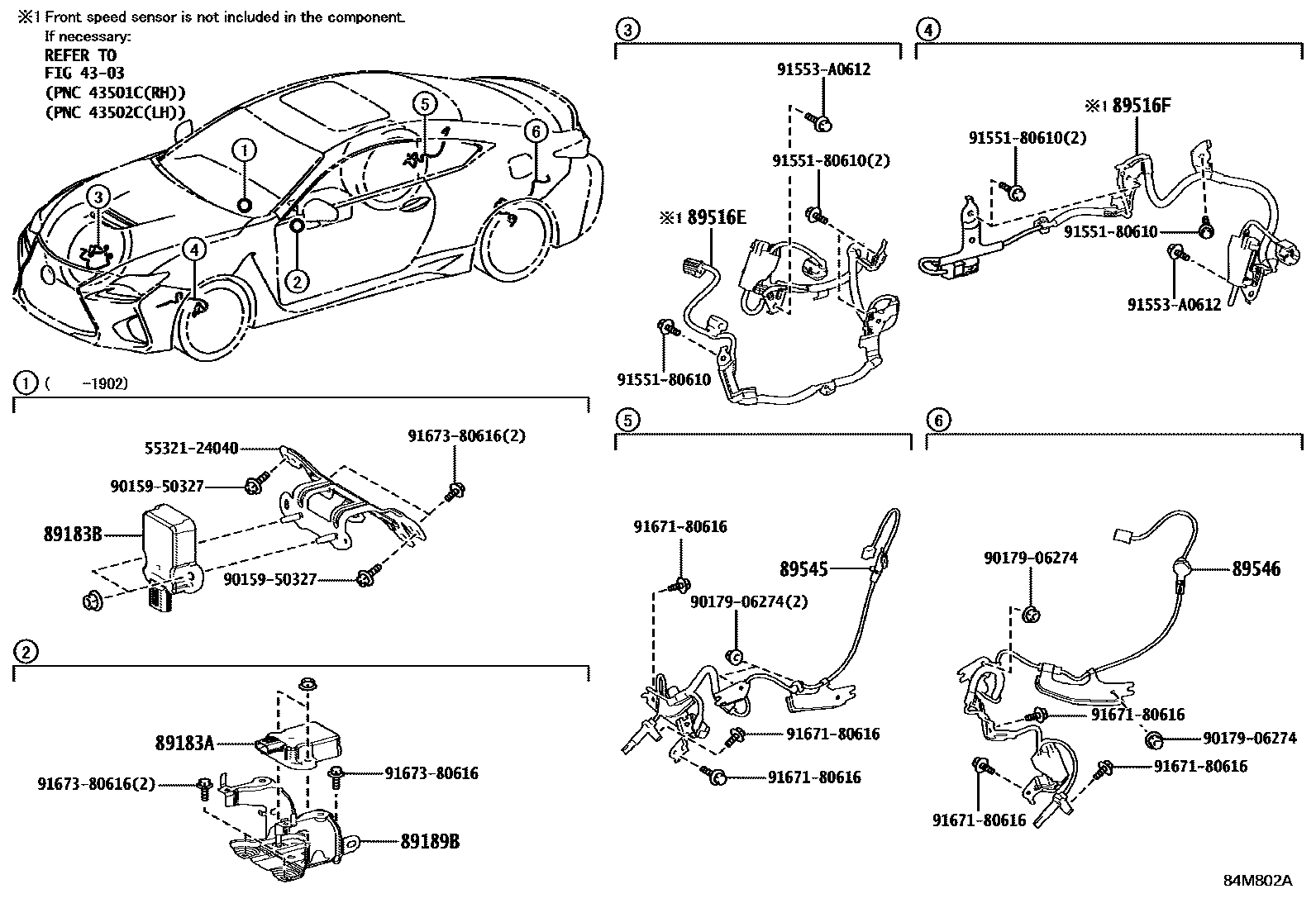

14 parts on this diagram · 1 diagram in section
