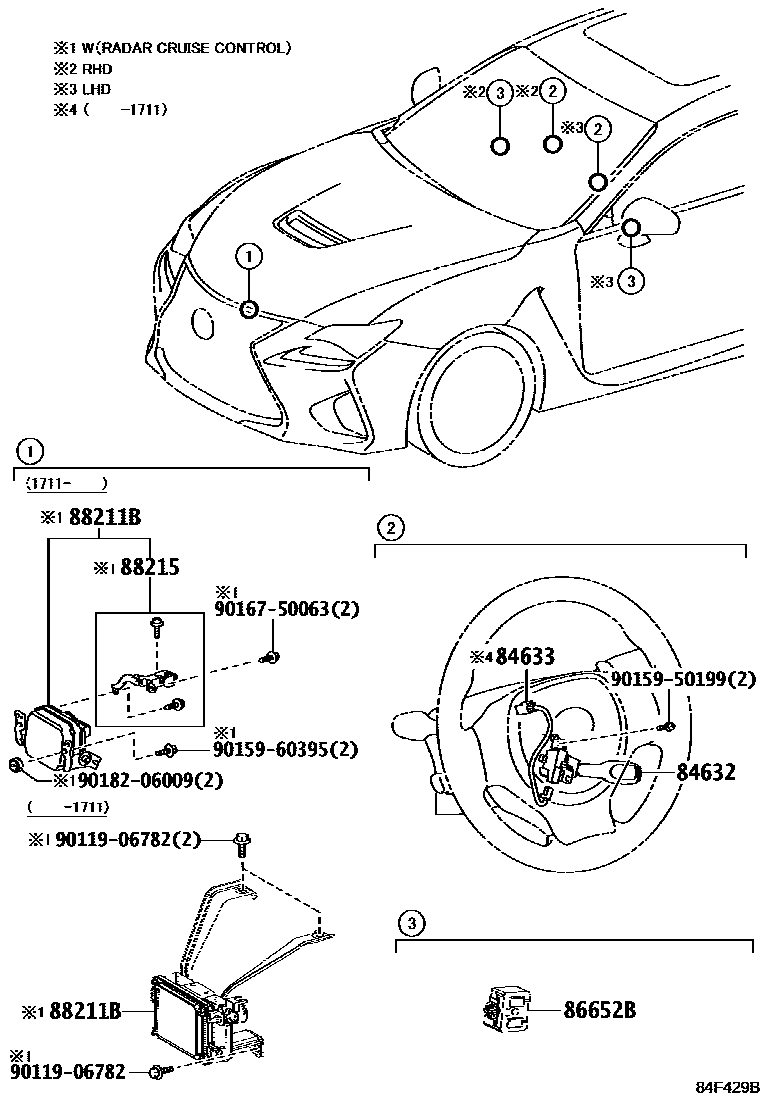

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84632SWITCH, CRUISE CONTROL MAIN

main84632-48010supersedes 84632-53010iUSC10..LHD202301-202403

main84632-30020supersedes 84632-30010iUSC10201409-201711

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

84633WIRE, CRUISE CONTROL SWITCH

main84633-76020supersedes 84633-76010iUSC10201409-201711

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

86652BBUZZER, SKID CONTROL

main86652-50010iUSC10..RHD202111-202403

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-48071iUSC10..RHD202111-202301

main88210-62020iUSC10202301-202403

main88210-24020iUSC10201409-201711

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

main88210-48070iUSC10201711-201902

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

main88210-60150iUSC10..LHD201711-201902

RUSSIA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88201-60010iUSC10..RHD202111-202301

9011906782

main90119-06782

9015950199

main90159-50199

9015960395

main90159-60395

9016750063

main90167-50063

9018206009

main90182-06009

10 parts on this diagram · 2 diagrams in section
