METER

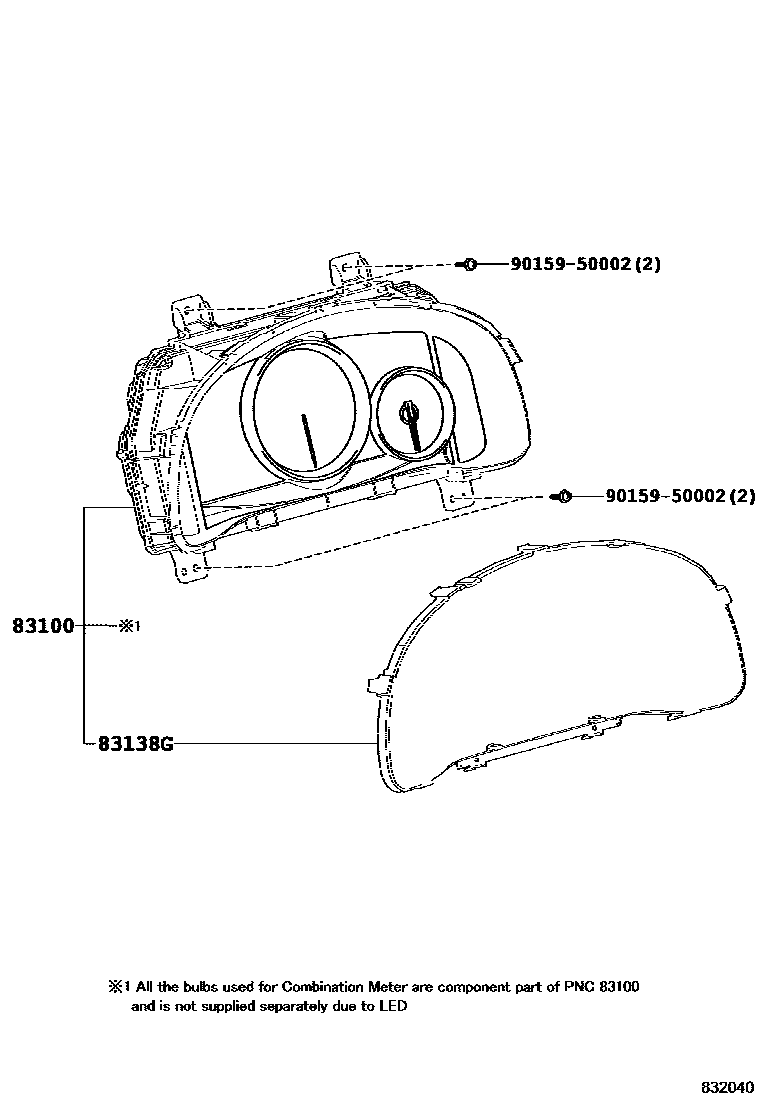

Parts diagram
83100METER ASSY, COMBINATION
main83800-24700i201409-201509
YAZAKI
main83800-24A40supersedes 83800-24A30i201510-201609
YAZAKI
main83800-24B00supersedes 83800-24A90i201609-201711
YAZAKI
main83800-24E40supersedes 83800-24E30i201711-201809
YAZAKI
main83800-24E41i201903-202008
YAZAKI
main83800-24K50supersedes 83800-24K40i201810-201902
YAZAKI
main83800-24M40supersedes 83800-24M30i202009-202301
YAZAKI
main83800-24P70supersedes 83800-24P60i202301-202403
YAZAKI
83138GGLASS, COMBINATION METER
main83852-53F70i201409-201902
9015950002
main90159-50002

3 parts on this diagram · 1 diagram in section
