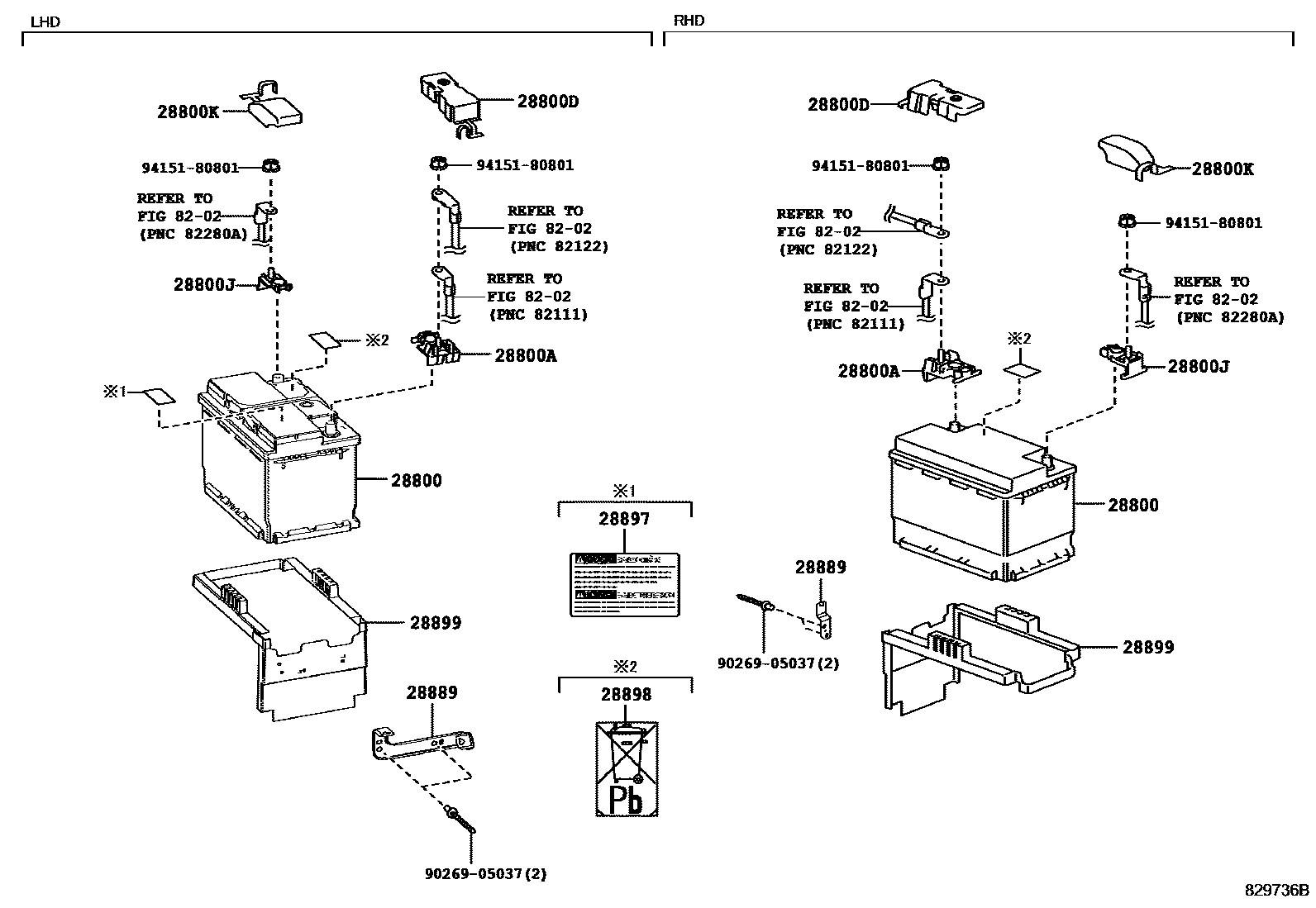

BATTERY & BATTERY CABLE

28800BATTERY

main28800-38160i2URGSE..USC10..RHD201409-202206

LN3

sub28800-38161

main28800-38161i2URGSE..USC10..RHD202207-202403

LN3

sub28800-38162

main28800-38170i2URGSE..USC10..LHD201409-202206

LN3R

sub28800-38171

main28800-38171i2URGSE..USC10..LHD202207-202403

LN3R

sub28800-38172

28800ATERMINAL, BATTERY POSITIVE

main82675-24010i2URGSE..USC10..RHD201409-202403

main82675-24030i2URGSE..USC10..LHD201409-202403

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24190i2URGSE..USC10201409-202403

28800JTERMINAL, BATTERY NEGATIVE

main82675-24020i2URGSE..USC10..RHD201409-202403

main82675-24040i2URGSE..USC10..LHD201409-202403

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-24200i2URGSE..USC10201409-202403

28889BRACKET, BATTERY WIRE CLAMP

main82715-24340i2URGSE..USC10..LHD201409-202403

main82715-24350i2URGSE..USC10..RHD201409-202403

28897PLATE, BATTERY CAUTION

main28897-31040

main28897-38070

28898PLATE, BATTERY

main28898-46020i2URGSE..USC10201409-202403

28899INSULATOR, BATTERY

main28899-38050i2URGSE..USC10201409-202403

8202

9026905037

main90269-05037

9415180801

main94151-80801

12 parts on this diagram · 1 diagram in section
