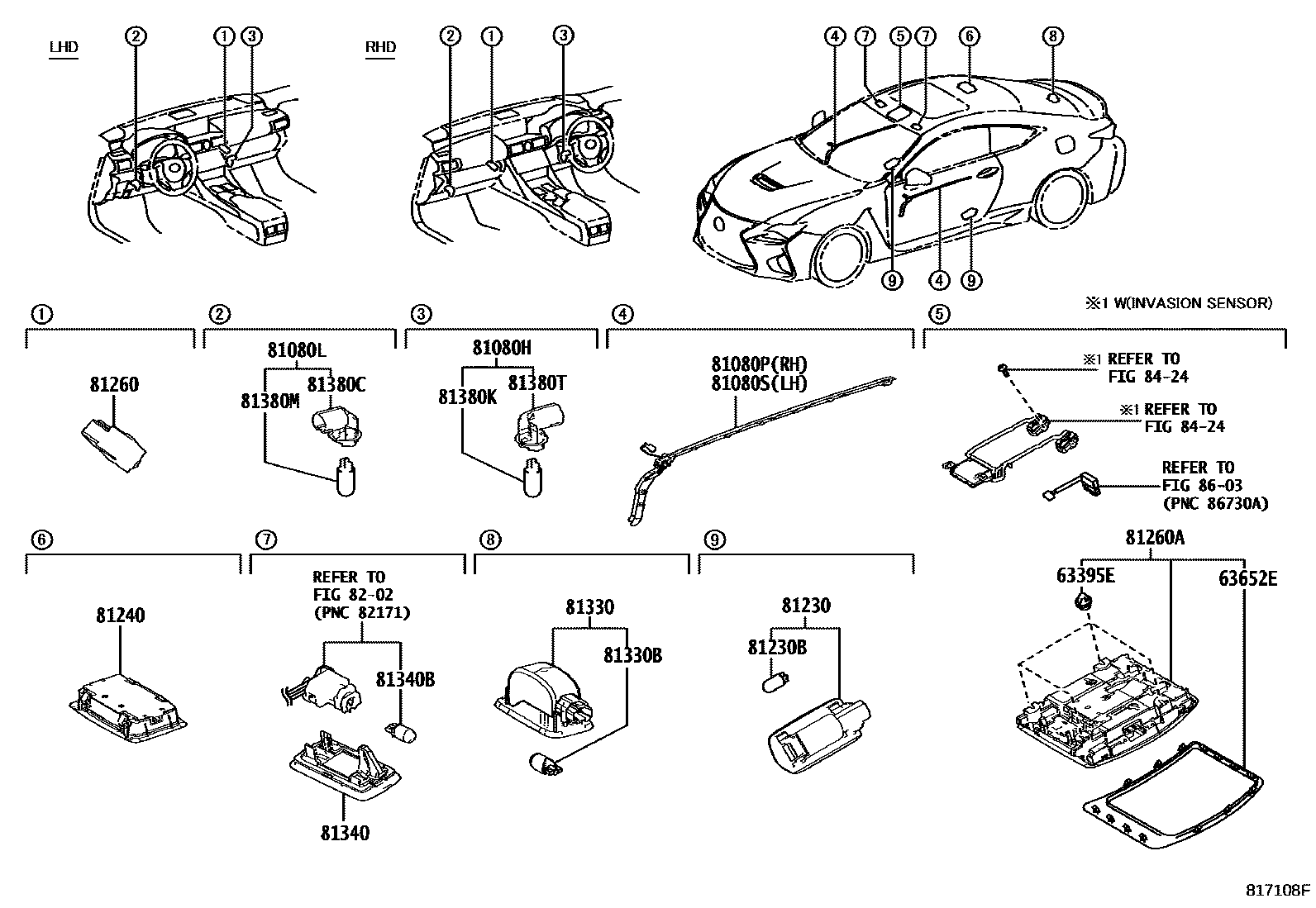

INTERIOR LAMP
63395ECLIP(FOR MAP LAMP)
NO.2
63652ECOVER, ROOF CONSOLE BOX, NO.1
BLACK,TRIM0#,2#,3#,8#
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230LAMP ASSY, COURTESY
"EMOTIONAL TOURING" *(D),RH
"EMOTIONAL TOURING" *(D),LH
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
BLACK,TRIM0#,2#,3#,8#
81260ALAMP ASSY, MAP
BLACK,TRIM0#,1#,2#,3#,8#
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR),BLACK,TRIM0#,1#,2#,3#
MOON ROOF-WITH,BLACK,TRIM0#,1#,2#,3#
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR)&MOON ROOF-WITH,BLACK,TRIM0#,1#,2#,3#
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR & *GBS),BLACK,TRIM0#,1#,2#,3#
MOON ROOF-WITH,BLACK,TRIM0#,1#,2#,3#
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR)&MOON ROOF-WITH,BLACK,TRIM0#,1#,2#,3#
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR),BLACK,TRIM0#,1#,2#,3#
MOON ROOF-WITH,BLACK,TRIM0#,1#,2#,3#
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR)&MOON ROOF-WITH,BLACK,TRIM0#,1#,2#,3#
KAZAKHSTAN SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR & *GBS),BLACK,TRIM0#,1#,2#,3#
RUSSIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR & *GBS)&MOON ROOF-WITH,BLACK,TRIM0#,1#,2#,3#
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR & *GBS),BLACK,TRIM0#,1#,2#,3#,8#
ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR)&MOON ROOF-WITH,BLACK,TRIM0#,1#,2#,3#
RUSSIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR),BLACK,TRIM0#,2#,3#
RUSSIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR)&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#
ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR & *GBS)&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#
MOON ROOF-WITH,BLACK,TRIM0#,1#,2#,3#
ANTI-THEFT SYSTEM-WITH(SECURITY HORN)&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 8W
81380CSOCKET, PLUG, NO.1
81380KBULB, INSTRUMET PANEL UNDER LAMP, NO.2
81380MBULB, INSTRUMET PANEL UNDER LAMP, NO.1
81380TSOCKET, PLUG, NO.2
8202
8424
8603
22 parts on this diagram · 2 diagrams in section
