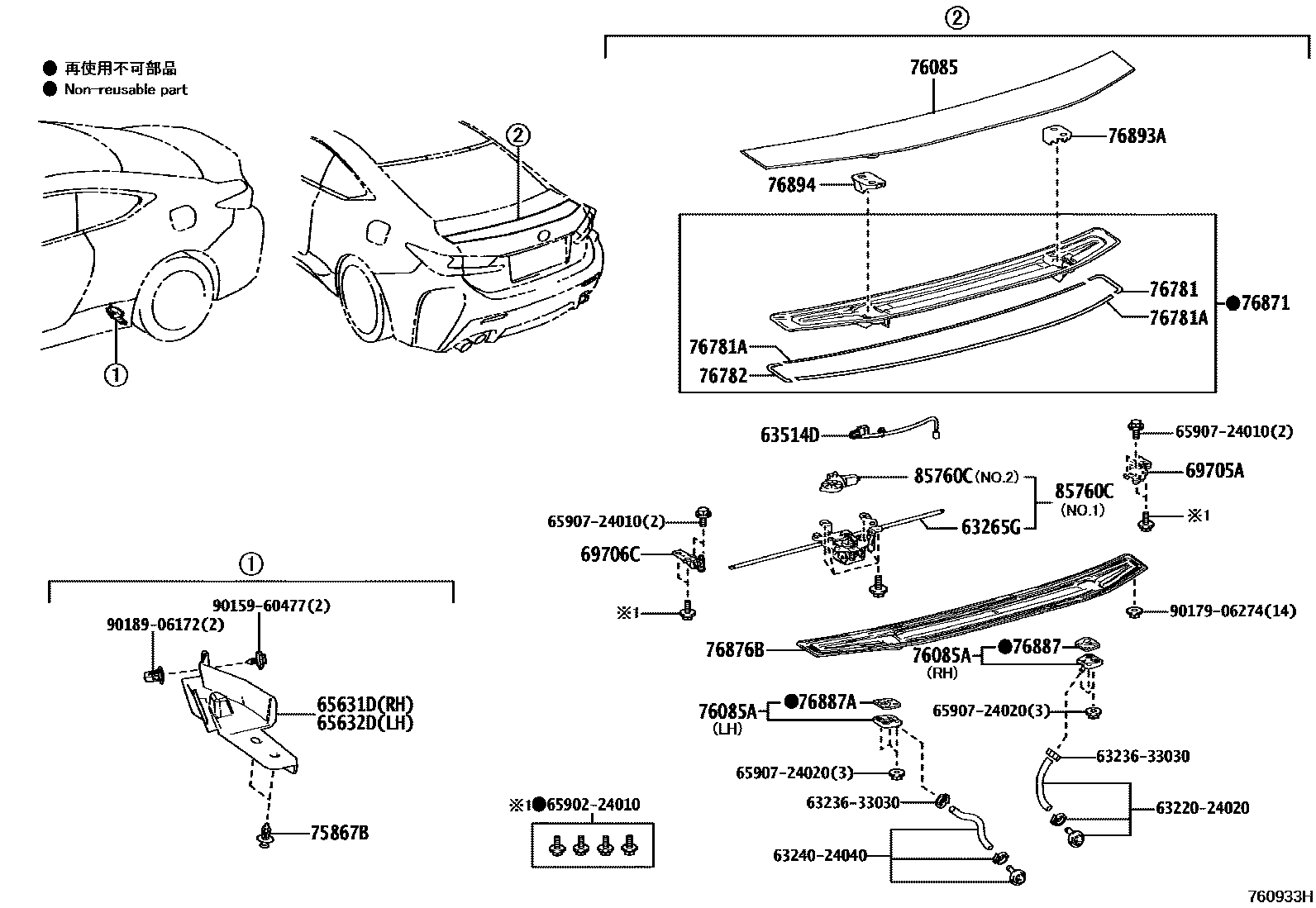

MUDGUARD & SPOILER

0001 1 0002 1FRONT & SIDE 0003 1REAR

63265GGEAR, REAR SPOILER DRIVE

main63265-24010iUSC10¥26,200201409-201902

main63265-24010iUSC10¥26,200201903-202403

REAR SPOILER-RIGID TYPE

63514DWIRE, CONNECTOR

main63514-24010iUSC10¥2,200201409-201902

main63514-24010iUSC10¥2,200201903-202403

REAR SPOILER-RIGID TYPE

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-24010iUSC10¥1,350201409-202403

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-24010iUSC10¥1,350201409-202403

69705ALINK SUB-ASSY, TOP COVER LOCK CONTROL, RH

main69705-24010iUSC10¥16,800201409-201902

main69705-24010iUSC10¥16,800201903-202403

REAR SPOILER-RIGID TYPE

69706CLINK SUB-ASSY, TOP COVER LOCK CONTROL, LH

main69706-24010iUSC10¥16,800201409-201902

main69706-24010iUSC10¥16,800201903-202403

REAR SPOILER-RIGID TYPE

75867BCLIP, ROCKER PANEL MOULDING

main75867-33050iUSC10¥210201409-202403

76085SPOILER SUB-ASSY, REAR

main76085-24090-A0iUSC10201409-202403

WHITE NOVA GF.,083

main76085-24090-B0iUSC10201409-201902

MERCURY GRAY MC.,1H9

main76085-24090-B1iUSC10201409-201711

SONIC SILVER,1J2

main76085-24090-B2iUSC10201711-202009

SONIC TITANIUM,1J7

main76085-24090-B4iUSC10202009-202403

SONIC CHROME,1L1

main76085-24090-C0iUSC10201409-201711

BLACK,212

main76085-24090-C1iUSC10201409-201609

STARLIGHT BLACK GF.,217

main76085-24090-C2iUSC10201609-202403

GRAPHITE BLACK GF.,223

main76085-24090-D0iUSC10201409-202403

RED,3T5

main76085-24090-E0iUSC10201409-201902

ORANGE,4W7

main76085-24090-F0iUSC10201711-201902

NAPLES YELLOW,5C1

main76085-24090-F0iUSC10201903-202403

NAPLES YELLOW CONTRAST LA,5C1

main76085-24090-J0iUSC10201409-202403

BLUE,8X1

76085ACAP(FOR REAR SPOILER)

main63287-24010iUSC10¥1,630201409-202403

RH

main63287-24010iUSC10¥1,630201903-202403

REAR SPOILER-RIGID TYPE,RH

main63288-24010iUSC10¥1,630201409-202403

LH

76781TAPE, REAR SPOILER, UPPER RH

main76781-24010iUSC10¥430201903-202403

REAR SPOILER-RIGID TYPE

main76781-24010iUSC10¥430201409-201902

76781ATAPE, REAR SPOILER, UPPER NO.1

main76781-24020iUSC10¥430201409-201902

main76781-24020iUSC10¥430201903-202403

REAR SPOILER-RIGID TYPE

76782TAPE, REAR SPOILER, UPPER LH

main76782-24010iUSC10¥430201903-202403

REAR SPOILER-RIGID TYPE

main76782-24010iUSC10¥430201409-201902

76871SPOILER, REAR

main76871-24080iUSC10¥17,000201409-201902

NO PAINT REQ.

main76871-24080iUSC10¥17,000201903-202403

REAR SPOILER-RIGID TYPE

76876BINSERT, REAR SPOILER

main76876-24030iUSC10¥5,400201903-202403

REAR SPOILER-RIGID TYPE

main76876-24030iUSC10¥5,400201409-201902

76887SEAL, REAR SPOILER

main76887-24040iUSC10¥430201409-201902

main76887-24040iUSC10¥430201903-202403

REAR SPOILER-RIGID TYPE

76887ASEAL, REAR SPOILER

main76887-24050iUSC10¥430201409-201902

main76887-24050iUSC10¥430201903-202403

REAR SPOILER-RIGID TYPE

76893ACOVER, REAR SPOILER, RH

main76893-24020iUSC10¥540201409-201902

main76893-24020iUSC10¥540201903-202403

REAR SPOILER-RIGID TYPE

76894COVER, REAR SPOILER, LH

main76894-24010iUSC10¥540201409-201902

main76894-24010iUSC10¥540201903-202403

REAR SPOILER-RIGID TYPE

85760CMOTOR ASSY, REAR SPOILER

main63206-24030iUSC10¥42,100201409-202403

NO.1

main85760-24010iUSC10¥15,900201903-202403

REAR SPOILER-RIGID TYPE,NO.2

main85760-24010iUSC10¥15,900201409-202403

NO.2

6322024020MOULDING ASSY, ROOF WINDOW, LOWER

main63220-24020¥1,080

6323633030CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE

main63236-33030¥80

6324024040HOLDER ASSY, REMOVABLE ROOF GLASS, OUTER

main63240-24040¥1,080

6590224010FASTENER SET, TARPAULIN RAIL ADJUSTER

main65902-24010¥590

6590724010BOLT, REAR SPOILER

main65907-24010¥390

6590724020BOLT, REAR SPOILER

main65907-24020¥320

9015960477

main90159-60477¥70

9017906274

main90179-06274¥70

9018906172

main90189-06172¥80

28 parts on this diagram · 3 diagrams in section
