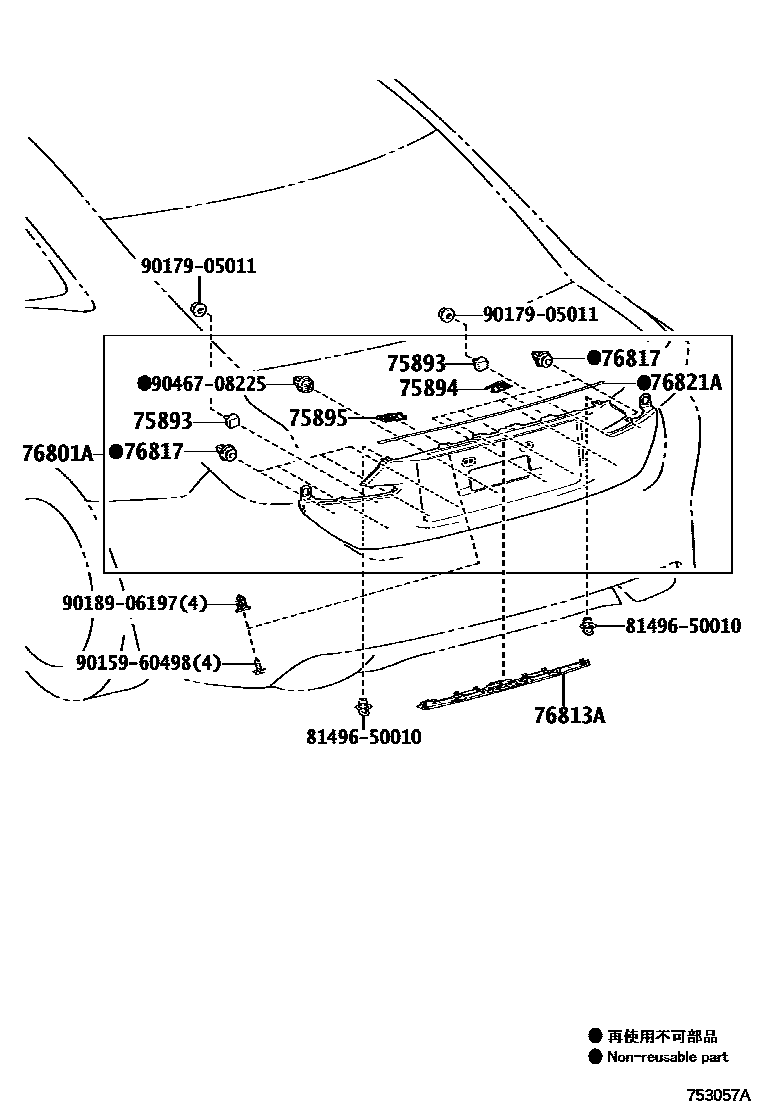

REAR MOULDING
75893RETAINER, LUGGAGE DOOR MOULDING
75894RETAINER, LUGGAGE DOOR MOULDING, NO.2
75895RETAINER, LUGGAGE DOOR MOULDING, NO.3
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
WHITE NOVA GF.,083
HAKUJI,091
SONIC TITANIUM,1J7
MARCURY GRAY MC.MATT,1K7
SONIC CHROME,1L1
TITANIUM CARBIDE GRAY,1L8
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
NAPLES YELLOW CONTRAST LA,5C1
HEAT BLUE CONTRAST LAYERI,8X1
HEAT BLUE SATIN,8Z1
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
SONIC SILVER,1J2
MARCURY GRAY MC.MATT,1K7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED,3T5
ORANGE,4W7
NAPLES YELLOW,5C1
BLUE,8X1
76813AGARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE NO.3
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
8149650010GUIDE, REAR COMBINATION LAMP
main81496-50010
9015960498
main90159-60498
9017905011
main90179-05011
9018906197
main90189-06197
9046708225
main90467-08225
12 parts on this diagram · 2 diagrams in section
