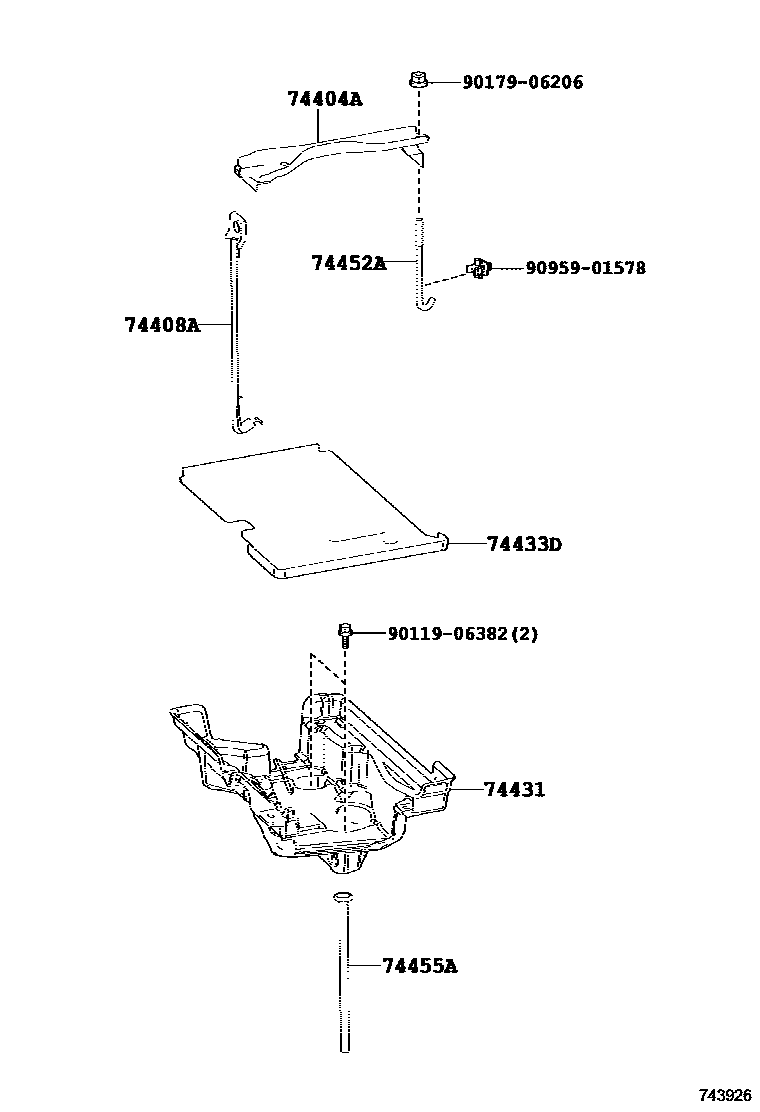

BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-22370iUSC10201409-201902

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-22031iUSC10201409-201902

74431TRAY, BATTERY

main74431-24050iUSC10..RHD201409-201902

main74431-24060iUSC10..LHD201903-202403

74433DSUPPORT, BATTERY TRAY,NO.1

main74433-24010iUSC10..RHD201409-201902

main74433-24020iUSC10..LHD201903-202403

74452ABOLT, BATTERY CLAMP, NO.2

main74452-30010iUSC10201409-201902

74455AHOSE, BATTERY DRAIN

main74455-30020iUSC10201903-202403

9011906382

main90119-06382

9017906206

main90179-06206

9095901578

main90959-01578

9 parts on this diagram · 2 diagrams in section
