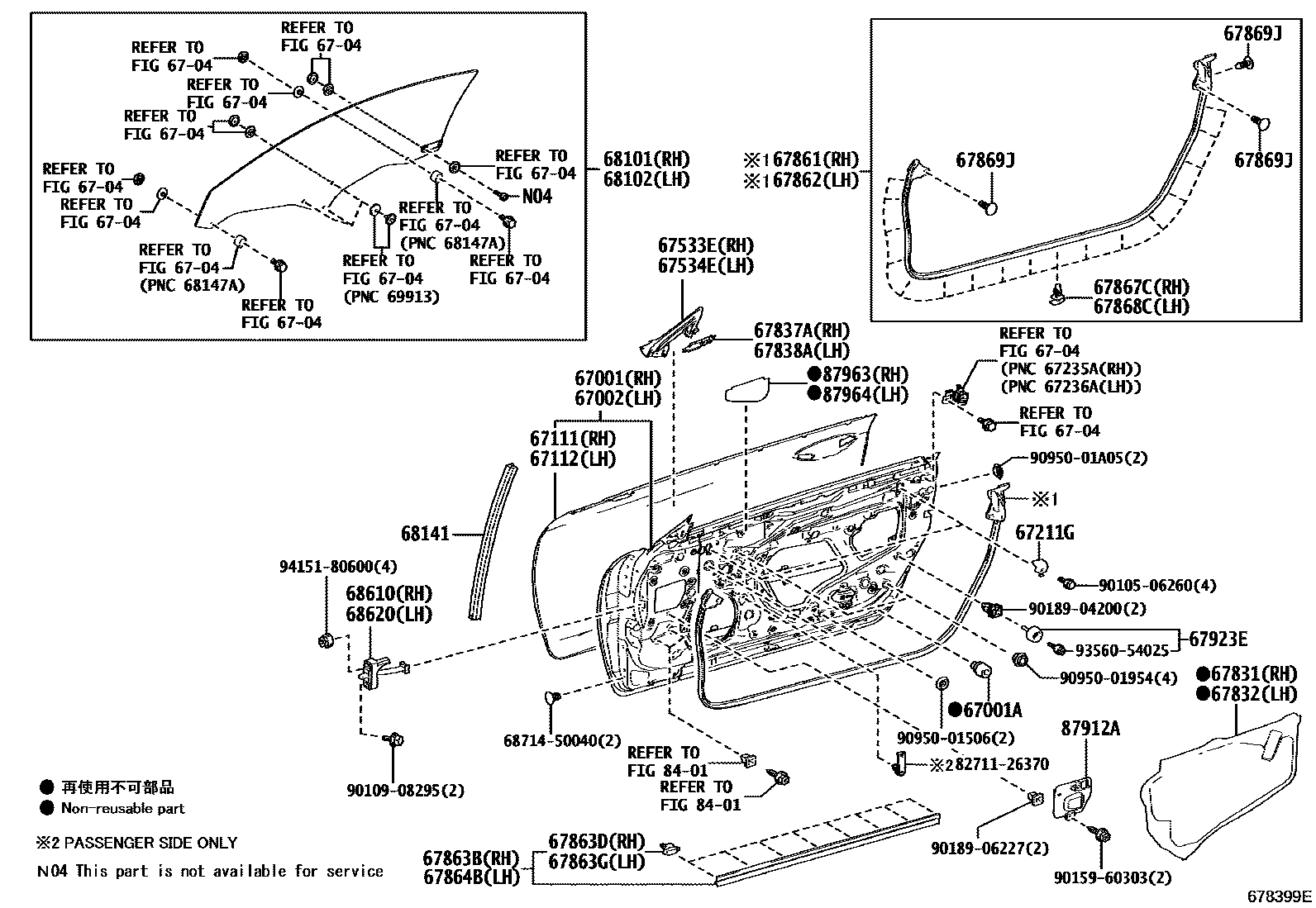

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-24100iUSC10201409-201902

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×2iUSC10201409-201902

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-24100iUSC10201409-201902

6704

67111PANEL, FRONT DOOR, OUTER RH

main67111-24060iUSC10201409-201902

67112PANEL, FRONT DOOR, OUTER LH

main67112-24060iUSC10201409-201902

67211GSTOP, FRONT DOOR WINDOW, UPPER

main67211-24030×4iUSC10201409-201902

67533ESEAL, FRONT DOOR DIVISION BAR, RH

main67533-24030iUSC10201409-201902

67534ESEAL, FRONT DOOR DIVISION BAR, LH

main67534-24030iUSC10201409-201902

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-24100iUSC10201409-201902

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-24060iUSC10201409-201902

67837ASEAL, FRONT DOOR VENT, RH

main67837-24030iUSC10201409-201902

67838ASEAL, FRONT DOOR VENT, LH

main67838-24010iUSC10201409-201902

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-24060iUSC10201409-201902

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-24060iUSC10201409-201902

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-24040iUSC10201903-202403

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-50050×8iUSC10201409-201902

67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-50050×8iUSC10201409-201902

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-24030iUSC10201409-201902

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×17iUSC10201409-201902

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×17iUSC10201409-201902

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×6iUSC10201409-201902

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-48060×2iUSC10201409-201902

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-24280iUSC10201409-201902

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-24280iUSC10201409-201902

68141RUN, FRONT DOOR GLASS

main68141-24050×2iUSC10201409-201902

68610CHECK ASSY, FRONT DOOR

main68610-24040iUSC10201409-201902

68620CHECK ASSY, FRONT DOOR, LH

main68620-24030iUSC10201409-201902

8401

87912APROTECTOR, OUTER MIRROR

main87912-24010iUSC10201409-201902

RH

main87912-24020iUSC10201903-202403

LH

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-24010iUSC10201409-201902

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-24010iUSC10201903-202403

6871450040

main68714-50040

8271126370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26370

9010506260

main90105-06260

9010908295

main90109-08295

9015960303

main90159-60303

9018904200

main90189-04200

9018906227

main90189-06227

9095001506

main90950-01506

9095001954

main90950-01954

9095001A05

main90950-01A05

9356054025

main93560-54025

9415180600

main94151-80600

44 parts on this diagram · 2 diagrams in section
