MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58190BREST ASSY, FRONT FLOOR FOOT
58192GPANEL, FOOTREST, NO.2
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,8#
RED,TRIM32
BLACK,TRIM0#,2#,30,31,8#
RED,TRIM32
58520CCLIP(FOR FRONT FLOOR CARPET)
LT.GRAY
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#,4#
58571FPAD, FRONT FLOOR, FRONT
58575EPAD, FRONT FLOOR, REAR NO.1
58576CPAD, FRONT FLOOR, REAR NO.2
58621GPAD, FRONT FLOOR SILENCER, RH
58622CPAD, FRONT FLOOR SILENCER, LH
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
67925COVER, DOOR SCUFF PLATE
6213530020FRAME, REAR SIDE WINDOW
main62135-30020
9016840061
main90168-40061

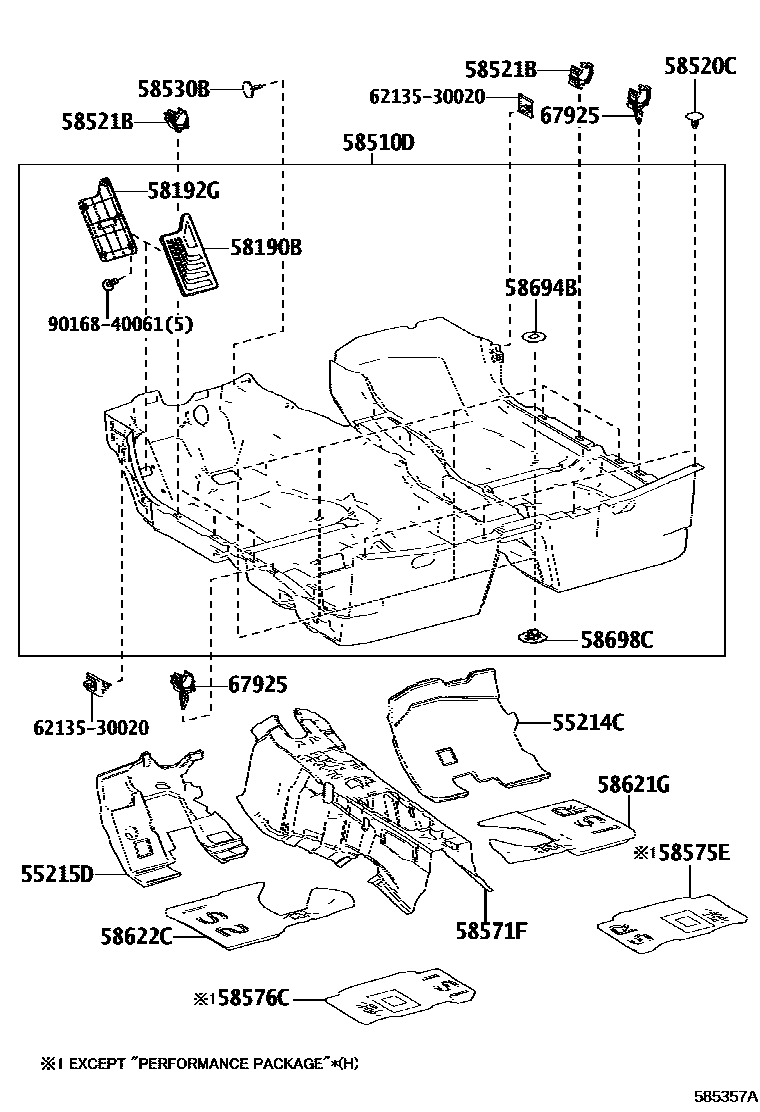

18 parts on this diagram · 2 diagrams in section
