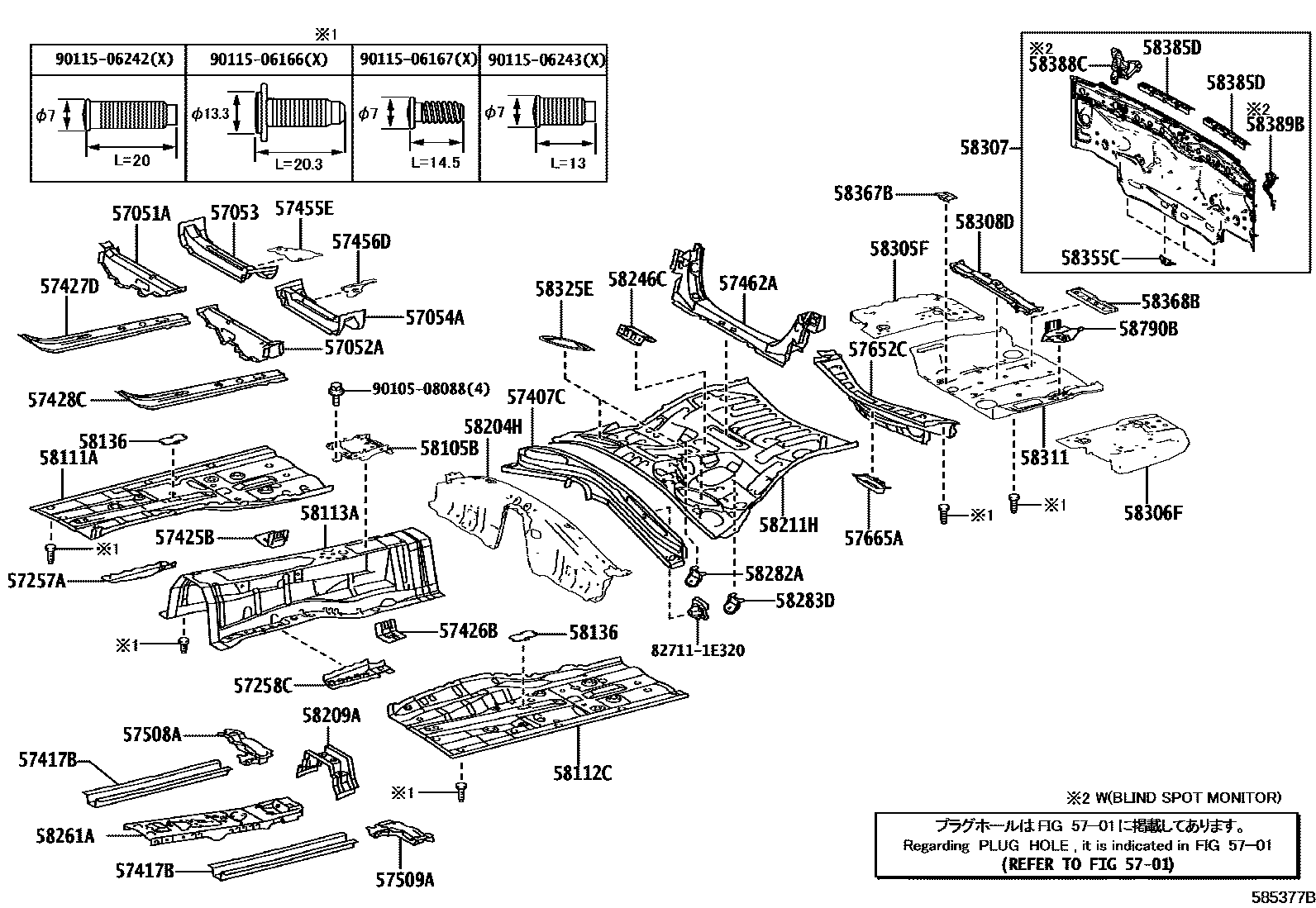

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1FLOOR UNDER COVER

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-53030iUSC10201409-201902

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-53030iUSC10201409-201902

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30080iUSC10201409-201902

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30080iUSC10201409-201902

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-30042iUSC10201409-201902

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-30091iUSC10201409-201902

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-53010iUSC10201409-201902

main57461-30121iUSC10202301-202403

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57603-24010×2iUSC10201409-201902

57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-30030iUSC10201409-201902

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-30030iUSC10201409-201902

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-30041iUSC10201409-201902

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57427-30041iUSC10201409-201902

57455EPLATE, FRONT FLOOR CROSSMEMBER, NO.3 RH

main57455-30060iUSC10201409-201902

57456DPLATE, FRONT FLOOR CROSSMEMBER, NO.3 LH

main57456-30040iUSC10201409-201902

57462AMEMBER, CENTER FLOOR CROSS, NO.2

main57405-30080iUSC10201801-201803

main57405-30081iUSC10201804-201902

main57405-53020iUSC10201409-201712

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-30031iUSC10201409-201902

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-30031iUSC10201409-201902

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-30140iUSC10201409-201902

57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

main57625-24030iUSC10201409-201503

main57625-24031iUSC10201504-201902

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-53020iUSC10201409-201902

58111APAN, FRONT FLOOR, RH

main58111-24060iUSC10201903-202403

58112CPAN, FRONT FLOOR, LH

main58112-24040iUSC10201409-201902

58113APANEL, FRONT FLOOR, CENTER

main58113-53030iUSC10201409-201902

58136COVER, FRONT FLOOR HOLE

main58136-51010×2iUSC10201409-201902

58204HPAN SUB-ASSY, CENTER FLOOR, REAR

main58204-24010iUSC10201409-201902

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-30050iUSC10201409-201902

58211HPAN, CENTER FLOOR

main58211-24080iUSC10202301-202403

main58211-30400iUSC10201409-201706

main58211-30401iUSC10201707-201902

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-30020iUSC10201409-201902

58261ACOVER, TRANSMISSION

main58261-30231iUSC10201409-201902

main58261-53080iUSC10202301-202403

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-30040iUSC10201409-201902

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-30030iUSC10201409-201902

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-53010iUSC10201409-201711

sub90950-01833

main58305-53011iUSC10201711-201902

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-53010iUSC10201409-201711

sub90950-01833

main58306-53011iUSC10201711-201902

58307PANEL SUB-ASSY, BODY LOWER BACK

main58302-24010supersedes 58307-24120iUSC10201409-201902

BLIND SPOT MONITOR-WITH

main58302-24030supersedes 58307-24120iUSC10201903-202403

BLIND SPOT MONITOR-WITH(*RCTA & LANE CHANGE ASSIST)

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-30030iUSC10201409-201902

main58308-53020iUSC10202009-202403

58311PAN, REAR FLOOR

main58311-24060supersedes 58311-53070iUSC10202301-202403

main58311-53060supersedes 58311-53040iUSC10201409-201902

REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30030×2iUSC10201409-201410

58355CBRACKET, REAR BUMPER ARM

main58355-53030×4iUSC10201409-201902

58367BBRACKET, FUEL TUBE

main58367-47020iUSC10202009-202403

58368BBRACKET, FUEL TUBE, NO.2

main58368-53010iUSC10202009-202403

58385DBRACKET, REAR BUMPER COVER

main58385-30080×2iUSC10201409-201902

58388CPLATE, BODY LOWER BACK REINFORCEMENT, RH

main58388-24010iUSC10201409-201902

BLIND SPOT MONITOR-WITH

main58388-24020iUSC10201903-202403

BLIND SPOT MONITOR-WITH(*RCTA & LANE CHANGE ASSIST)

58389BPLATE, BODY LOWER BACK REINFORCEMENT, LH

main58389-24010iUSC10201409-201902

BLIND SPOT MONITOR-WITH

main58389-24020iUSC10201903-202403

BLIND SPOT MONITOR-WITH(*RCTA & LANE CHANGE ASSIST)

58790BCARRIER ASSY, JACK

main58790-30030iUSC10201409-201902

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9010508088

main90105-08088

9011506166

main90115-06166

9011506167

main90115-06167

9011506242

main90115-06242

9011506243

main90115-06243

51 parts on this diagram · 2 diagrams in section
