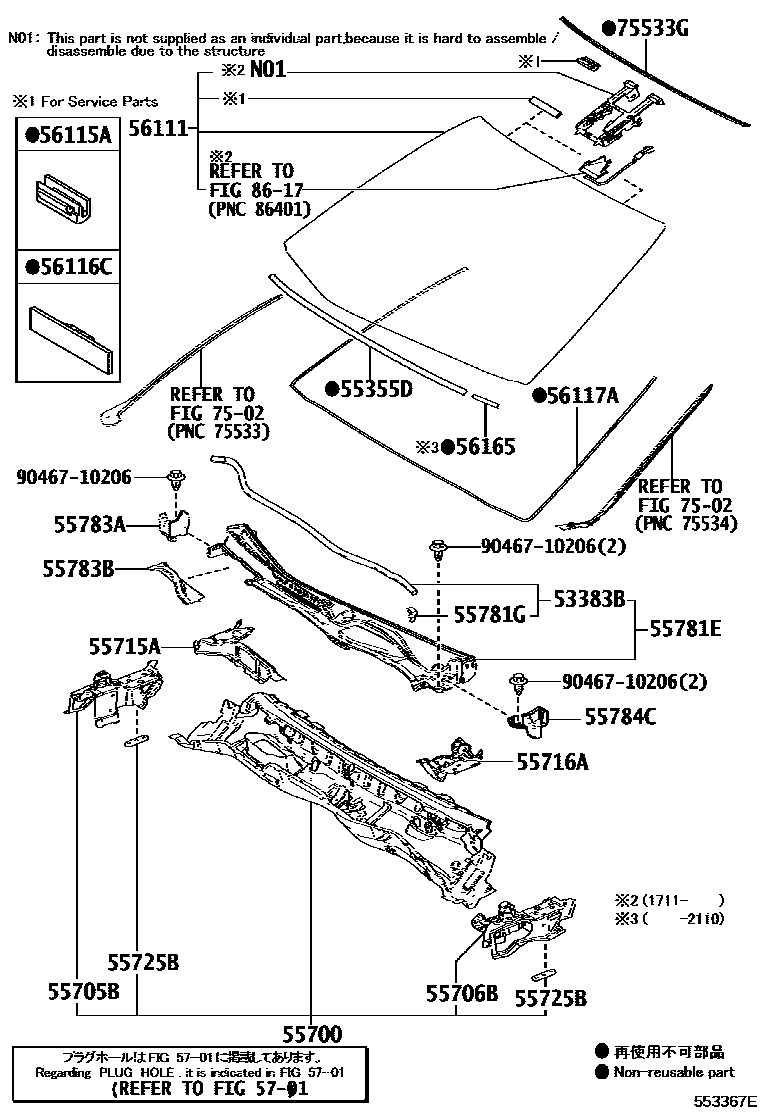

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-24080iUSC10..RHD201903-202403

main53383-24090iUSC10..LHD201903-202403

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-53090iUSC10201409-201902

55700PANEL ASSY, FRONT

main55700-24160iUSC10..LHD201409-201902

main55700-24170iUSC10..RHD201409-201902

main55700-24180iUSC10..LHD201903-202301

main55700-24190iUSC10..RHD201903-202403

main55700-24200iUSC10..LHD202301-202403

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-24060iUSC10..LHD201409-201902

main55705-24070iUSC10..RHD201903-202403

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-24050iUSC10..LHD201409-201902

main55706-24060iUSC10..RHD201903-202403

55715ABRACE, COWL TOP TO APRON, RH

main55715-24070iUSC10..LHD201903-202403

main55715-24080iUSC10..RHD201903-202403

55716ABRACE, COWL TOP TO APRON, LH

main55716-24070iUSC10..LHD201903-202403

main55716-24080iUSC10..RHD201903-202403

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2iUSC10201409-201902

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-24070iUSC10..RHD201409-201704

main55708-24071iUSC10..RHD201705-201902

main55708-24080iUSC10..LHD201903-202403

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×8iUSC10201903-202403

55783APAD, COWL TOP SILENCER

main55785-24040iUSC10..RHD201409-201902

main55785-24050iUSC10..LHD201409-201902

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-24030iUSC10..RHD201903-202403

main55783-24040iUSC10..LHD201903-202403

55784CPAD, COWL TOP SILENCER, LH

main55786-24030iUSC10..RHD201903-202403

main55786-24040iUSC10..LHD201409-201902

56111GLASS, WINDSHIELD

main56101-24911iUSC10..RHD201409-201902

main56101-24924supersedes 56101-24911iUSC10..RHD202111-202301

main56101-24936iUSC10..RHD202301-202403

main56101-24906supersedes 56101-24905iUSC10..LHD201409-201711

LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)

main56101-24908supersedes 56101-24905iUSC10..LHD201409-201711

COLD AREA SPEC

main56101-24909supersedes 56101-24905iUSC10..LHD201409-201711

COLD AREA SPEC&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)

main56101-24910iUSC10..RHD201409-201711

LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)

main56101-24921supersedes 56101-24920iUSC10..LHD201711-201902

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

main56101-24922supersedes 56101-24920iUSC10..LHD201903-202301

COLD AREA SPEC

main56101-24923supersedes 56101-24920iUSC10..LHD201711-201902

COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

main56101-24932supersedes 56101-24934iUSC10..LHD202301-202403

COLD AREA SPEC

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iUSC10201409-201902

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iUSC10201409-201902

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iUSC10..LHD201409-201902

*D,L=2762,COLD AREA SPEC

56165COVER, FRONT WINDOW INNER MOULDING, LH

main56165-30010iUSC10201409-201902

5701

7502

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-24100iUSC10201409-201902

8617

9046710206

main90467-10206

23 parts on this diagram · 2 diagrams in section
