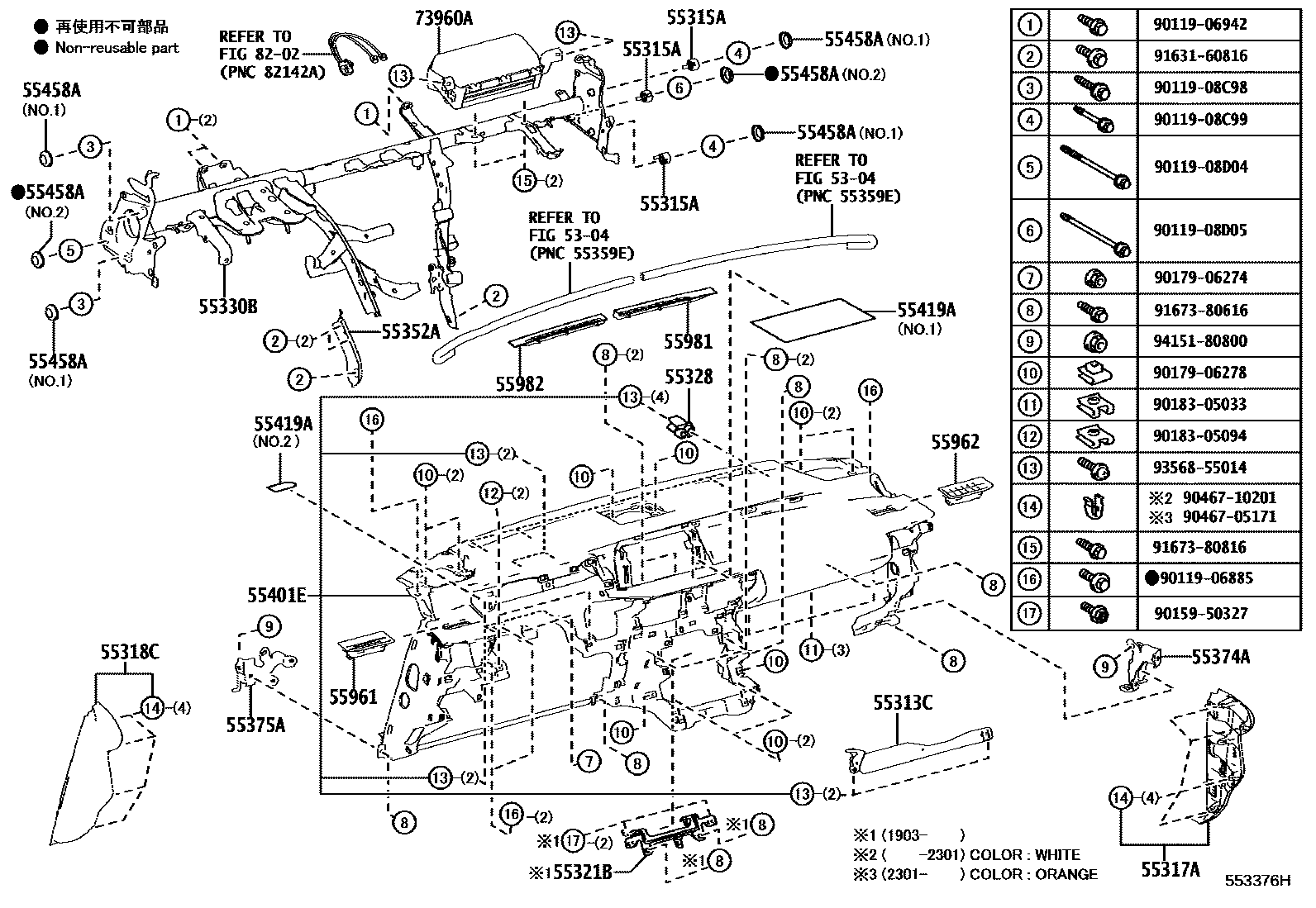

INSTRUMENT PANEL & GLOVE COMPARTMENT
5304
55313CBRACKET, GLOVE COMPARTMENT
55315ASPACER, INSTRUMENT PANEL, NO.1
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
55321BBRACKET, INSTRUMENT PANEL, NO.1
55328PIN, INSTRUMENT PANEL, NO.1
55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2
55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
55458ACAP, INSTRUMENT PANEL SAFETY PAD
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,8#
55982GARNISH, DEFROSTER NOZZLE, NO.2
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,8#
8202
9011906885
main90119-06885
9011906942
main90119-06942
9011908C98
main90119-08C98
9011908C99
main90119-08C99
9011908D04
main90119-08D04
9011908D05
main90119-08D05
9015950327
main90159-50327
9017906274
main90179-06274
9017906278
main90179-06278
9018305033
main90183-05033
9018305094
main90183-05094
9046705171
main90467-05171
9046710201
main90467-10201
9163160816
main91631-60816
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180800
main94151-80800
38 parts on this diagram · 8 diagrams in section
