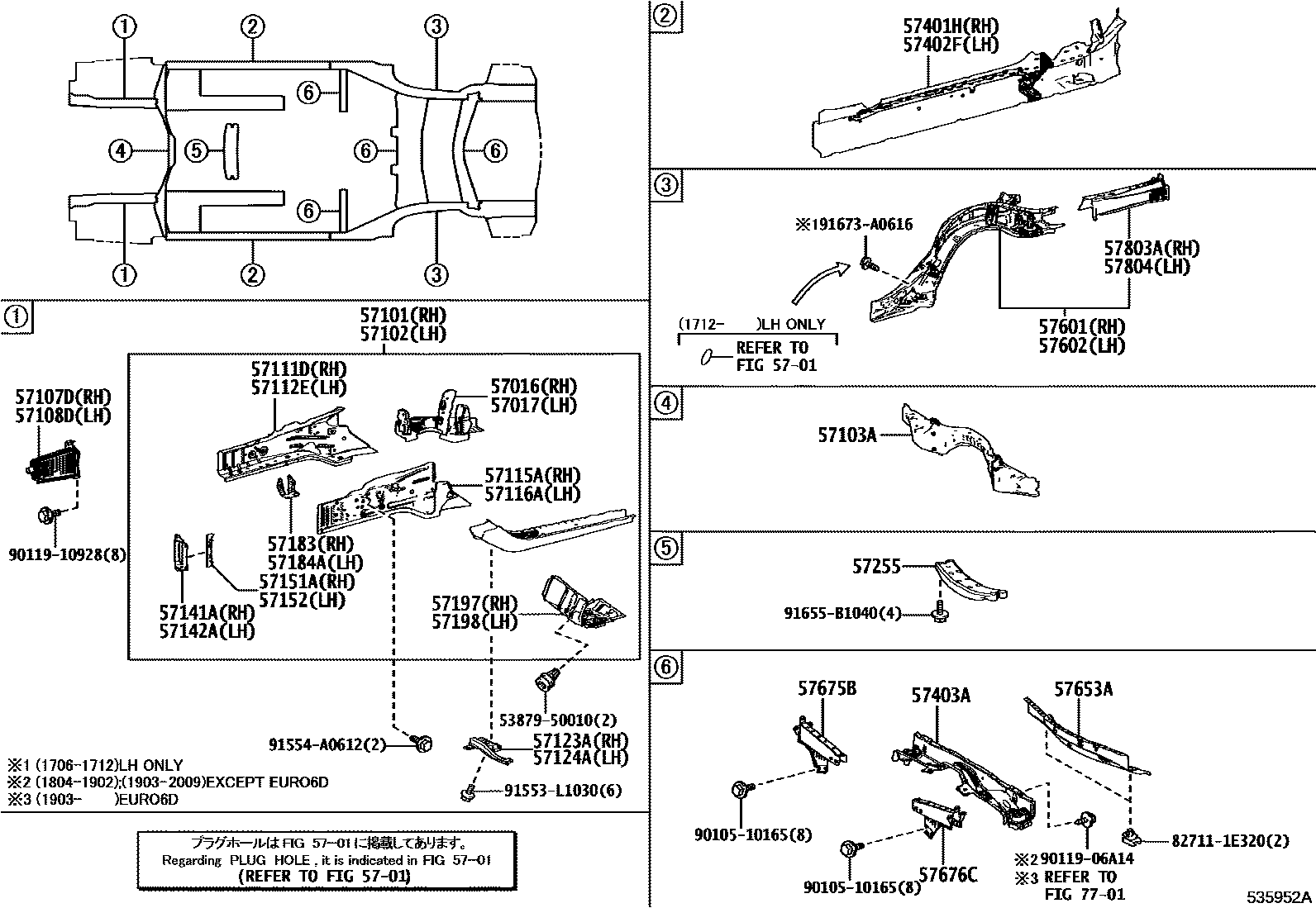

FLOOR SIDE MEMBER

0001 1 0002 1

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30040iUSC10201409-202403

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30040iUSC10201409-202403

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30190iUSC10201409-201909

sub57101-53070

main57101-53070iUSC10201910-202403

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30170iUSC10201409-201909

sub57102-53030

main57102-53030iUSC10201910-202403

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-30022iUSC10..RHD201409-202403

main57103-30031iUSC10..LHD201409-202403

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-24030iUSC10201409-202403

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-24030iUSC10201409-202403

57111DMEMBER, FRONT SIDE, INNER RH

main57111-30082iUSC10201409-202403

57112EMEMBER, FRONT SIDE, INNER LH

main57112-30082iUSC10201409-202403

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-30060iUSC10201409-202403

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-30030iUSC10201409-202403

57123AREINFORCEMENT, STRUT BAR BRACKET, RH

main57305-24010iUSC10201409-201711

sub57305-24011

main57305-24011iUSC10201712-202403

57124AREINFORCEMENT, STRUT BAR BRACKET, LH

main57306-24010iUSC10201409-201711

sub57306-24011

main57306-24011iUSC10201712-202403

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-30040iUSC10201409-202403

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-30040iUSC10201409-202403

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30040iUSC10201409-202403

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30040iUSC10201409-202403

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30030iUSC10201409-202403

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57184-30020iUSC10201409-202403

57197BOX, TORQUE, FRONT RH

main57197-30050iUSC10201409-202403

57198BOX, TORQUE, FRONT LH

main57198-30050iUSC10201409-202403

57255MEMBER, ENGINE REAR MOUNTING

main57255-30080iUSC10201409-202403

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-24050iUSC10201409-202403

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-24050iUSC10201409-202403

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57809-24010iUSC10201804-202403

main57809-30020iUSC10201409-201707

sub57809-30021

main57809-30021iUSC10201708-201804

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-53070iUSC10201409-202403

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-53110iUSC10201409-202403

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-30150iUSC10201409-201712

sub57653-30151

main57653-30151iUSC10201801-202403

57675BREINFORCEMENT, REAR FLOOR CROSS, NO.1 RH

main57505-24010iUSC10201409-202403

57676CREINFORCEMENT, REAR FLOOR CROSS, NO.1 LH

main57506-24010iUSC10201409-202403

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-53040iUSC10201409-202403

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-53040iUSC10201409-202403

7701

5387950010LINER, FRONT FENDER, LH

main53879-50010

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9010510165

main90105-10165

9011906A14

main90119-06A14

9011910928

main90119-10928

91553L1030

main91553-L1030

91554A0612

main91554-A0612

91655B1040

main91655-B1040

91673A0616

main91673-A0616

43 parts on this diagram · 2 diagrams in section
