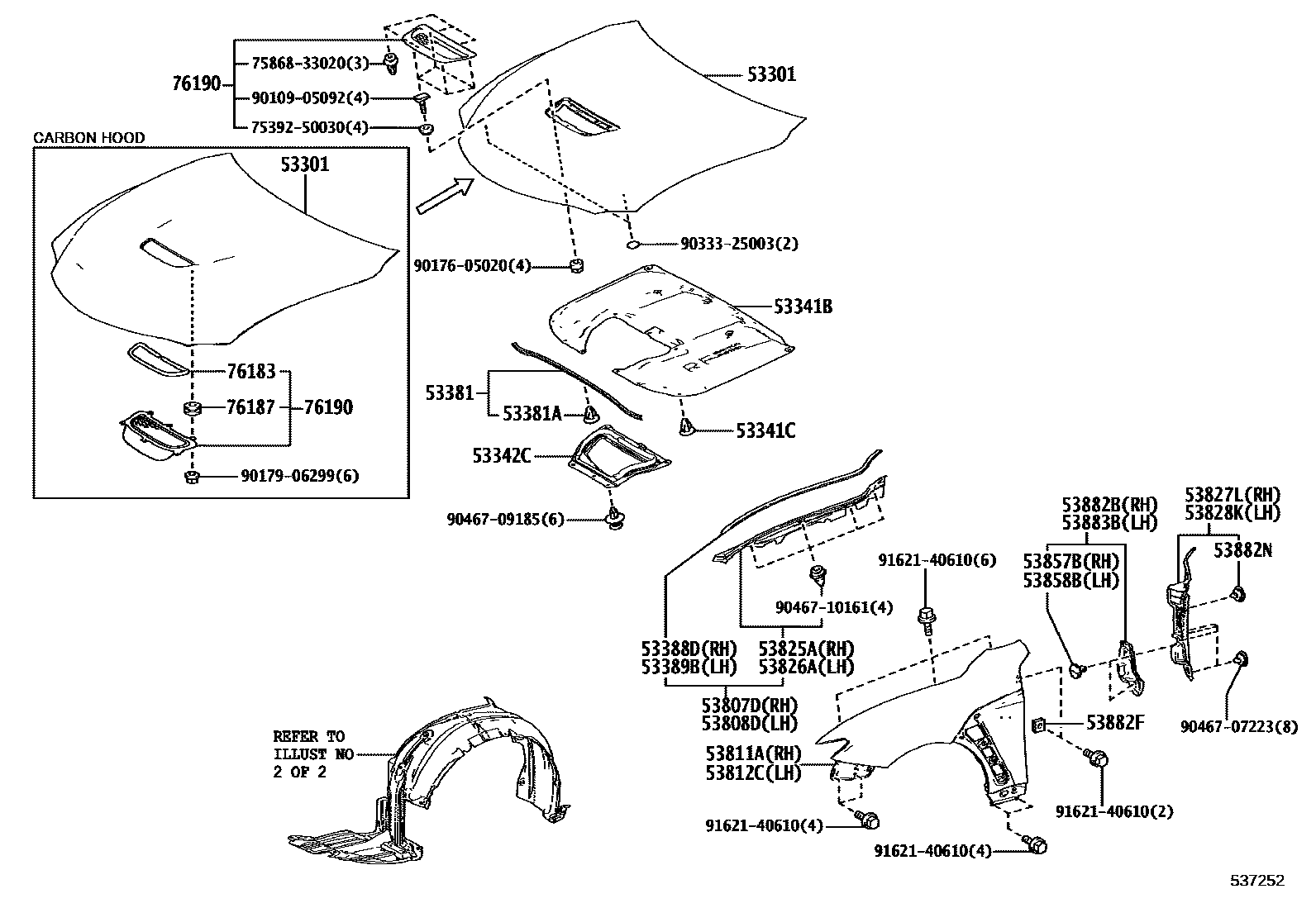

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53342CINSULATOR, HOOD, NO.2
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53811APANEL, FRONT FENDER, RH
53812CPANEL, FRONT FENDER, LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882BSEAL, FRONT FENDER, RH
53882FSEAL, FRONT FENDER
53882NCLIP(FOR FRONT FENDER SEAL)
BLACK
53883BSEAL, FRONT FENDER, LH
76183PROTECTOR, HOOD BULGE, NO.1
76187RETAINER, HOOD AIR INTAKE GUIDE, NO.1
76190PLATE ASSY, HOOD BULGE
"PERFORMANCE PACKAGE"*(H),WHITE NOVA GF.,083
WHITE NOVA GF.,083
WITH(CARBON HOOD & CARBON ROOF),WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
WITH(CARBON HOOD & CARBON ROOF),MERCURY GRAY MC.,1H9
WITH(CARBON HOOD & CARBON ROOF),SONIC SILVER,1J2
SONIC SILVER,1J2
SONIC TITANIUM,1J7
BODY SHELL ASSY-CARBON ROOF & COLOR HOOD,SONIC TITANIUM,1J7
BODY SHELL ASSY-CARBON ROOF & CARBON HOOD(LIGHT GRADE),SONIC TITANIUM,1J7
BODY SHELL ASSY-CARBON ROOF & CARBON HOOD,SONIC TITANIUM,1J7
"PERFORMANCE PACKAGE"*(H),SONIC TITANIUM,1J7
WITH(CARBON HOOD & CARBON ROOF),SONIC TITANIUM,1J7
"PERFORMANCE PACKAGE"*(H),SONIC CHROME,1L1
SONIC CHROME,1L1
WITH(CARBON HOOD & CARBON ROOF),SONIC CHROME,1L1
BLACK,212
WITH(CARBON HOOD & CARBON ROOF),BLACK,212
STARLIGHT BLACK GF.,217
WITH(CARBON HOOD & CARBON ROOF),STARLIGHT BLACK GF.,217
"PERFORMANCE PACKAGE"*(H),GRAPHITE BLACK GF.,223
WITH(CARBON HOOD & CARBON ROOF),GRAPHITE BLACK GF.,223
GRAPHITE BLACK GF.,223
"PERFORMANCE PACKAGE"*(H),RED,3T5
WITH(CARBON HOOD & CARBON ROOF),RED,3T5
RED,3T5
ORANGE,4W7
WITH(CARBON HOOD & CARBON ROOF),ORANGE,4W7
WITH(CARBON HOOD & CARBON ROOF),NAPLES YELLOW,5C1
"PERFORMANCE PACKAGE"*(H),NAPLES YELLOW,5C1
NAPLES YELLOW,5C1
"PERFORMANCE PACKAGE"*(H),BLUE,8X1
BLUE,8X1
WITH(CARBON HOOD & CARBON ROOF),BLUE,8X1
7539250030RETAINER, OUTSIDE MOULDING
7586833020ORNAMENT, BACK DOOR OUTSIDE, RH
9010905092
9017605020
9017906299
9033325003
9046707223
9046709185
9046710161
9162140610
35 parts on this diagram · 4 diagrams in section
