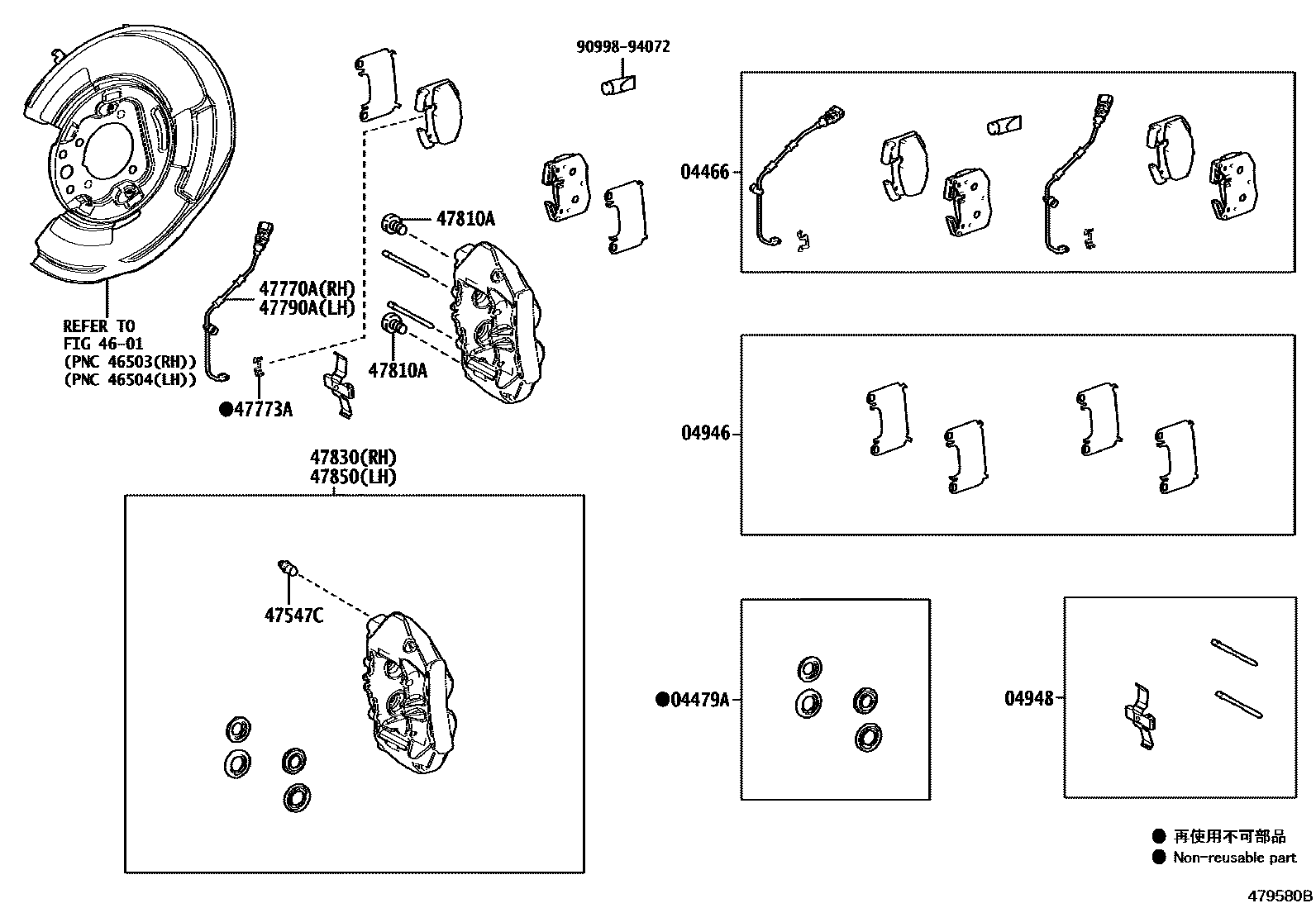

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1RED PAINTED

04466PAD KIT, DISC BRAKE, REAR

main04466-0W070iUSC10201409-202009

MARK GA 5032

main04466-0W100iUSC10202009-202403

MARK PAGID PA4971

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0W030iUSC10201409-202403

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0W020iUSC10201409-202403

04948FITTING KIT, DISC BRAKE, REAR

main04948-0W040iUSC10201409-201908

main04948-0W041iUSC10201908-202403

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90069-39012iUSC10201409-202403

47770AWIRE ASSY, PAD WEAR INDICATOR, RH

main47770-24020iUSC10201409-202403

47773ARETAINER, PAD WEAR INDICATOR

main47773-50030iUSC10201409-202403

47790AWIRE ASSY, PAD WEAR INDICATOR, LH

main47770-24020iUSC10201409-202403

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12401iUSC10201709-202403

main90119-12416iUSC10201409-201708

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0W090iUSC10201409-201510

main47830-0W100iUSC10201510-202403

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0W090iUSC10201409-201510

main47850-0W100iUSC10201510-202403

9099894072

main90998-94072

13 parts on this diagram · 2 diagrams in section
