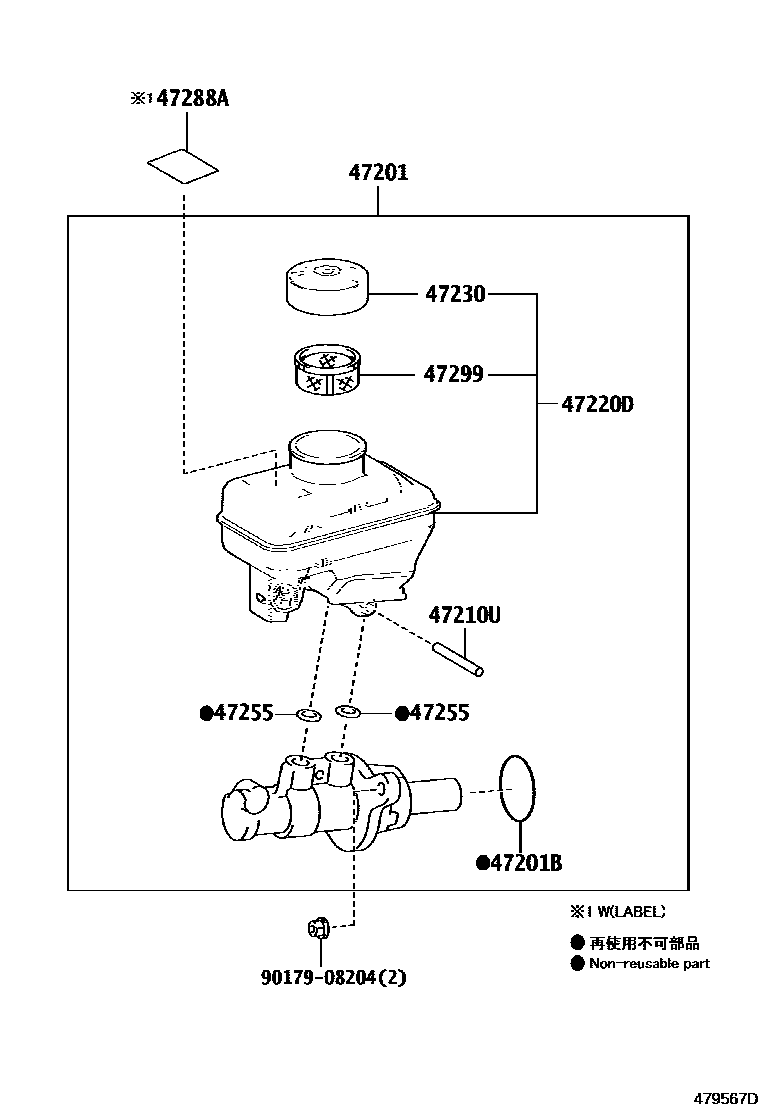

BRAKE MASTER CYLINDER

0001 1 0002 1

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-24170iUSC10..RHD201409-201509

sub47201-24171

main47201-24171iUSC10..RHD201510-201711

main47201-24180iUSC10..LHD201409-201509

sub47201-24181

main47201-24181iUSC10..LHD201510-201711

main47201-30890iUSC10..RHD201711-202403

main47201-30A00iUSC10..LHD201711-202403

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iUSC10201409-202403

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iUSC10201409-202403

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-24030iUSC10201409-202403

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33071iUSC10201409-201411

sub47230-33072

main47230-33072iUSC10201411-202403

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001iUSC10201409-202403

47288ALABEL, BRAKE FLUID NOTICE

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iUSC10201409-202403

9017908204

main90179-08204
