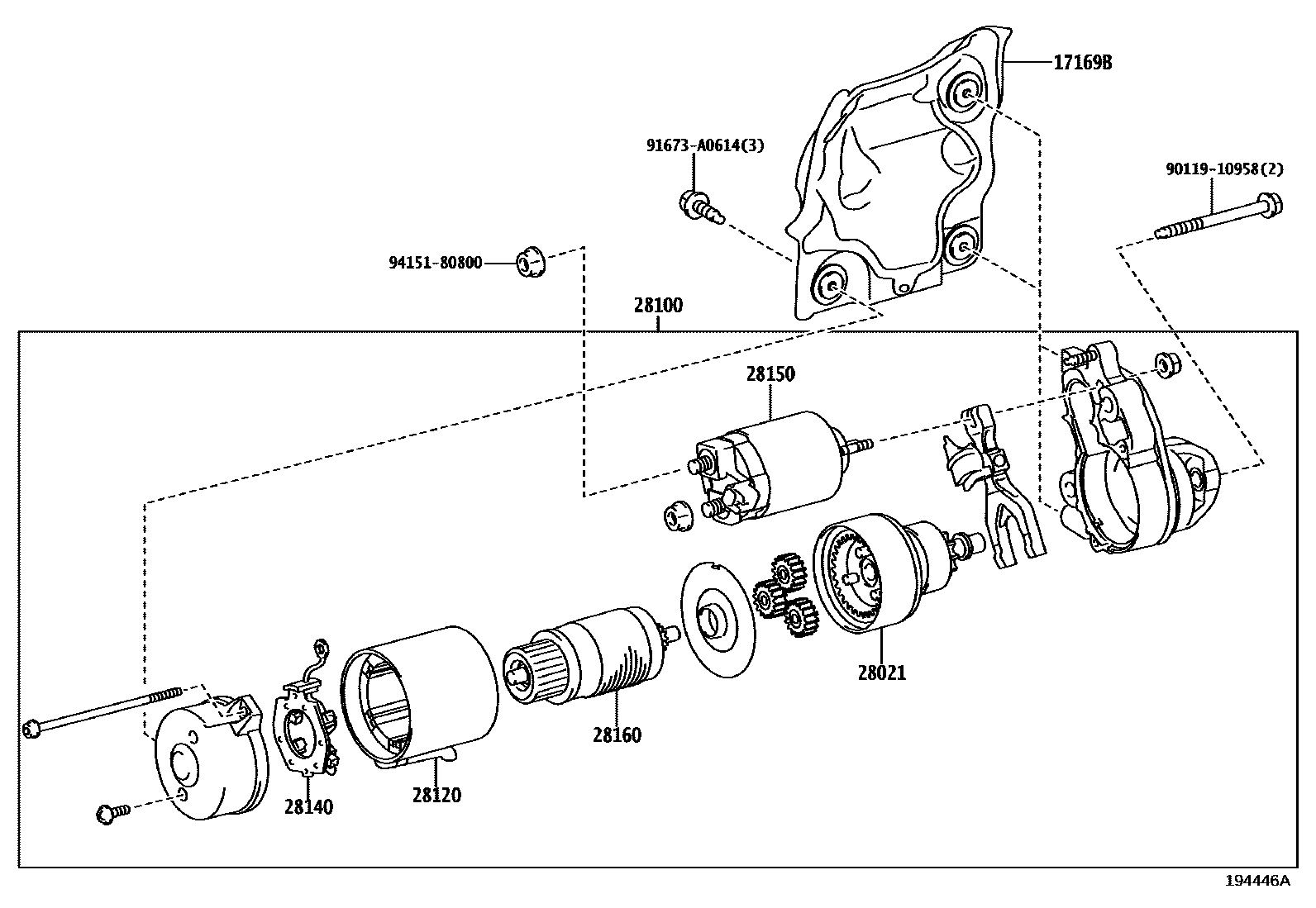

STARTER

17169BINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-38030i2URGSE..USC10¥2,620201409-202403

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-38070i2URGSE..USC10¥6,400201409-201701

main28021-75210i2URGSE..USC10¥5,800201701-202403

28100STARTER ASSY

main28100-38091i2URGSE..USC10¥76,600201409-202403

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-38090i2URGSE..USC10201409-202403

28140HOLDER ASSY, STARTER BRUSH

main28140-38070i2URGSE..USC10201409-202403

28150SWITCH ASSY, MAGNET STARTER

main28150-38061i2URGSE..USC10¥13,200201409-202403

28160ARMATURE ASSY, STARTER

main28160-36110i2URGSE..USC10¥13,100201910-202403

main28160-38070i2URGSE..USC10¥20,800201409-201801

main28160-38080i2URGSE..USC10¥20,800201801-201910

sub28160-36110¥13,100

9011910958

main90119-10958¥190

91673A0614

main91673-A0614¥60

9415180800

main94151-80800¥80

10 parts on this diagram · 1 diagram in section
