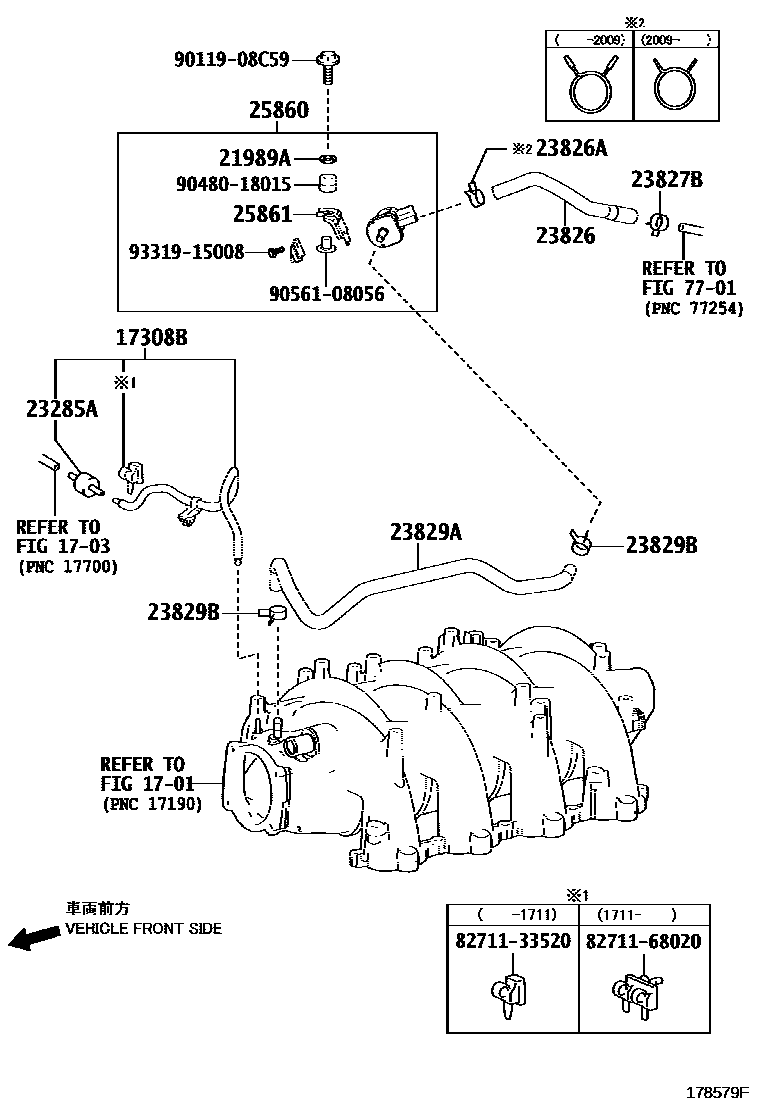

VACUUM PIPING

0001 1W/O(GPF) 0002 1W(GPF)

1701

1703

17308BHOSE SUB-ASSY, VACUUM

main17308-38010i2URGSE..USC10201409-201711

main17308-38011i2URGSE..USC10201711-202501

21989AINSULATOR, PLATE

main21989-38010i2URGSE..USC10201409-202501

23285AVALVE, CHECK, NO.1

main90917-10065i2URGSE..USC10201409-202501

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-38030i2URGSE..USC10201409-202501

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51300i2URGSE..USC10201409-202009

main96133-41301i2URGSE..USC10202009-202501

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2URGSE..USC10201409-202501

23829AHOSE, FUEL VAPOR FEED

main23829-38070i2URGSE..USC10201409-202501

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51300i2URGSE..USC10201409-202501

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-38030i2URGSE..USC10201409-202501

25861BRACKET, VACUUM SWITCHING VALVE

main25861-38010i2URGSE..USC10201409-202501

7701

8271133520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33520

8271168020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-68020

9011908C59

main90119-08C59

9048018015

main90480-18015

9056108056

main90561-08056

9331915008

main93319-15008

19 parts on this diagram · 2 diagrams in section
