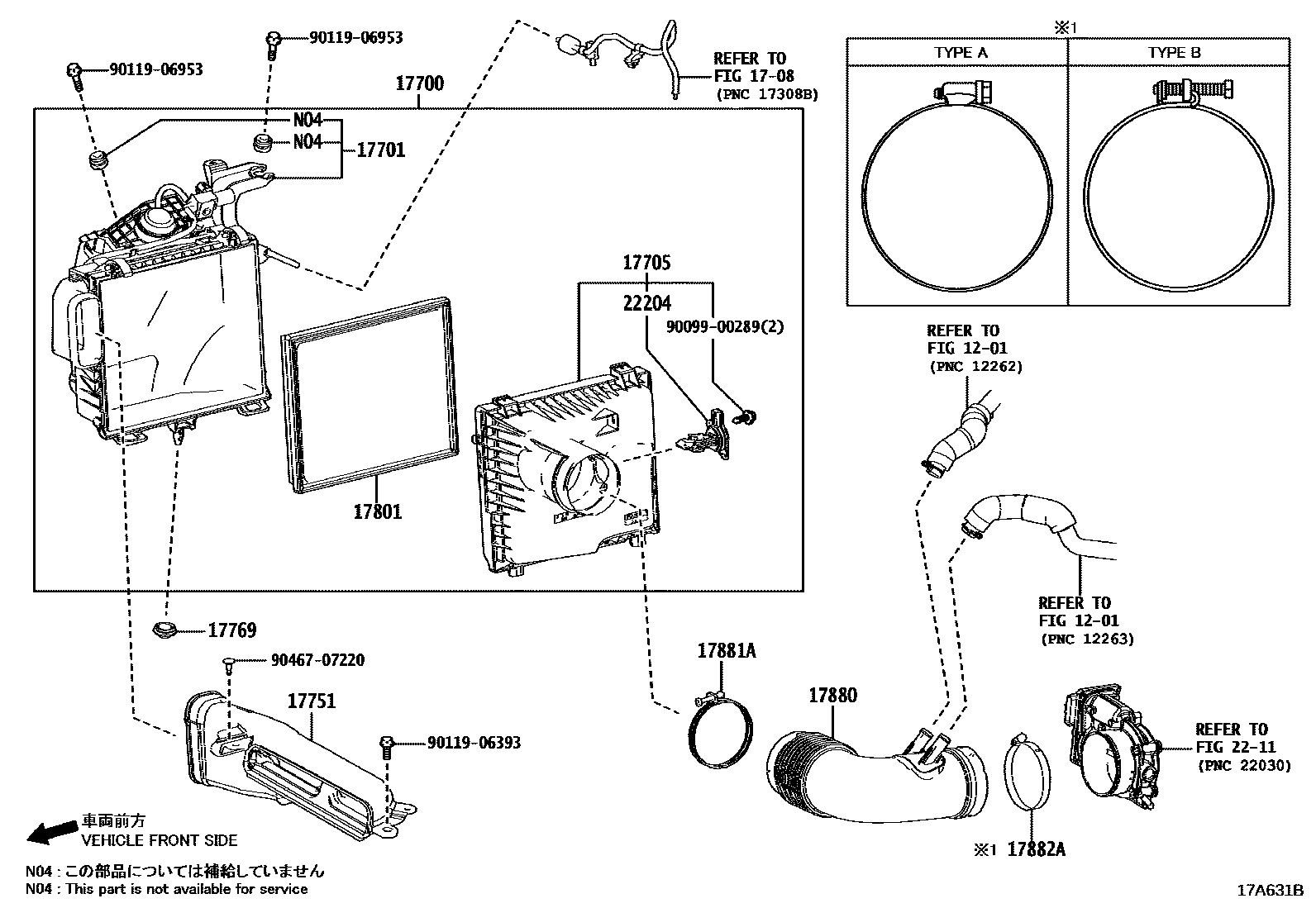

AIR CLEANER

1201

1708

17700CLEANER ASSY, AIR

main17700-38240i2URGSE..USC10201409-201503

sub17700-38241

main17700-38241i2URGSE..USC10201504-201902

main17700-38280i2URGSE..USC10201903-202501

17701CASE SUB-ASSY, AIR CLEANER

main17701-38170i2URGSE..USC10201409-201503

sub17701-38171

main17701-38171i2URGSE..USC10201504-202501

17705CAP SUB-ASSY, AIR CLEANER

main17705-38170i2URGSE..USC10201409-201902

main17705-38220i2URGSE..USC10201903-202501

17751INLET, AIR CLEANER, NO.1

main17751-38080i2URGSE..USC10201409-202501

17769SUPPORT, AIR CLEANER

main17769-31030i2URGSE..USC10201409-202501

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38021i2URGSE..USC10201409-202501

17880HOSE ASSY, AIR CLEANER

main17880-38080i2URGSE..USC10201409-201412

sub17880-38081

main17880-38081i2URGSE..USC10201501-202501

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main17891-38050i2URGSE..USC10201409-202501

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-38040i2URGSE..USC10201409-201501

TYPE A:REFER ILLUST.

main17891-38070i2URGSE..USC10201501-201902

TYPE B:REFER ILLUST.

main17891-38070i2URGSE..USC10201903-202501

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040i2URGSE..USC10201409-202501

9009900289

main90099-00289

9011906393

main90119-06393

9011906953

main90119-06953

9046707220

main90467-07220

17 parts on this diagram · 1 diagram in section
