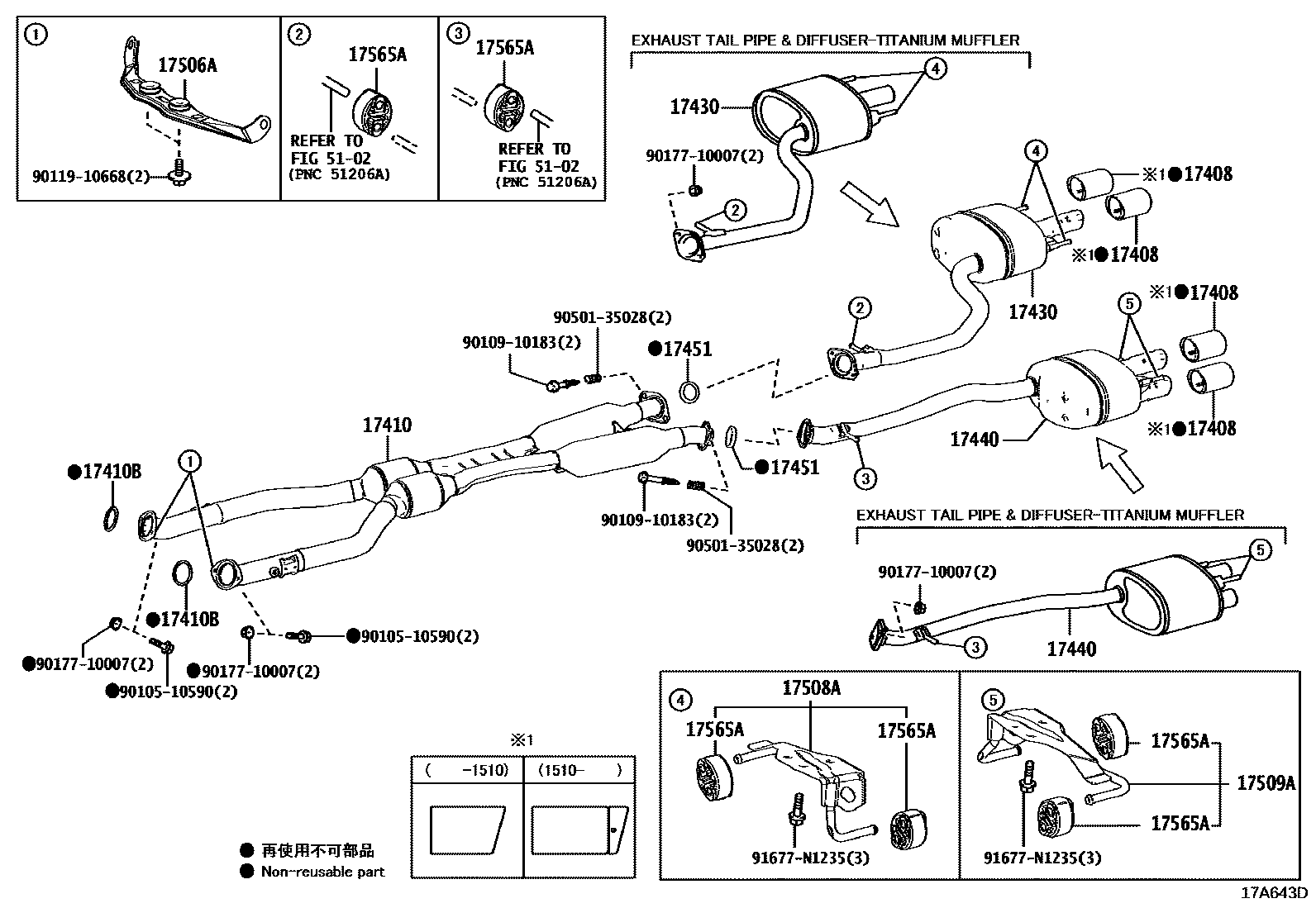

EXHAUST PIPE

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17049-38020i2URGSE..USC10201510-202501

main17408-38010i2URGSE..USC10201409-201510

17410PIPE ASSY, EXHAUST, FRONT

main17410-38510i2URGSE..USC10201409-201711

*114=TOYOTA/PA6/Y

sub17410-38511

main17410-38600i2URGSE..USC10201711-202203

*114=TOYOTA/PB1/Y

sub17410-38601

main17410-38601i2URGSE..USC10202204-202501

*114=TOYOTA/PB1/Y

17410BGASKET, EXHAUST PIPE

main90917-06070i2URGSE..USC10201409-202501

17430PIPE ASSY, EXHAUST, TAIL

main17430-38640i2URGSE..USC10201409-201510

REFER TO PNC 17408

main17430-38660i2URGSE..USC10201510-201902

REFER TO PNC 17408

main17430-38660i2URGSE..USC10201903-202501

17440PIPE, EXHAUST TAIL, LH

main17440-38050i2URGSE..USC10201510-201902

REFER TO PNC 17408

main17440-38050i2URGSE..USC10201903-202501

main17440-38080i2URGSE..USC10201409-201510

REFER TO PNC 17408

17451GASKET, EXHAUST PIPE

main17451-28022i2URGSE..USC10201409-202501

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-38140i2URGSE..USC10201409-202501

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-38150i2URGSE..USC10201409-202501

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-38050i2URGSE..USC10201409-202501

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010i2URGSE..USC10201409-202501

5102

9010510590

main90105-10590

9010910183

main90109-10183

9011910668

main90119-10668

9017710007

main90177-10007

9050135028

main90501-35028

91677N1235

main91677-N1235

17 parts on this diagram · 1 diagram in section
